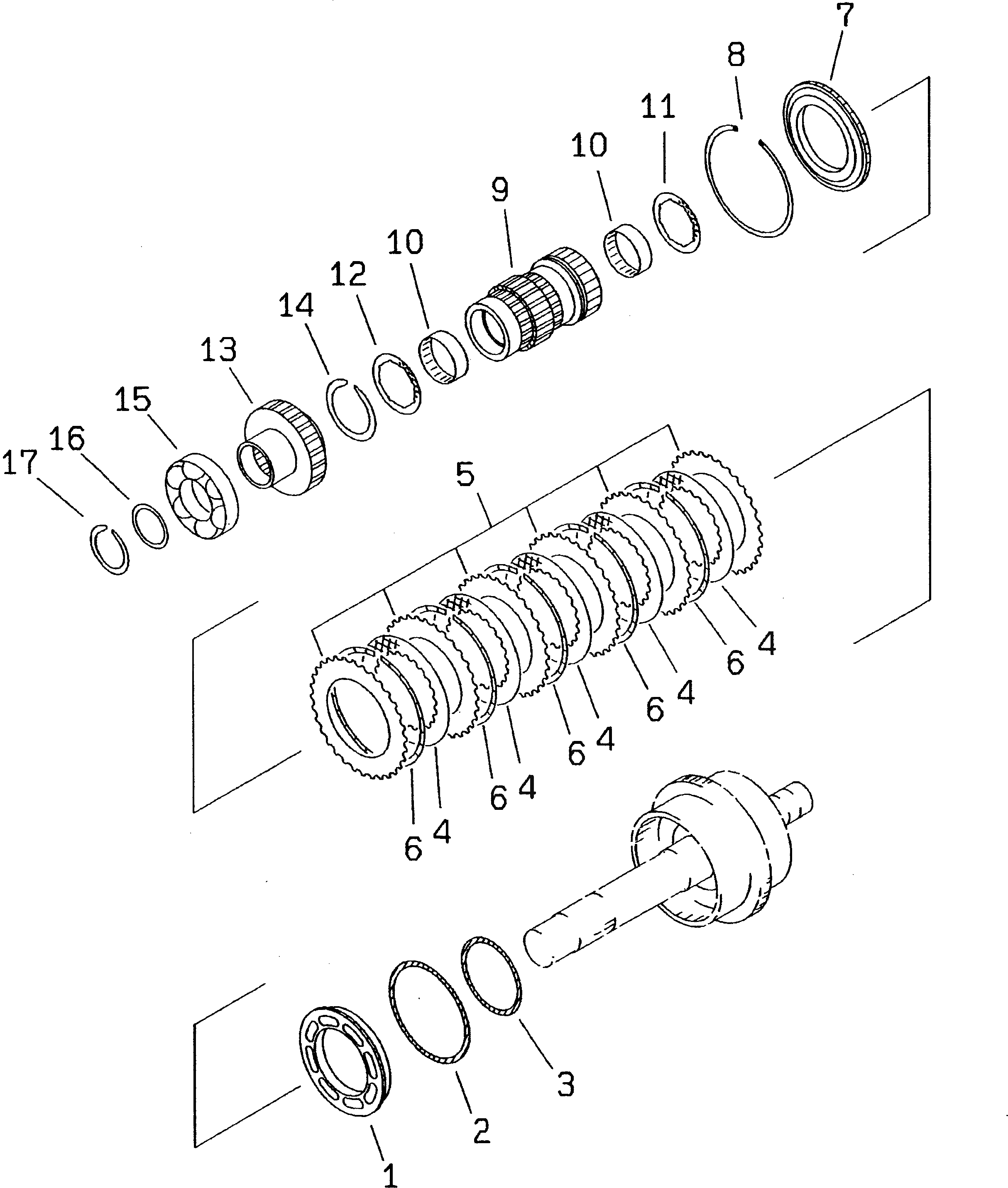

Запчасти Komatsu WA300-3A-X ТРАНСМИССИЯ (1 МУФТА)(№-) ТРАНСМИССИЯ

|1

714-16-10010

TRANSMISSION ASS'Y

SN: 50001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271.

-1шт.

|1

714-16-12020

CLUTCH ASS'Y,1ST AND 3RD

SN: 50001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2223 AND 2224.

-1шт.

1

714-16-12660

PISTON,1ST

SN: 50001-UP

1шт.

2

714-16-19230

RING,SEAL

SN: 50001-UP

1шт.

3

714-16-19210

RING,SEAL

SN: 50001-UP

1шт.

4

714-12-19710

DISC

SN: 50001-UP

5шт.

5

714-16-19730

PLATE,SEPARATE

SN: 50001-UP

6шт.

6

419-15-12133

SPRING,WAVE

SN: 50001-UP

5шт.

7

714-12-12610

PLATE,END

SN: 50001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 50001-UP

1шт.

9

714-12-12430

GEAR¤ 21 TEETH,1ST

SN: 50001-UP

1шт.

10

419-15-12660

BEARING,NEEDLE

SN: 50001-UP

2шт.

11

714-08-19570

WASHER,THRUST

SN: 50001-UP

1шт.

12

714-08-19560

WASHER,THRUST

SN: 50001-UP

1шт.

13

714-12-12510

GEAR¤ 29 TEETH,2ND

SN: 50001-UP

1шт.

14

04066-00062

RING,SNAP

SN: 50001-UP

1шт.

15

714-12-19340

BEARING

SN: 50001-UP

1шт.

16

714-12-12910

SPACER

SN: 50001-UP

1шт.

17

04066-00060

RING,SNAP

SN: 50001-UP

1шт.
