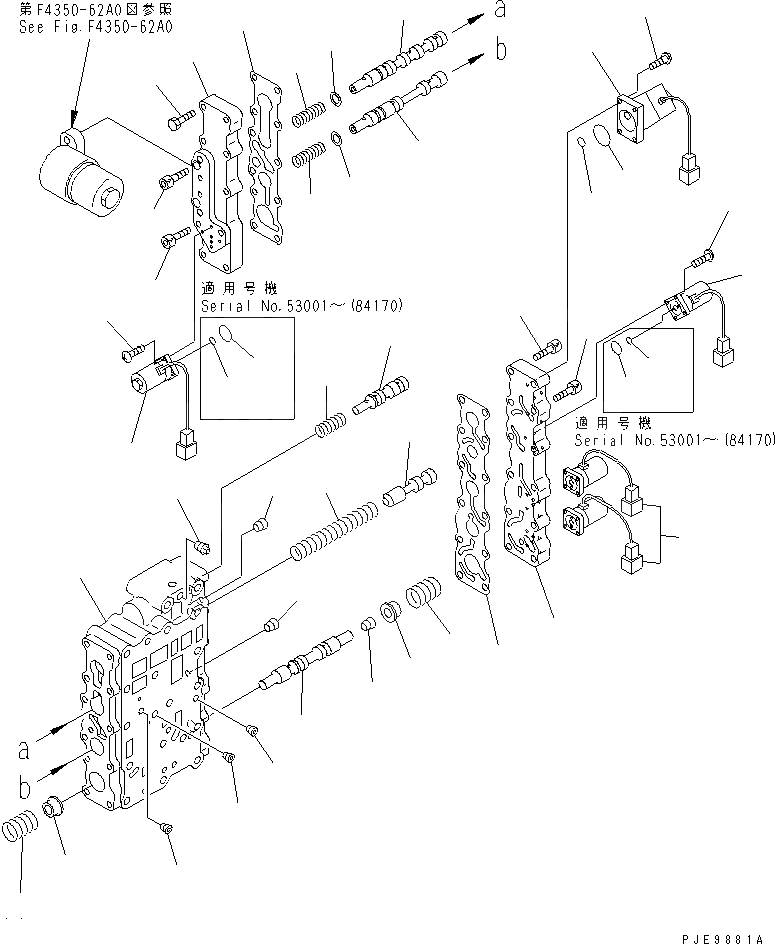

Запчасти Komatsu WA300-3A-SN КЛАПАН УПРАВЛЕНИЯ ТРАНСМИССИЕЙ (/) (НИЖНИЙ КЛАПАН) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

714-16-10012

TRANSMISSION ASS'Y

SN: 54001-UP

1шт.

|1

714-16-10011

TRANSMISSION ASS'Y

SN: 53001-54000

1шт.

|1

714-16-10033

TRANSMISSION ASS'Y,(FOR SNOW REMOVING)

SN: 54001-UP

1шт.

|1

714-16-10032

TRANSMISSION ASS'Y,(FOR SNOW REMOVING)

SN: 53001-54000

1шт.

|$$6

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

|1

714-16-17002

VALVE ASS'Y,T/M ASSY

SN: (84621)-UP

1шт.

|1

0

VALVE ASS'Y,TRANSMISSION

SN: 53001-(84620)

1шт.

|$$9

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-60A0 TO F4350-62A0.

-1шт.

|1

714-16-17020

VALVE ASS'Y,LOWER

SN: 53001-UP

1шт.

1

714-07-16110

BODY,LOWER VALVE

SN: 53001-UP

1шт.

2

714-16-16250

VALVE,PRIORITY

SN: 53001-UP

1шт.

3

714-12-16440

VALVE,F-R

SN: (84673)-UP

1шт.

|3

714-12-16410

VALVE,F-R

SN: 53001-(84672)

1шт.

4

714-12-16420

VALVE,H-L

SN: 53001-UP

1шт.

5

714-12-16330

VALVE,SPEED

SN: 53001-UP

1шт.

6

714-07-16340

VALVE,BRAKE

SN: 53001-UP

1шт.

7

714-07-16620

SLEEVE

SN: 53001-UP

2шт.

8

02720-10104

PLUG

SN: 53001-UP

2шт.

9

419-15-16631

SPACER

SN: 53001-UP

2шт.

10

714-07-16290

SPRING

SN: 53001-UP

1шт.

11

714-07-16370

SPRING

SN: 53001-UP

2шт.

12

714-07-16620

SLEEVE

SN: 53001-UP

2шт.

13

714-07-16380

SPRING

SN: 53001-UP

1шт.

14

419-15-15640

PLUG

SN: 53001-UP

3шт.

15

714-07-16842

COVER,LOWER VALVE

SN: 53001-UP

1шт.

16

714-12-15810

COVER,LOWER VALVE

SN: 53001-UP

1шт.

17

714-07-16950

GASKET (K2)

SN: 53001-UP

1шт.

18

714-07-16960

GASKET (K2)

SN: 53001-UP

1шт.

19

17A-15-17271

SOLENOID VALVE

SN: (84171)-UP

4шт.

|19

0

VALVE ASS'Y,SOLENOID

SN: (53001-(84170))

4шт.

20

714-10-16960

O-RING (K2)

SN: 53001-(84170)

1шт.

21

714-10-16970

O-RING (K2)

SN: 53001-(84170)

1шт.

22

714-07-16730

VALVE ASS'Y,SOLENOID

SN: 53001-UP

1шт.

23

421-06-16510

O-RING (K2)

SN: 53001-UP

1шт.

24

421-06-16520

O-RING (K2)

SN: 53001-UP

1шт.

25

01220-40412

SCREW

SN: 53001-UP

16шт.

26

01220-40416

SCREW

SN: 53001-UP

4шт.

27

415-15-15430

PLUG

SN: 53001-UP

1шт.

28

415-15-15470

PLUG

SN: 53001-UP

2шт.

29

01010-80835

BOLT

SN: 53001-UP

7шт.

30

01252-40845

BOLT

SN: 53001-UP

2шт.

31

01252-40835

BOLT

SN: 53001-UP

12шт.

32

01252-40825

BOLT

SN: 53001-UP

2шт.

33

07042-30108

PLUG

SN: 53001-UP

2шт.
