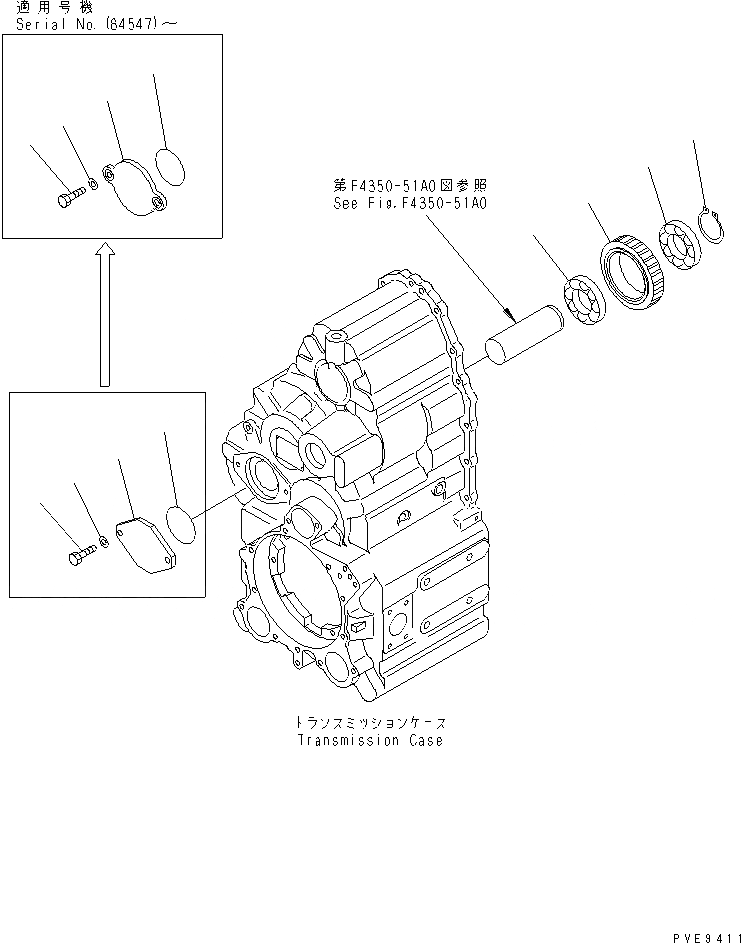

Запчасти Komatsu WA300-3A ТРАНСМИССИЯ (ЛЕНИВЕЦ) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

714-16-10012

TRANSMISSION ASS'Y

SN: 54001-UP

1шт.

|1

714-16-10011

TRANSMISSION ASS'Y

SN: 53001-54000

1шт.

|1

714-16-10033

TRANSMISSION ASS'Y,(FOR SNOW REMOVING)

SN: 54001-UP

1шт.

|1

714-16-10032

TRANSMISSION ASS'Y,(FOR SNOW REMOVING)

SN: 53001-54000

1шт.

|$$6

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

1

714-12-16610

GEAR¤ 34 TEETH,IDLER

SN: 53001-UP

1шт.

2

714-12-19320

BEARING

SN: 53001-UP

2шт.

3

04064-06020

RING,SNAP

SN: 53001-UP

1шт.

4

421-15-13170

COVER

SN: (84547)-UP

1шт.

|4

417-15-14160

COVER

SN: 53001-(84546)

1шт.

5

07000-02105

O-RING (K1)

SN: 53001-UP

1шт.

6

01010-81230

BOLT

SN: (84547)-UP

2шт.

|6

01010-81235

BOLT

SN: 53001-(84546)

2шт.

7

01643-31232

WASHER

SN: 53001-UP

2шт.
