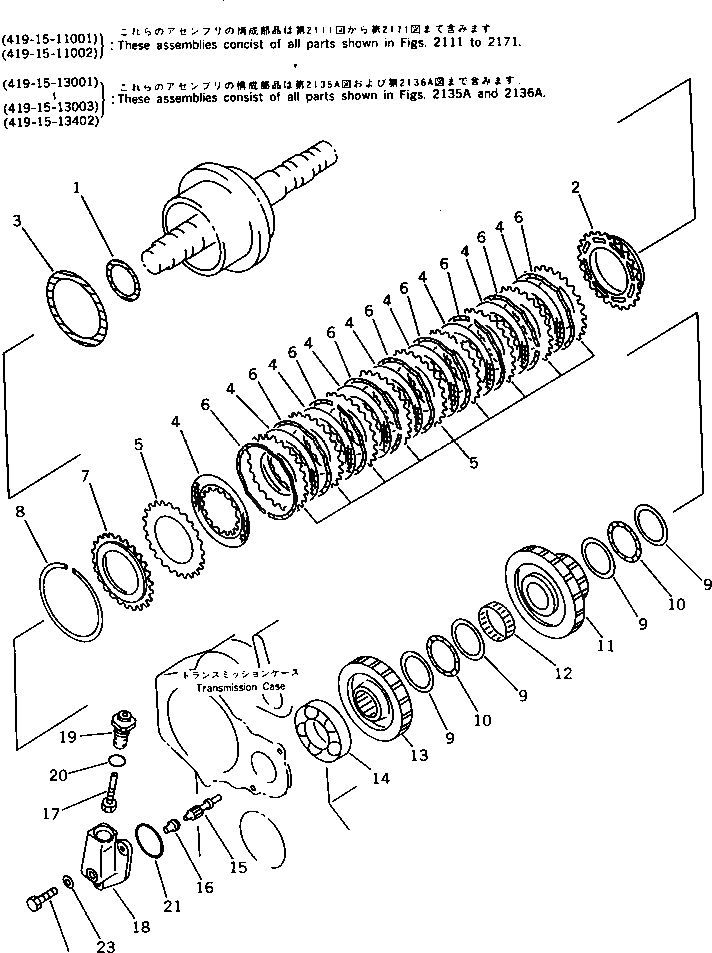

Запчасти Komatsu WA300-1 2 МУФТА(№-) ТРАНСМИССИЯ

|1

419-15-11002

TRANSMISSION ASS'Y

SN: 30001-UP

1шт.

|1

419-15-11001

TRANSMISSION ASS'Y

SN: 20001-29999

1шт.

|1

419-15-13402

CLUTCH ASS'Y,2ND AND 4TH

SN: 30001-UP

1шт.

|1

419-15-13003

CLUTCH ASS'Y,2ND AND 4TH

SN: ..-29999

1шт.

|1

0

CLUTCH ASS'Y,2ND AND 4TH

SN: 20001-..

1шт.

|1

0

CLUTCH ASS'Y,2ND AND 4TH

SN: (20001-.)

1шт.

1

419-15-12210

RING,SEAL

SN: 10001-UP

1шт.

2

419-15-13191

PISTON

SN: 20001-UP

1шт.

3

419-15-12580

RING,SEAL

SN: 10001-UP

1шт.

4

419-15-12290

DISC

SN: 20001-UP

9шт.

5

419-15-12310

PLATE,SEPARATE

SN: 20001-UP

10шт.

6

419-15-12133

SPRING,WAVE

SN: 20001-UP

9шт.

7

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

9

419-15-12680

WASHER,THRUST

SN: 10001-UP

4шт.

10

419-15-12670

BEARING,THRUST

SN: 10001-UP

2шт.

11

419-15-13161

GEAR,2ND

SN: 30001-UP

1шт.

|11

419-15-13160

GEAR,2ND

SN: 10001-29999

1шт.

12

419-15-13150

BEARING,NEEDLE

SN: 10001-UP

1шт.

13

419-15-13410

GEAR

SN: 30001-UP

1шт.

|13

419-15-13140

GEAR

SN: 10001-29999

1шт.

14

419-15-13250

BEARING

SN: 10001-UP

1шт.

15

417-15-13511

GEAR,WORM

SN: 20001-UP

1шт.

16

417-15-13460

BUSHING

SN: 10001-UP

1шт.

17

417-15-13521

GEAR

SN: 20001-UP

1шт.

18

417-15-13452

COVER

SN: 20001-UP

1шт.

19

417-15-13432

SLEEVE

SN: 20001-UP

1шт.

20

07002-02434

O-RING

SN: 20001-UP

1шт.

21

07000-02075

O-RING

SN: 20001-UP

1шт.

22

01010-31235

BOLT

SN: 10001-UP

2шт.

23

01643-31232

WASHER

SN: 10001-UP

2шт.
