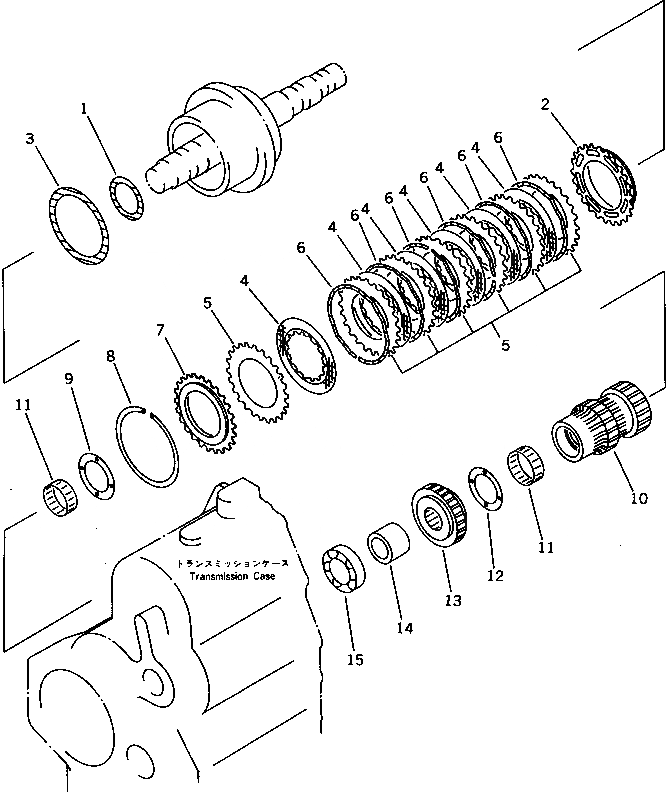

Запчасти Komatsu WA300-1 1 МУФТА(№-) ТРАНСМИССИЯ

|1

419-15-11002

TRANSMISSION ASS'Y

SN: 30001-UP

1шт.

|1

419-15-11001

TRANSMISSION ASS'Y

SN: 20001-29999

1шт.

|1

419-15-12403

CLUTCH ASS'Y,1ST AND 3RD

SN: 20001-UP

1шт.

|1

0

CLUTCH ASS'Y,1ST AND 3RD

SN: (20001-.)

1шт.

1

419-15-12210

RING,SEAL

SN: 10001-UP

1шт.

2

419-15-13191

PISTON

SN: 20001-UP

1шт.

3

419-15-12580

RING,SEAL

SN: 10001-UP

1шт.

4

419-15-12290

DISC

SN: 10001-UP

6шт.

5

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

7шт.

6

419-15-12133

SPRING,WAVE

SN: 20001-UP

6шт.

7

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

9

419-15-12622

WASHER,THRUST

SN: 20001-UP

1шт.

|9

0

WASHER,THRUST

SN: (20001-.)

1шт.

10

419-15-12552

GEAR,1ST

SN: .-UP

1шт.

|10

0

GEAR,1ST

SN: 20001-.

1шт.

11

419-15-12660

BEARING,NEEDLE

SN: 10001-UP

2шт.

12

419-15-12632

WASHER,THRUST

SN: 20001-UP

1шт.

|12

0

WASHER,THRUST

SN: (20001-.)

1шт.

13

419-15-12562

GEAR

SN: .-UP

1шт.

|13

0

GEAR

SN: 20001-.

1шт.

14

419-15-12571

COLLAR

SN: 10001-UP

1шт.

15

419-15-12591

BEARING,ROLLER

SN: 10001-UP

1шт.
