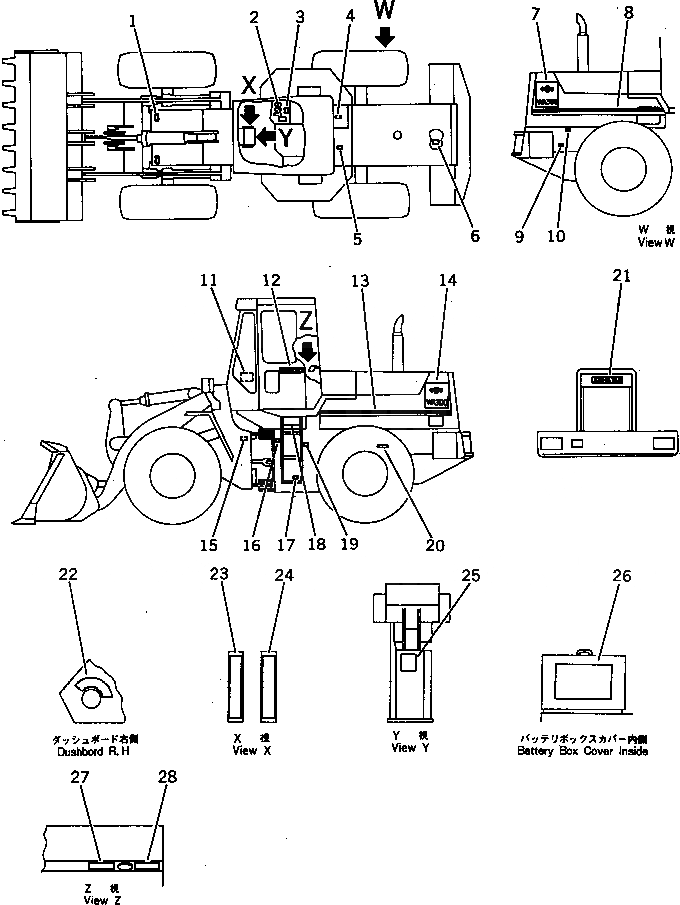

Запчасти Komatsu WA300-1 МАРКИРОВКА (ИСПАНИЯ И АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-V00-1250

PLATE, OPERATING,LIFTING EYE

SN: 10001-UP

2шт.

2

421-93-11132

PLATE, OPERATING,WORK EQUIPMENT CONTROL LEVER

SN: 10001-UP

1шт.

3

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

4

419-V00-1170

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

5

09653-01000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

6

09668-01000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

7

419-93-11871

PLATE, MARK

SN: 10001-UP

1шт.

8

419-93-11880

STRIPE

SN: 10001-UP

1шт.

9

09101-01000

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

10

419-V00-1140

PLATE, CAUTION,COOLING FAN

SN: 10001-UP

1шт.

11

419-V00-1240

PLATE, OPERATING,MONITOR PANEL

SN: 10001-UP

1шт.

12

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-UP

2шт.

13

419-93-11880

STRIPE

SN: 10001-UP

1шт.

14

419-93-11871

PLATE, MARK

SN: 10001-UP

1шт.

15

09602-11635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

15

04418-13060

SCREW

SN: 10001-UP

4шт.

16

419-V00-1230

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

2шт.

17

419-V00-1130

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

18

419-V00-1110

CHART, OIL

SN: 10001-UP

1шт.

19

419-V00-1160

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-UP

1шт.

20

419-V00-1250

PLATE, OPERATING,LIFTING EYE

SN: 10001-UP

2шт.

21

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

22

09683-11050

PLATE, OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

23

419-V00-1190

PLATE, OPERATING,FUSE

SN: 10001-UP

1шт.

24

419-V00-1180

PLATE, OPERATING,FUSE

SN: 10001-UP

1шт.

25

419-V00-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

26

419-V00-1220

PLATE, CAUTION,BATTERY

SN: 10001-UP

2шт.

27

419-V00-1120

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

28

419-V00-1260

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: .-UP

1шт.

28

0

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-.

1шт.
