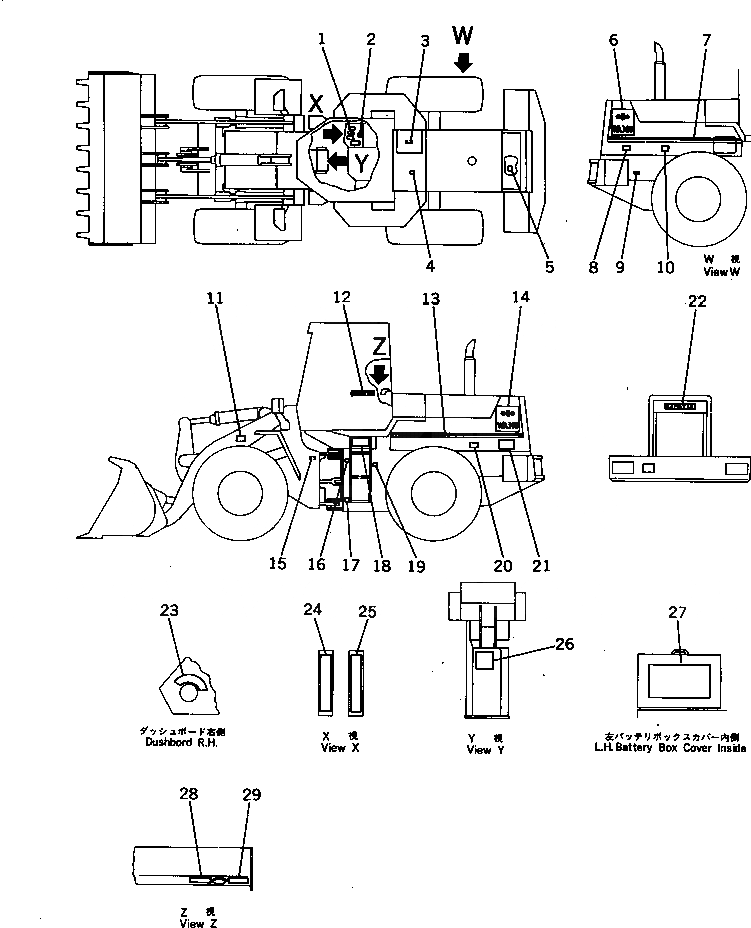

Запчасти Komatsu WA300-1 МАРКИРОВКА (ГЕРМАН.) (TBG/ABE СПЕЦ-Я.)(№-9999) СПЕЦ. APPLICATION ЧАСТИ
№
Артикул
Название
Примечание
Количество
1
421-93-11132
PLATE, OPERATING,WORK EQUIPMENT CONTROL LEVER
SN: 10001-19999
1шт.
2
09685-00004
PLATE, OPERATING,LOCK LEVER
SN: 10001-19999
1шт.
3
419-93-11571
PLATE, CAUTION,BRAKE OIL
SN: 10001-19999
1шт.
4
09653-02000
PLATE, SAFETY,HYDRAULIC TANK
SN: 10001-19999
1шт.
5
09668-02000
PLATE, SAFETY,RADIATOR CAP
SN: 10001-19999
1шт.
6
419-93-11871
PLATE, MARK
SN: 10001-19999
1шт.
7
419-93-11880
STRIPE
SN: 10001-19999
1шт.
8
20T-98-22240
PLATE, SAFETY,KEEP OUT
SN: 10001-19999
1шт.
9
09101-02000
PLATE, CAUTION,FUEL
SN: 10001-19999
1шт.
10
20T-98-22230
PLATE, CAUTION,SIDE PANEL
SN: 10001-19999
1шт.
11
20T-98-22240
PLATE, SAFETY,KEEP OUT
SN: 10001-19999
2шт.
12
09690-50280
PLATE, MARK,KOMATSU
SN: 10001-19999
2шт.
13
419-93-11880
STRIPE
SN: 10001-19999
1шт.
14
419-93-11871
PLATE, MARK
SN: 10001-19999
1шт.
15
09602-23635
PLATE, NAME,(LIMITED SUPPLY)
SN: 10001-19999
1шт.
16
362-98-11620
PLATE, CAUTION,KEEP OUT
SN: 10001-19999
2шт.
17
362-98-11160
PLATE, CAUTION,FRAME LOCK
SN: 10001-19999
1шт.
18
419-93-11510
CHART, OIL
SN: 10001-19999
1шт.
19
419-93-11541
PLATE, CAUTION,TRANSMISSION OIL LEVEL
SN: 10001-19999
1шт.
20
20T-98-22230
PLATE, CAUTION,SIDE PANEL
SN: 10001-19999
1шт.
21
20T-98-22240
PLATE, SAFETY,KEEP OUT
SN: 10001-19999
1шт.
22
09690-50400
PLATE, MARK,KOMATSU
SN: 10001-19999
1шт.
23
09683-21150
PLATE, OPERATING,STARTING SWITCH
SN: 10001-19999
1шт.
24
419-93-11591
PLATE, OPERATING,FUSE
SN: 10001-19999
1шт.
25
419-93-11381
PLATE, OPERATING,FUSE
SN: 10001-19999
1шт.
26
419-93-11520
PLATE, SAFETY,STARTING AND AFTER OPERATING
SN: 10001-19999
1шт.
27
419-93-11630
PLATE, CAUTION,BATTERY
SN: 10001-19999
1шт.
28
362-98-11150
PLATE, CAUTION,STARTING AND INSPECTION
SN: 10001-19999
1шт.
29
419-93-11531
PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE
SN: 10001-19999
1шт.
Выбрано товаров: 30
