Артикул
Название
Примечание
Количество
|$3
362-17-41402
PUMP ASS'Y,(A4VG28DA-929-0)
SN: 21158-UP
1шт.
|$4
362-17-41401
PUMP ASS'Y,(A4VG28DA-964-1)
SN: 18970-21157
1шт.
|$5
362-17-41300
PUMP ASS'Y,(A4VG28DA-964-0)
SN: 17840-18969
1шт.
|$$4

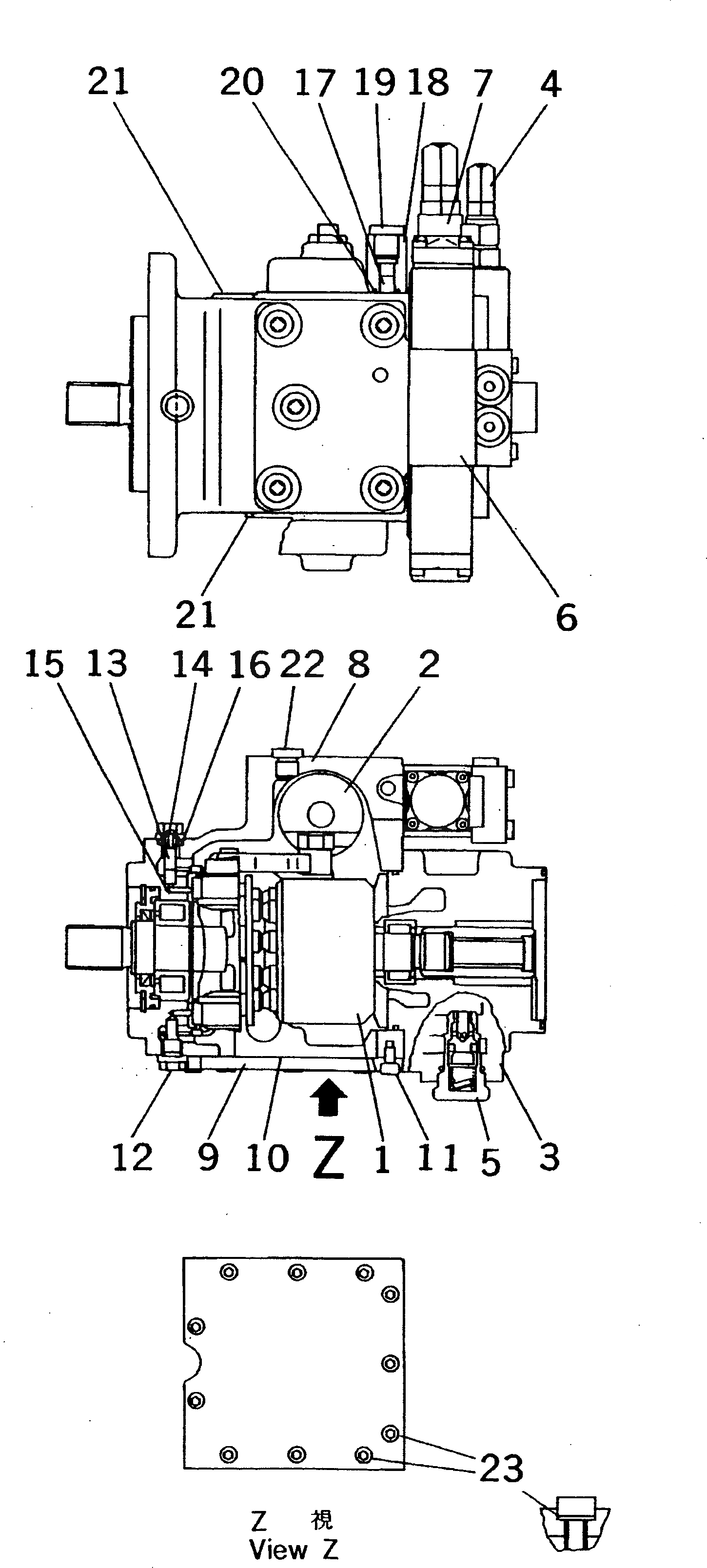

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-01A0C TO Y1610-07A0B .
-1шт.
|$$5
THE UCHIDA YUATSU KIKI PART NUMBER IS THAT UC IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.
-1шт.
|$8
UCBA041S9146-0
PUMP ASS'Y,PISTON
SN: 21158-UP
1шт.
|$9
UCB1043R9574-0
PUMP ASS'Y,PISTON
SN: 17840-21157
1шт.
|$$8
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-02A0B TO Y1610-06A0A .
-1шт.
1
UC4704375889
ROTARY ASS'Y
SN: 17840-UP
1шт.
2
UC4704340893
CYLINDER ASS'Y,LEANING
SN: 17840-UP
1шт.
3
UC4100571211
COVER ASS'Y
SN: 21158-UP
1шт.
3
0
COVER ASS'Y
SN: 17840-21157
1шт.
4
UC4100368143
RELIEF VALVE ASS'Y,HIGH PRESSURE
SN: 21158-UP
2шт.
4
UC4100441055
RELIEF VALVE ASS'Y,HIGH PRESSURE
SN: 17840-21157
2шт.
5
UC4704336674
RELIEF VALVE ASS'Y,LOW PRESSURE
SN: 21158-UP
1шт.
5
UC4100441073
RELIEF VALVE ASS'Y,LOW PRESSURE
SN: 17840-21157
1шт.
6
0
CONTROL VALVE ASS'Y
SN: 17840-UP
1шт.
7
UC4100368152
DA CURTRIDGE ASS'Y
SN: 21158-UP
1шт.
7
UC4100441082
DA CURTRIDGE ASS'Y
SN: 17840-21157
1шт.
8
UC1100355618
HOUSING
SN: 17840-UP
1шт.
8
0
HOUSING
SN: 17840-UP
1шт.
9
UC1704260763
COVER
SN: 17840-UP
1шт.
10
UC1704352779
PACKING
SN: 17840-UP
1шт.
11
01252-30612
BOLT
SN: 17840-UP
11шт.
12
UC1100389629
PLUG
SN: 17840-UP
2шт.
13
UC1704142279
PIN
SN: 17840-UP
2шт.
14
UC1700023809
SPRING
SN: 17840-UP
2шт.
15
UC1302193049
PIN,SPRING
SN: 17840-UP
2шт.
16
02891-02009
O-RING
SN: 17840-UP
2шт.
17
UC1100362276
PIN
SN: 17840-UP
1шт.
18
UC1100357779
NUT
SN: 17840-UP
1шт.
19
UC1701516926
PLUG
SN: 17840-UP
1шт.
20
UC1301177009
O-RING
SN: 17840-UP
1шт.
22
UC1607054546
PLUG
SN: 17840-21157
5шт.
23
UC1700843025
SEAL
SN: 17840-UP
2шт.
Выбрано товаров: 38
