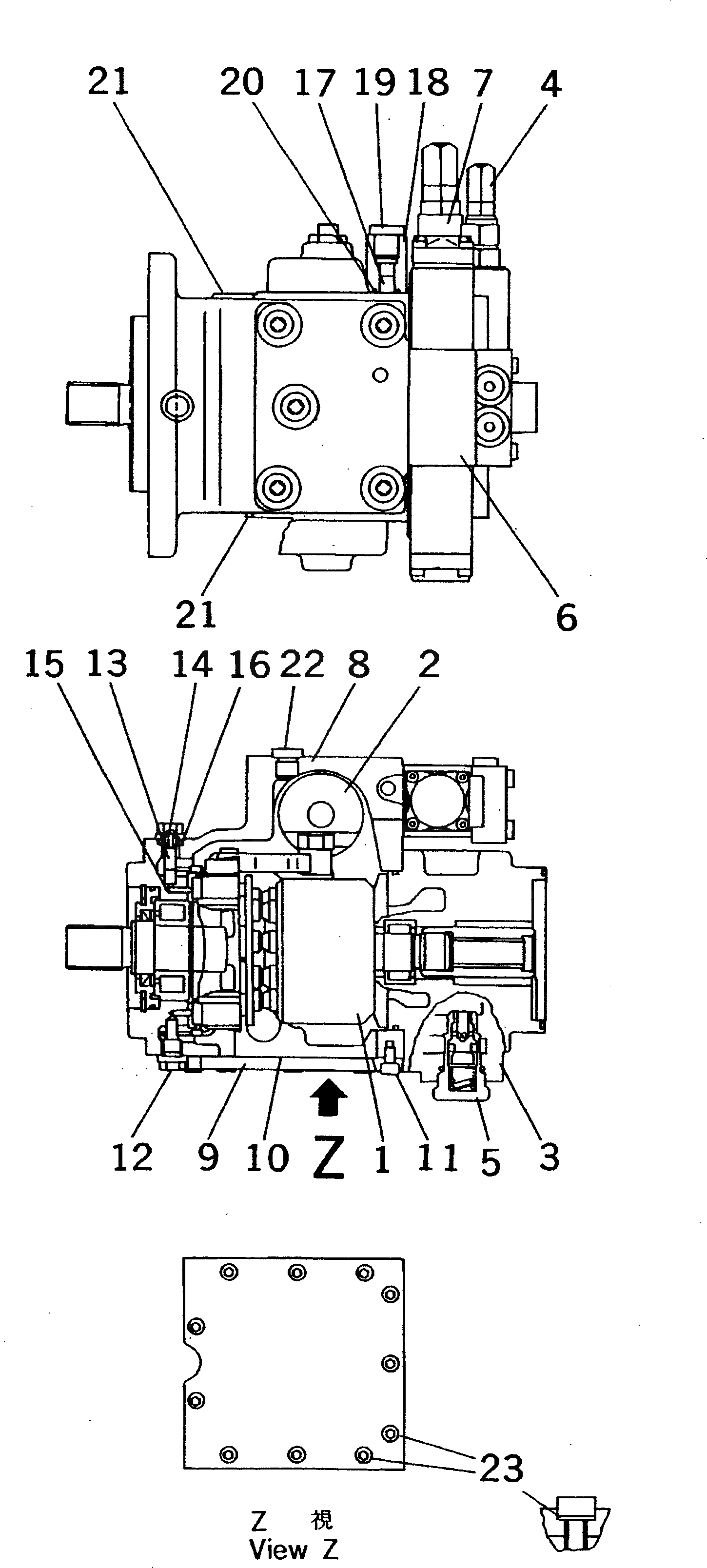

Запчасти Komatsu WA30-5 ОСНОВН. НАСОС (ПОРШЕНЬ НАСОС ВНУТР. ЧАСТИ)(№78-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$3

362-17-41402

PUMP ASS'Y,(A4VG28DA-929-0)

SN: 21158-UP

1шт.

|$4

362-17-41401

PUMP ASS'Y,(A4VG28DA-964-1)

SN: 18970-21157

1шт.

|$5

362-17-41300

PUMP ASS'Y,(A4VG28DA-964-0)

SN: 17840-18969

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-01A0C TO Y1610-07A0B .

-1шт.

|$$5

THE UCHIDA YUATSU KIKI PART NUMBER IS THAT UC IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

|$8

UCBA041S9146-0

PUMP ASS'Y,PISTON

SN: 21158-UP

1шт.

|$9

UCB1043R9574-0

PUMP ASS'Y,PISTON

SN: 17840-21157

1шт.

|$$8

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-02A0B TO Y1610-06A0A .

-1шт.

1

UC4704375889

ROTARY ASS'Y

SN: 17840-UP

1шт.

2

UC4704340893

CYLINDER ASS'Y,LEANING

SN: 17840-UP

1шт.

3

UC4100571211

COVER ASS'Y

SN: 21158-UP

1шт.

3

0

COVER ASS'Y

SN: 17840-21157

1шт.

4

UC4100368143

RELIEF VALVE ASS'Y,HIGH PRESSURE

SN: 21158-UP

2шт.

4

UC4100441055

RELIEF VALVE ASS'Y,HIGH PRESSURE

SN: 17840-21157

2шт.

5

UC4704336674

RELIEF VALVE ASS'Y,LOW PRESSURE

SN: 21158-UP

1шт.

5

UC4100441073

RELIEF VALVE ASS'Y,LOW PRESSURE

SN: 17840-21157

1шт.

6

0

CONTROL VALVE ASS'Y

SN: 17840-UP

1шт.

7

UC4100368152

DA CURTRIDGE ASS'Y

SN: 21158-UP

1шт.

7

UC4100441082

DA CURTRIDGE ASS'Y

SN: 17840-21157

1шт.

8

UC1100355618

HOUSING

SN: 17840-UP

1шт.

8

0

HOUSING

SN: 17840-UP

1шт.

9

UC1704260763

COVER

SN: 17840-UP

1шт.

10

UC1704352779

PACKING

SN: 17840-UP

1шт.

11

01252-30612

BOLT

SN: 17840-UP

11шт.

12

UC1100389629

PLUG

SN: 17840-UP

2шт.

13

UC1704142279

PIN

SN: 17840-UP

2шт.

14

UC1700023809

SPRING

SN: 17840-UP

2шт.

15

UC1302193049

PIN,SPRING

SN: 17840-UP

2шт.

16

02891-02009

O-RING

SN: 17840-UP

2шт.

17

UC1100362276

PIN

SN: 17840-UP

1шт.

18

UC1100357779

NUT

SN: 17840-UP

1шт.

19

UC1701516926

PLUG

SN: 17840-UP

1шт.

20

UC1301177009

O-RING

SN: 17840-UP

1шт.

21

UC1100350071

PLUG

SN: 17840-21157

2шт.

21

418-62-11620

O-RING

SN: 17840-21157

1шт.

22

UC1607054546

PLUG

SN: 17840-21157

5шт.

22

416-62-11480

O-RING

SN: 17840-21157

1шт.

23

UC1700843025

SEAL

SN: 17840-UP

2шт.
