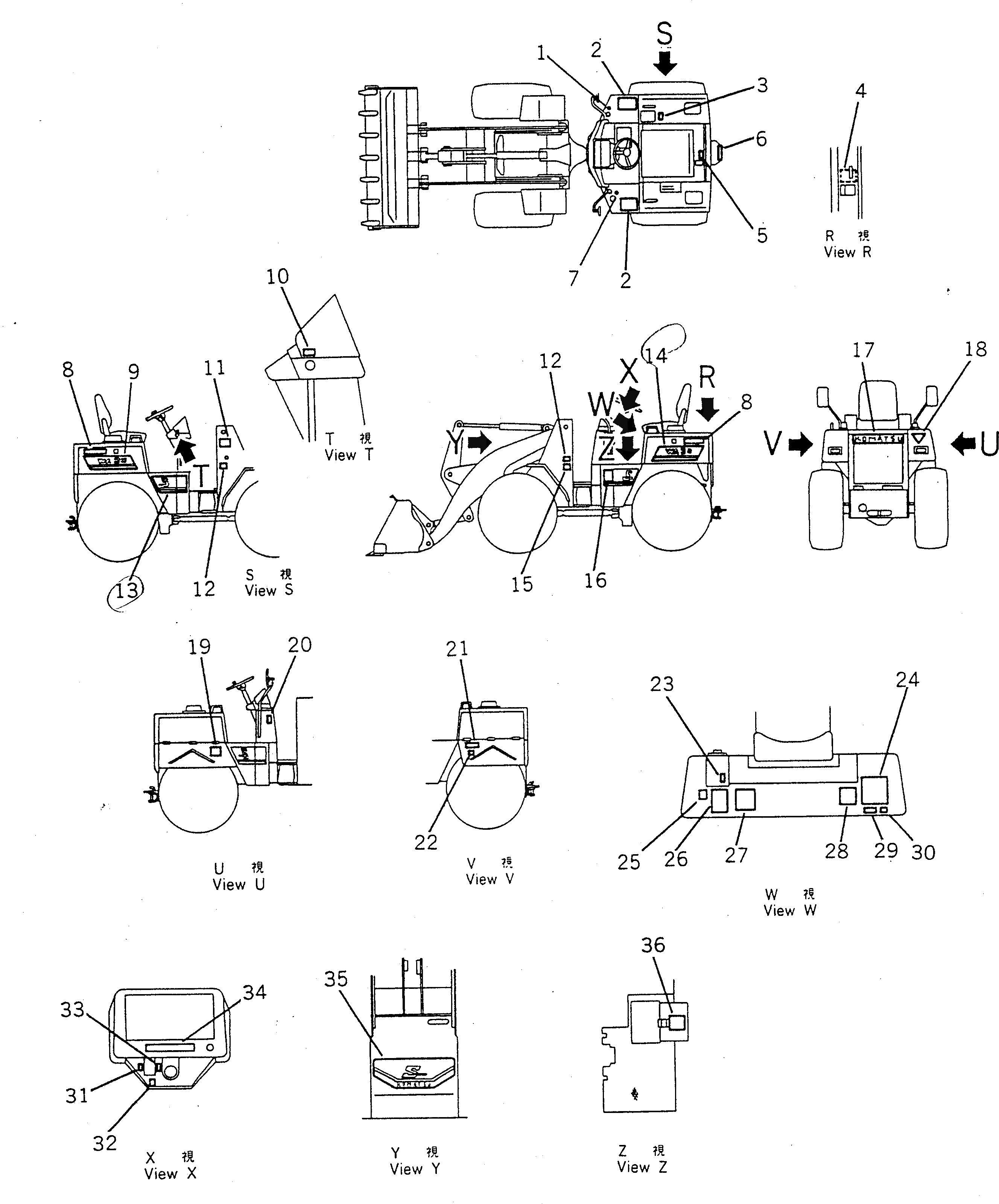

Запчасти Komatsu WA30-3 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09669-00003

PLATE¤ CAUTION,HYDRAULIC OIL

SN: 9001-UP

1шт.

2

362-54-38320

SEAT,NONSKID

SN: 9001-UP

2шт.

3

362-54-27140

PLATE¤ OPERATING,WORK EQUIPMENT CONTROL LEVER

SN: 9001-UP

1шт.

4

363-54-28210

PLATE¤ CAUTION,HOOD

SN: 9001-UP

1шт.

5

362-54-17180

PLATE¤ CAUTION,ENGINE OPERATION

SN: 9001-UP

1шт.

6

362-54-38330

SEAT,NONSKID

SN: 9001-UP

1шт.

7

09669-00002

PLATE¤ CAUTION,FUEL OIL

SN: 9001-UP

1шт.

8

20Y-00-11481

PLATE¤ MARK,AVANCE

SN: 9001-UP

2шт.

9

362-54-38171

PLATE¤ MARK,WA30

SN: 9001-UP

1шт.

10

362-54-38150

PLATE¤ OPERATING,STARTING SWITCH

SN: 9001-UP

1шт.

11

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 9001-UP

1шт.

|11

04418-13060

SCREW

SN: 9001-UP

4шт.

12

362-54-17260

PLATE¤ CAUTION,INSPECTION AND MAINTENANCE

SN: 9001-UP

2шт.

13

362-54-38221

PLATE¤ MARK

SN: 9001-UP

1шт.

14

362-54-38161

PLATE¤ MARK,WA30

SN: 9001-UP

1шт.

15

362-54-17160

PLATE¤ CAUTION,ARTICURATE LOCK

SN: 9001-UP

1шт.

16

362-54-38211

PLATE¤ MARK

SN: 9001-UP

1шт.

17

09690-50500

PLATE¤ MARK,KOMATSU

SN: 9001-UP

1шт.

18

362-54-38191

PLATE¤ MARK

SN: 9001-UP

1шт.

19

09655-00120

PLATE¤ INSTRUCTION,OIL FILTER

SN: 9001-UP

1шт.

20

362-54-38130

PLATE,KOGATA TOKUSHU

SN: 9001-UP

1шт.

21

363-54-28230

PLATE¤ CAUTION,AIR CLEANER

SN: 9001-UP

1шт.

22

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

SN: 9001-UP

1шт.

23

09685-00002

PLATE¤ OPERATING,WORK EQUIPMENT LOCK LEVER

SN: 9001-UP

1шт.

24

362-54-38110

CHART¤ OIL

SN: 9001-UP

1шт.

25

09653-00110

PLATE¤ SAFETY,HYDRAULIC TANK CAP

SN: 9001-UP

1шт.

26

362-54-38140

PLATE

SN: 9001-UP

1шт.

27

362-54-17140

PLATE¤ CAUTION,STARTING AND AFTER OPERATING

SN: 9001-UP

1шт.

28

362-54-17150

PLATE¤ CAUTION,BEFORE OPERATING

SN: 9001-UP

1шт.

29

363-54-28250

PLATE¤ CAUTION,HOSE MAINTENANCE

SN: 9001-UP

1шт.

30

09652-01121

PLATE¤ CAUTION,FUEL TANK WATER DRAIN

SN: 9001-UP

1шт.

31

363-54-28140

PLATE¤ OPERATING,SPEED CONTROL

SN: 9001-UP

1шт.

32

363-54-28190

PLATE¤ OPERATING,TRANSMISSION LOCK LEVER

SN: 9001-UP

1шт.

33

363-54-28150

PLATE¤ OPERATING,TRANSMISSION F-R

SN: 9001-UP

1шт.

34

363-54-28240

PLATE¤ MARK,SYMBOL

SN: 9001-UP

1шт.

35

362-54-38181

PLATE¤ MARK,SILENT

SN: 9001-UP

1шт.

36

363-54-28220

PLATE¤ CAUTION,BRAKE OIL

SN: 9001-UP

1шт.
