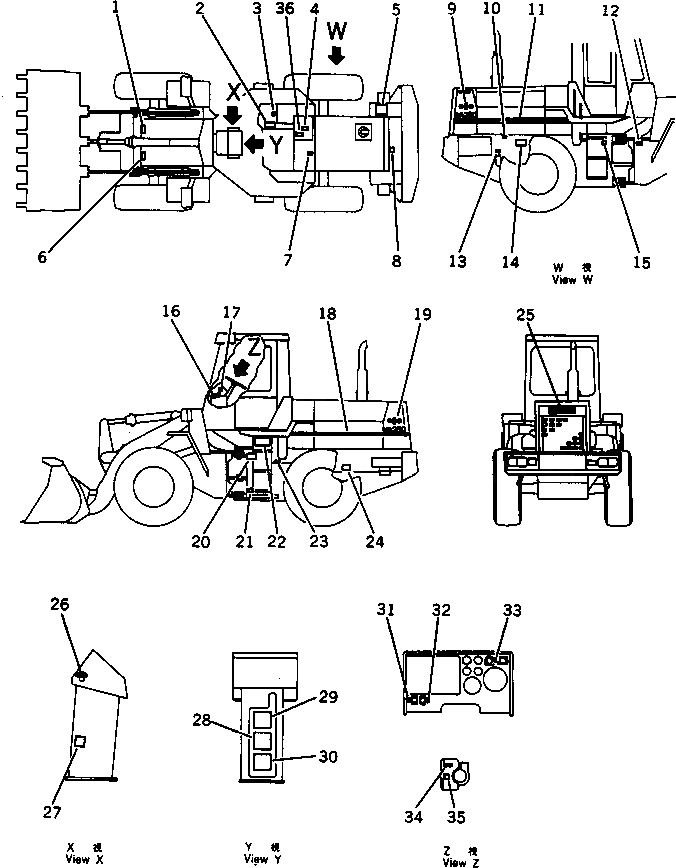

Запчасти Komatsu WA250-1 МАРКИРОВКА (АРАБСК.) (ДЛЯ CLUSTER GAUGE ТИП) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-V01-1310

PLATE, CAUTION,LIFT HERE

SN: 10001-UP

1шт.

2

421-93-11132

PLATE, OPERATING,LOADER CONTROL

SN: 10001-UP

1шт.

3

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

4

419-V01-1180

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

5

418-V01-1120

PLATE, CAUTION,BATTERY

SN: 10001-UP

1шт.

6

419-V01-1310

PLATE, CAUTION,LIFT HERE

SN: 10001-UP

1шт.

7

09653-00200

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

8

09668-00200

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

9

418-93-11350

PLATE, MARK

SN: 10001-UP

1шт.

10

419-V01-1140

PLATE, CAUTION,COOLING FAN

SN: 10001-UP

1шт.

11

418-93-11160

STRIPE

SN: 10001-UP

1шт.

12

418-V01-1220

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

12

04418-13060

SCREW

SN: 10001-UP

4шт.

13

09101-00200

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

14

419-V01-1310

PLATE, CAUTION,LIFT HERE

SN: 10001-UP

1шт.

15

09162-13000

PLATE, SAFETY,KEEP OUT

SN: 10001-UP

1шт.

16

419-V01-1320

PLATE,FUSE BOX

SN: 10001-UP

1шт.

17

417-V01-1130

PLATE, OPERATING,PARKING LAMP

SN: 10001-UP

1шт.

18

418-93-11160

STRIPE

SN: 10001-UP

1шт.

19

418-93-11350

PLATE, MARK

SN: 10001-UP

1шт.

20

419-V01-1160

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

21

419-V01-1130

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

22

418-V01-1210

CHART, OIL

SN: 10001-UP

1шт.

23

419-V01-1170

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-UP

1шт.

24

419-V01-1310

PLATE, CAUTION,LIFT HERE

SN: 10001-UP

1шт.

25

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

26

09683-02050

PLATE, OPERATING,MAIN SWITCH

SN: 10001-UP

1шт.

27

419-93-11670

PLATE, CAUTION,ENGINE STOP

SN: 10001-UP

1шт.

28

419-V01-1120

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

29

419-V01-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

30

419-V01-1190

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

31

419-V01-1270

PLATE,TRANSMISSION CUT OFF SWITCH

SN: 10001-UP

1шт.

32

419-V01-1260

PLATE, OPERATING,WORK LAMP SWITCH

SN: 10001-UP

1шт.

33

417-V01-1140

PLATE, OPERATING,HEAD LAMP SWITCH

SN: 10001-UP

1шт.

34

419-V01-1280

PLATE, OPERATING,TRANSMISSION CONTROL LEVER

SN: 10001-UP

1шт.

35

09685-00003

PLATE, OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

36

419-V01-1390

PLATE, CAUTION,ENGINE OIL

SN: 10001-UP

1шт.
