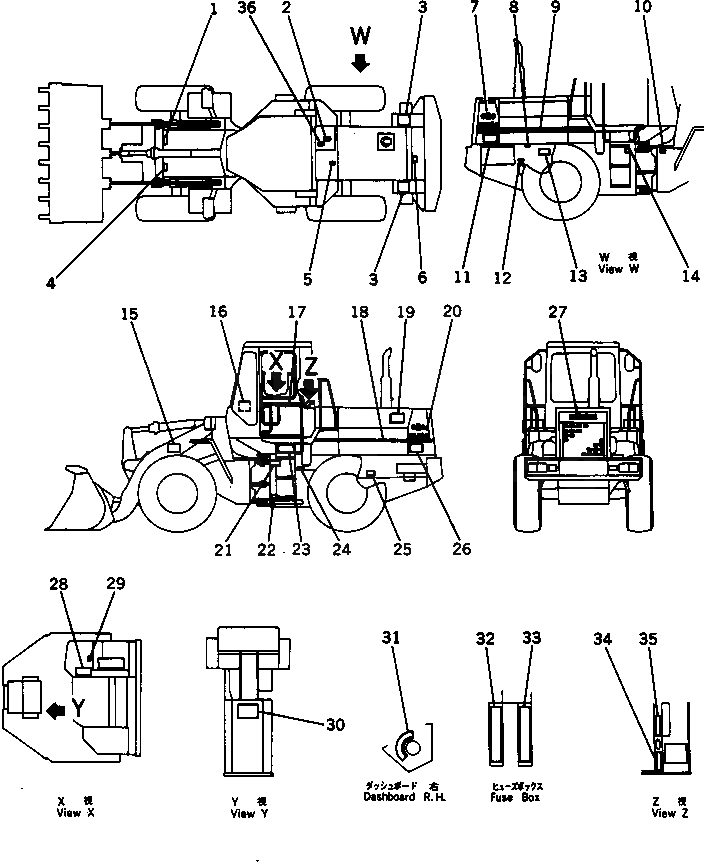

Запчасти Komatsu WA250-1 MARK И PALTES (ГЕРМАН.) (TBG/ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ

1

419-93-11930

PLATE, CAUTION,LIFT HERE

SN: 10001-UP

1шт.

2

419-93-11571

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

3

416-93-11450

PLATE, CAUTION,BATTERY

SN: 10001-UP

2шт.

4

419-93-11930

PLATE, CAUTION,LIFT HERE

SN: 10001-UP

1шт.

5

09653-02000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

6

09668-02000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

7

418-93-11350

PLATE, MARK

SN: 10001-UP

1шт.

8

20T-98-22330

PLATE, SAFETY,SIDE PANEL OPEN

SN: 10001-UP

1шт.

9

418-93-11160

STRIPE

SN: 10001-UP

1шт.

10

09602-25635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

10

04418-13060

SCREW

SN: 10001-UP

4шт.

11

419-93-11950

PLATE, CAUTION

SN: 10001-UP

1шт.

12

09101-02000

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

13

419-93-11930

PLATE, CAUTION,LIFT HERE

SN: 10001-UP

1шт.

14

362-98-11620

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

15

419-93-11950

PLATE, CAUTION

SN: 10001-UP

2шт.

16

419-93-11920

PLATE, OPERATING,MONITOR

SN: 10001-UP

1шт.

17

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-UP

2шт.

18

418-93-11160

STRIPE

SN: 10001-UP

1шт.

19

20T-98-22330

PLATE, SAFETY,SIDE PANEL OPEN

SN: 10001-UP

1шт.

20

418-93-11350

PLATE, MARK

SN: 10001-UP

1шт.

21

362-98-11620

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

22

362-98-11160

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

23

418-93-11371

CHART, OIL

SN: 10001-UP

1шт.

24

419-93-11541

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-UP

1шт.

25

419-93-11930

PLATE, CAUTION,LIFT HERE

SN: 10001-UP

1шт.

26

419-93-11950

PLATE, CAUTION

SN: 10001-UP

1шт.

27

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

28

421-93-11132

PLATE, OPERATING,LOADER CONTROL

SN: 10001-UP

1шт.

29

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

30

419-93-11521

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

31

09683-21150

PLATE, OPERATING,MAIN SWITCH

SN: 10001-UP

1шт.

32

419-93-11591

PLATE, OPERATING,FUSE BOX

SN: 10001-UP

1шт.

33

419-93-11581

PLATE, OPERATING,FUSE BOX

SN: 10001-UP

1шт.

34

419-93-11990

PLATE, CAUTION,OIL PRESSURE

SN: 10001-UP

1шт.

35

362-98-11150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

36

419-93-11720

PLATE

SN: 10200-UP

1шт.
