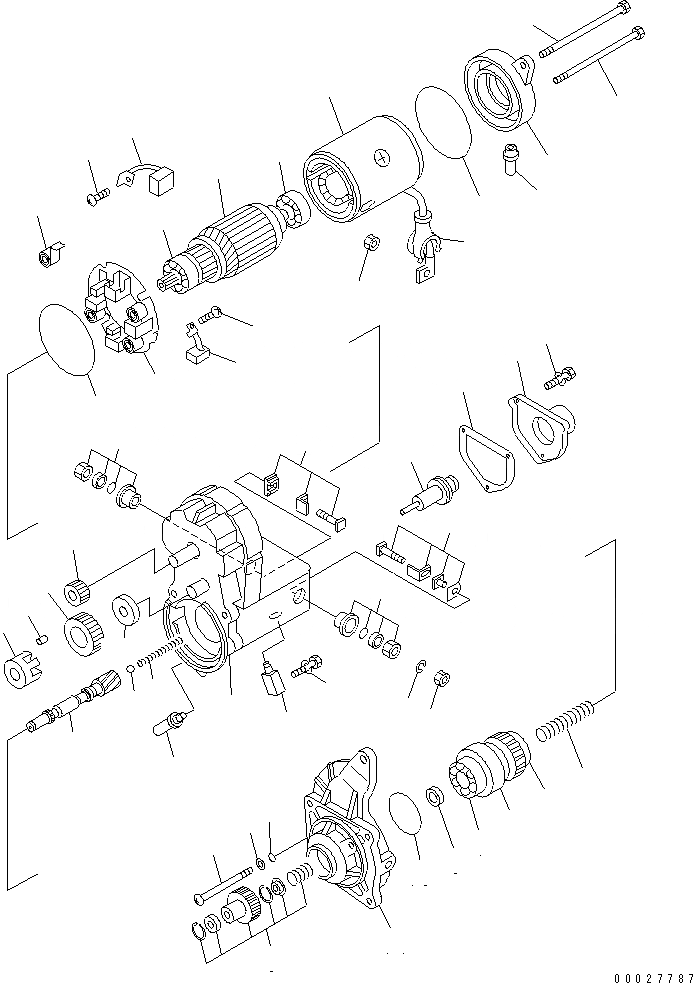

Запчасти Komatsu WA200PZ-6 СТАРТЕР (.KW) (ВНУТР. ЧАСТИ) (ESN -) AA ДВИГАТЕЛЬ

|$1

600-863-5111

STARTING MOTOR ASSEMBLY,(5.5KW)

SN: 26512630-UP

1шт.

1

ND028100-5410

YOKE ASSEMBLY

SN: 26512630-UP

1шт.

2

ND028200-5250

ARMATURE ASSEMBLY

SN: 26512630-UP

1шт.

3

ND949100-3161

BEARING,BALL

SN: 26512630-UP

1шт.

3

ND949100-5290

BEARING,BALL

SN: 26512630-UP

1шт.

4

ND949100-3540

BEARING,BALL

SN: 26512630-UP

1шт.

|$8

ND028300-6551

CLUTCH ASSEMBLY

SN: 26512630-UP

1шт.

5

ND028099-3270

STARTER KIT

SN: 26512630-UP

1шт.

6

ND028300-6751

CLUTCH ASSEMBLY

SN: 26512630-UP

1шт.

7

ND949100-4501

BEARING,BALL, FRONT

SN: 26512630-UP

1шт.

8

ND949100-1920

BEARING,BALL, REAR

SN: 26512630-UP

1шт.

9

ND949170-4040

SPRING

SN: 26512630-UP

1шт.

10

ND028381-0071

SHAFT

SN: 26512630-UP

1шт.

11

ND128401-5621

HOUSING

SN: 26512630-UP

1шт.

12

ND153400-6740

SWITCH ASSEMBLY,MAGNETIC

SN: 26512630-UP

1шт.

13

ND128099-5770

KIT,STARTER

SN: 26512630-UP

1шт.

14

ND028099-5100

KIT,STARTER

SN: 26512630-UP

1шт.

15

ND053660-0443

PLUNGER

SN: 26512630-UP

1шт.

16

ND053404-0240

GASKET

SN: 26512630-UP

1шт.

17

ND053505-0290

COVER,SOLENOID

SN: 26512630-UP

1шт.

18

ND053480-7560

BOLT ASSEMBLY,TERMINAL

SN: 26512630-UP

1шт.

19

ND949047-4440

BOLT

SN: 26512630-UP

3шт.

20

ND028065-0250

BUSHING,DRAIN

SN: 26512630-UP

1шт.

21

ND028510-0880

HOLDER ASSEMBLY,BRUSH

SN: 26512630-UP

1шт.

22

ND028520-0011

SPRING,BRUSH

SN: 26512630-UP

4шт.

23

ND028501-7711

FRAME

SN: 26512630-UP

1шт.

24

ND128961-0010

BALL,STEEL

SN: 26512630-UP

1шт.

25

ND949170-4070

SPRING

SN: 26512630-UP

1шт.

26

ND028371-3210

PINION,STARTER

SN: 26512630-UP

1шт.

27

ND028306-0070

ROLLER,CLUTCH

SN: 26512630-UP

5шт.

28

ND028063-0030

RETAINER

SN: 26512630-UP

1шт.

29

ND028062-0130

COVER

SN: 26512630-UP

1шт.

30

ND949042-3680

BOLT

SN: 26512630-UP

1шт.

31

ND90801-10050

O-RING

SN: 26512630-UP

3шт.

32

ND949042-3690

BOLT

SN: 26512630-UP

1шт.

33

ND949006-4720

SCREW

SN: 26512630-UP

3шт.

34

ND949056-4480

NUT

SN: 26512630-UP

1шт.

35

ND028327-0171

RETAINER,SNAP

SN: 26512630-UP

1шт.

36

ND90258-10001

WASHER,SPRING

SN: 26512630-UP

1шт.

37

ND028901-0361

SEAL

SN: 26512630-UP

2шт.

38

ND028371-3200

PINION

SN: 26512630-UP

1шт.

39

ND949007-6530

SCREW

SN: 26512630-UP

4шт.

40

ND028530-1090

BRUSH ASSEMBLY

SN: 26512630-UP

2шт.

41

ND028530-1100

BRUSH ASSEMBLY

SN: 26512630-UP

2шт.

42

ND949007-6850

SCREW

SN: 26512630-UP

1шт.

43

ND028062-5790

COVER

SN: 26512630-UP

1шт.

44

ND90170-10061

NUT

SN: 26512630-UP

1шт.

45

ND028901-5190

SEAL

SN: 26512630-UP

1шт.

46

ND90200-06241

WASHER

SN: 26512630-UP

3шт.
