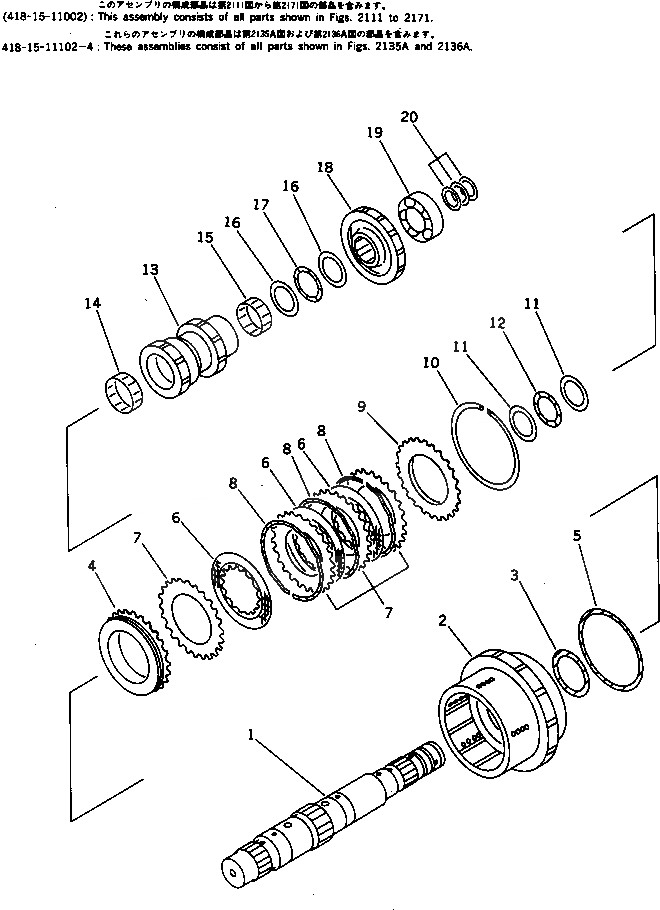

Запчасти Komatsu WA200-1 4 МУФТА(№-) ТРАНСМИССИЯ

|1

418-15-11002

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|1

418-15-11104

CLUTCH ASS'Y,2ND AND 4TH

SN: 20461-UP

1шт.

|1

418-15-11103

CLUTCH ASS'Y,2ND AND 4TH

SN: 20001-20460

1шт.

|1

0

CLUTCH ASS'Y,2ND AND 4TH

SN: (20001-..)

1шт.

|1

418-15-11172

SHAFT ASS'Y,HOUSING

SN: ..-UP

1шт.

|1

0

SHAFT ASS'Y,HOUSING

SN: 20001-..

1шт.

|1

0

SHAFT ASS'Y,HOUSING

SN: (20001-.)

1шт.

1

0

SHAFT,2ND AND 4TH

SN: .-UP

1шт.

|1

0

SHAFT,2ND AND 4TH

SN: 20001-.

1шт.

2

0

HOUSING,2ND AND 4TH

SN: ..-UP

1шт.

|2

0

HOUSING,2ND AND 4TH

SN: .-..

1шт.

|2

0

HOUSING,2ND AND 4TH

SN: 20001-.

1шт.

3

419-15-12210

RING,SEAL (K1)

SN: 10001-UP

1шт.

4

419-15-13191

PISTON

SN: 10001-UP

1шт.

5

419-15-12580

RING,SEAL (K1)

SN: 10001-UP

1шт.

6

7720-50-2590

DISC

SN: 10001-UP

3шт.

7

714-16-19730

PLATE,SEPARATE

SN: .-UP

4шт.

|7

0

PLATE,SEPARATE

SN: 10001-.

4шт.

8

419-15-12133

SPRING,WAVE

SN: 20001-UP

3шт.

9

419-15-12281

PLATE,END

SN: 10001-UP

1шт.

10

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

11

419-15-12680

WASHER,THRUST

SN: 10001-UP

2шт.

12

419-15-12670

BEARING,THRUST

SN: 10001-UP

1шт.

13

419-15-13222

GEAR,4TH

SN: .-UP

1шт.

|13

0

GEAR,4TH

SN: 10001-.

1шт.

14

419-15-12660

BEARING,NEEDLE

SN: 10001-UP

1шт.

15

419-15-12270

BEARING,NEEDLE

SN: 10001-UP

1шт.

16

419-15-12240

WASHER,THRUST

SN: 10001-UP

2шт.

17

419-15-12250

BEARING,THRUST

SN: 10001-UP

1шт.

18

419-15-13242

GEAR

SN: ..-UP

1шт.

|18

419-15-13241

GEAR

SN: .-..

1шт.

|18

0

GEAR

SN: 10001-.

1шт.

19

06030-06310

BEARING

SN: 20461-UP

1шт.

|19

419-15-13260

BEARING

SN: 10001-20460

1шт.

|19

0

BEARING

SN: (10001-20442)

1шт.

20

419-15-12121

RING,SEAL (K1)

SN: 20001-UP

3шт.
