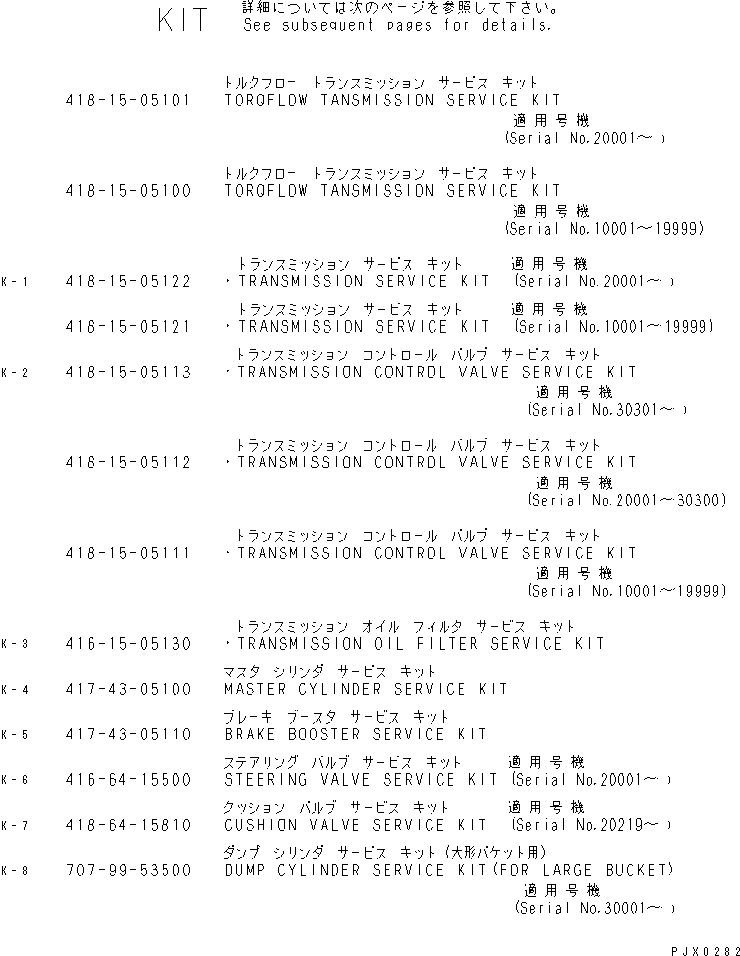

|1
418-15-05101
SERVICE KIT,TORQFLOW TRANSMISSION
SN: 20001-UP
1шт.
|1
418-15-05100
SERVICE KIT,TORQFLOW TRANSMISSION
SN: 10001-19999
1шт.
1
418-15-05122
SERVICE KIT,TRANSMISSION
SN: 20001-UP
1шт.
|1
418-15-05121
SERVICE KIT,TRANSMISSION
SN: 10001-19999
1шт.
|1
07018-31004
RING,SEAL¤ TORQUE CONVERTER SHAFT
SN: 10001-UP
1шт.
|1
424-13-11110
O-RING,FLYWHEEL HOUSING
SN: 10001-UP
1шт.
|1
07000-02065
O-RING,FILLER TUBE FLANGE
SN: 10001-UP
1шт.
|1
07002-02434
O-RING,OIL DRAIN PLUG
SN: 10001-UP
1шт.
|1
07000-05220
O-RING,EMERGENCY STEERING PUMP COVER
SN: 20001-UP
1шт.
|1
07000-02105
O-RING,EMERGENCY STEERING PUMP COVER
SN: 10001-19999
1шт.
|1
419-15-18131
LIQUID GASKET,LIQUID
SN: 10001-UP
1шт.
|1
419-15-12210
RING,SEAL¤ FORWARD PISTON
SN: 10001-UP
1шт.
|1
418-15-11560
RING,SEAL¤ FORWARD PISTON
SN: 10001-UP
1шт.
|1
419-15-12121
RING,SEAL¤ FORWARD-REVERSE SHAFT
SN: 20001-UP
4шт.
|1
419-15-12120
RING,SEAL¤ FORWARD-REVERSE SHAFT
SN: 10001-19999
4шт.
|1
419-15-12210
RING,SEAL¤ REVERSE PISTON
SN: 10001-UP
1шт.
|1
418-15-11560
RING,SEAL¤ REVERSE PISTON
SN: 10001-UP
1шт.
|1
419-15-12210
RING,SEAL¤ 3RD PISTON
SN: 10001-UP
1шт.
|1
419-15-12580
RING,SEAL¤ 3RD PISTON
SN: 10001-UP
1шт.
|1
419-15-12121
RING,SEAL¤ 3RD SHAFT
SN: 20001-UP
3шт.
|1
419-15-12120
RING,SEAL¤ 3RD SHAFT
SN: 10001-19999
3шт.
|1
419-15-12210
RING,SEAL¤ 1ST PISTON
SN: 10001-UP
1шт.
|1
419-15-12580
RING,SEAL¤ 1ST PISTON
SN: 10001-UP
1шт.
|1
419-15-12210
RING,SEAL¤ 4TH PISTON
SN: 10001-UP
1шт.
|1
419-15-12580
RING,SEAL¤ 4TH PISTON
SN: 10001-UP
1шт.
|1
419-15-12121
RING,SEAL¤ 4TH SHAFT
SN: 20001-UP
3шт.
|1
419-15-12120
RING,SEAL¤ 4TH SHAFT
SN: 10001-19999
3шт.
|1
419-15-12210
RING,SEAL¤ 2ND PISTON
SN: 10001-UP
1шт.
|1
419-15-12580
RING,SEAL¤ 2ND PISTON
SN: 10001-UP
1шт.
|1
07002-02434
O-RING,SPEEDOMETER SLEEVE
SN: 20001-UP
1шт.
|1
07002-03334
O-RING,SPEEDOMETER SLEEVE
SN: 10001-19999
1шт.
|1
07000-02075
O-RING,SPEEDOMETER COVER
SN: 20001-UP
1шт.
|1
07000-02125
O-RING,SPEEDOMETER COVER
SN: 10001-19999
1шт.
|1
419-15-13650
SEAL,DUST OUTPUT SHAFT FRONT
SN: 10001-UP
1шт.
|1
419-15-13660
SEAL,OIL¤ TRM. OUTPUT SHAFT FRONT
SN: 20001-UP
1шт.
|1
07000-02130
O-RING,OUTPUT SHAFT RETAINER
SN: 10001-UP
1шт.
|1
07000-32055
O-RING,FRONT YOKE
SN: 10001-UP
1шт.
|1
419-15-13650
SEAL,OIL¤ TRM. OUTPUT SHAFT REAR
SN: 10001-UP
1шт.
|1
419-15-13660
SEAL,DUST OUTPUT SHAFT REAR
SN: 20001-UP
1шт.
|1
07000-02085
O-RING,STRAINER
SN: 10001-UP
1шт.
|1
07000-03048
O-RING,PUMP SUCTION TUBE
SN: 10001-UP
1шт.
|1
07000-02105
O-RING,PUMP MOUNTING
SN: 10001-UP
1шт.
|1
07000-03028
O-RING,PUMP DELIVERY
SN: 10001-UP
1шт.
|1
07002-03334
O-RING,PIPING¤ ELBOW¤ VALVE
SN: 20001-UP
2шт.
|1
07002-03334
O-RING,PIPING¤ ELBOW¤ VALVE
SN: 10001-19999
6шт.
|1
07002-02434
O-RING,PIPING¤ ELBOW¤ VALVE
SN: 20001-UP
1шт.
2
418-15-05113
SERVICE KIT,CONTROL VALVE
SN: 30301-UP
1шт.
|2
0
SERVICE KIT,CONTROL VALVE
SN: 20001-30300
1шт.
|2
418-15-05111
SERVICE KIT,CONTROL VALVE
SN: 10001-19999
1шт.
|2
419-15-15741
GASKET,UPPER VALVE¤ FRONT COVER
SN: 30301-UP
1шт.
|2
0
GASKET,UPPER VALVE¤ FRONT COVER
SN: 20001-30300
1шт.
|2
419-15-15141
GASKET,UPPER VALVE¤ FRONT COVER
SN: 10001-19999
1шт.
|2
419-15-15751
GASKET,UPPER VALVE¤ REAR COVER
SN: 30301-UP
1шт.
|2
0
GASKET,UPPER VALVE¤ REAR COVER
SN: 20001-30300
1шт.
|2
419-15-15155
GASKET,UPPER VALVE¤ REAR COVER
SN: 10215-19999
1шт.
|2
0
GASKET,UPPER VALVE¤ REAR COVER
SN: 10001-10214
1шт.
|2
419-15-16811
GASKET,UPPER VALVE¤ LOWER VALVE
SN: 30301-UP
1шт.
|2
0
GASKET,UPPER VALVE¤ LOWER VALVE
SN: 20001-30300
1шт.
|2
419-15-15161
GASKET,UPPER VALVE¤ LOWER VALVE
SN: 10001-19999
1шт.
|2
07000-02014
O-RING,FILTER
SN: 10001-UP
2шт.
|2
419-15-16541
GASKET,LOWER VALVE¤ REAR COVER
SN: 30301-UP
1шт.
|2
0
GASKET,LOWER VALVE¤ REAR COVER
SN: 20001-30300
1шт.
|2
419-15-16134
GASKET,LOWER VALVE¤ REAR COVER
SN: 10001-19999
1шт.
|2
419-15-16551
GASKET,SOLENOID VALVE
SN: 30301-UP
1шт.
|2
0
GASKET,SOLENOID VALVE
SN: 20001-30300
1шт.
|2
419-15-16141
GASKET,SOLENOID VALVE
SN: 10001-19999
1шт.
|2
07000-02010
O-RING,SPOOL
SN: 20001-UP
1шт.
|2
113-15-29110
SEAL,OIL¤ SPOOL
SN: 10001-19999
1шт.
|2
568-15-15880
GASKET,SOLENOID VALVE
SN: 10001-19999
1шт.
|2
419-15-16331
GASKET,SOLENOID VALVE COVER
SN: .-19999
1шт.
|2
0
GASKET,SOLENOID VALVE COVER
SN: 10001-.
1шт.
|2
07002-03034
O-RING,PLUG
SN: 10001-19999
2шт.
|2
07002-02434
O-RING,REGULATOR VALVE
SN: 10001-11068
2шт.
|2
419-15-17141
GASKET,REGULATOR VALVE
SN: 10001-19999
1шт.
|2
07002-02434
O-RING,PIPING¤ ELBOW¤ VALVE
SN: 10001-19999
1шт.
|2
419-15-16821
GASKET,VALVE MOUNTING
SN: 30301-UP
1шт.
|2
0
GASKET,VALVE MOUNTING
SN: 20001-30300
1шт.
|2
419-15-16151
GASKET,VALVE MOUNTING
SN: 10001-19999
1шт.
|2
419-15-17141
GASKET,VALVE MOUNTING
SN: 10001-19999
1шт.
|2
07002-03334
O-RING,VALVE PIPING ELBOW
SN: 10001-19999
1шт.
|2
07000-03035
O-RING,UPPER VALVE SLEEVE
SN: 20001-UP
2шт.
|2
07000-01009
O-RING,ADJUST ROD
SN: 20001-UP
1шт.
3
416-15-05130
SERVICE KIT,TRANSMISSION OIL FILTER
SN: 10001-UP
1шт.
|3
07002-01223
O-RING,OIL DRAIN PLUG
SN: 10001-UP
1шт.
|3
419-15-14870
GASKET,FILTER
SN: 10001-UP
1шт.
|3
424-16-11130
O-RING,HEAD COVER
SN: 10001-UP
1шт.
|3
419-15-14860
O-RING,CENTER BOLT
SN: 10001-UP
1шт.
4
417-43-05100
SERVICE KIT,MASTER CYLINDER
SN: 10001-UP
1шт.
|4
417-43-17120
PISTON,SECONDARY
SN: 10001-UP
1шт.
|4
419-44-12510
PISTON,PRIMARY
SN: 10001-UP
1шт.
|4
419-44-12560
RING,SNAP
SN: 10001-UP
1шт.
|4
419-44-12520
PACKING
SN: 10001-UP
1шт.
|4
417-43-17130
O-RING
SN: 10001-UP
1шт.
5
417-43-05110
SERVICE KIT,BOOSTER
SN: 10001-UP
1шт.
|5
417-43-17250
O-RING
SN: 10001-UP
1шт.
|5
417-43-17320
O-RING
SN: 10001-UP
2шт.
|5
417-43-17270
SEAL
SN: 10001-UP
1шт.
|5
417-43-17330
RING,SNAP
SN: 10001-UP
1шт.
|5
417-43-17280
PLATE
SN: 10001-UP
1шт.
|5
417-43-17290
RING,SNAP
SN: 10001-UP
1шт.
|5
417-43-17340
COVER,DUST
SN: 10001-UP
1шт.
6
416-64-15501
SERVICE KIT,STEERING VALVE
SN: .-UP
1шт.
|6
416-64-15500
SERVICE KIT,STEERING VALVE
SN: 20001-.
1шт.
|6
416-64-15520
O-RING
SN: 20001-UP
3шт.
|6
416-64-15450
O-RING
SN: 20001-UP
1шт.
|6
416-64-15430
O-RING
SN: 20001-UP
1шт.
|6
416-64-15570
O-RING
SN: 20001-.
1шт.
|6
416-64-15590
RING,BACK-UP
SN: 10001-.
1шт.
|6
416-64-15581
SEAL
SN: .-UP
1шт.
|6
416-64-15580
SEAL
SN: 10001-.
1шт.
|6
416-64-15560
O-RING
SN: 10001-UP
1шт.
|6
416-64-15550
SEAL,DUST
SN: 10001-UP
1шт.
7
418-64-15810
SEAL KIT,CUSHION VALVE
SN: 20219-UP
1шт.
|7
0
O-RING
SN: 20219-UP
2шт.
|7
0
RING,BACK-UP
SN: 20219-UP
2шт.
|7
0
O-RING
SN: 20219-UP
2шт.
|7
0
O-RING
SN: 20219-UP
4шт.
8
707-99-53500
SERVICE KIT,DUMP CYLINDER
SN: 30001-UP
1шт.
|8
707-51-75030
PACKING,ROD
SN: 30001-UP
1шт.
|8
144-63-94170
SEAL,DUST
SN: 30001-UP
1шт.
|8
07000-12145
O-RING
SN: 30001-UP
1шт.
|8
07146-02146
RING,BACK-UP
SN: 30001-UP
1шт.
|8
07000-12060
O-RING
SN: 30001-UP
1шт.
|8
707-35-52900
RING,BACK-UP
SN: 30001-UP
2шт.
|8
707-44-15180
RING,PISTON
SN: 30001-UP
1шт.
|8
07155-01535
RING,WEAR
SN: 30001-UP
1шт.
