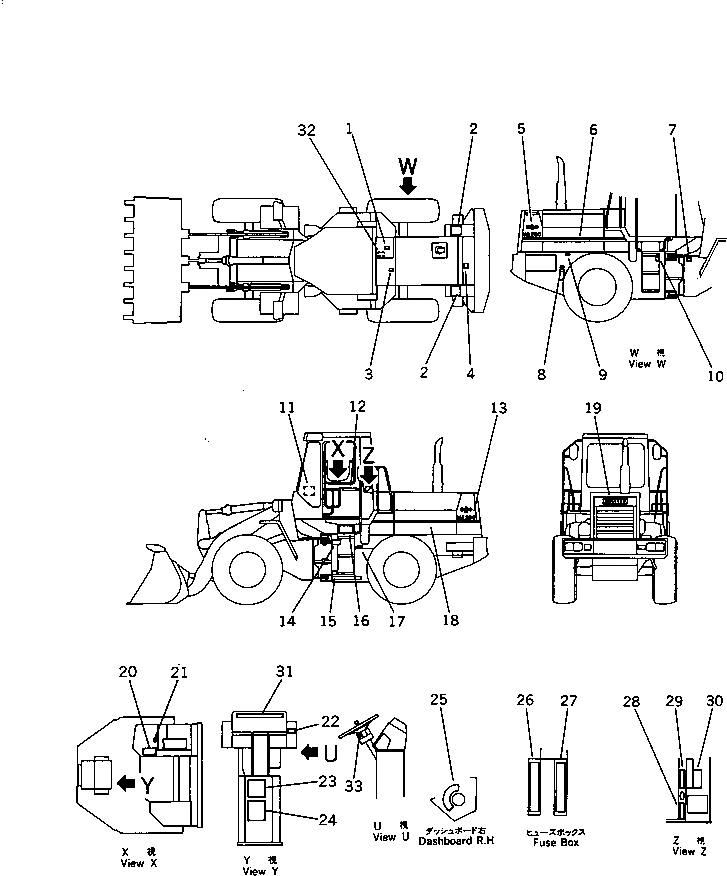

Запчасти Komatsu WA200-1 МАРКИРОВКА МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-93-11190

PLATE¤ CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

2

418-93-11180

PLATE¤ CAUTION,BATTERY

SN: 10001-UP

2шт.

3

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

4

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

5

418-93-11140

PLATE¤ MARK

SN: 10001-UP

1шт.

6

418-93-11160

STRIPE

SN: 10001-UP

1шт.

7

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|7

04418-13060

SCREW

SN: 10001-UP

4шт.

8

09101-00100

PLATE¤ INSTRUCTION,FUEL

SN: 10001-UP

1шт.

9

362-54-17180

PLATE¤ CAUTION,COOLING FAN

SN: 10001-UP

1шт.

10

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

1шт.

11

419-93-11430

PLATE¤ OPERATING,MONITOR

SN: 10001-UP

1шт.

12

417-93-11280

PLATE¤ NAME,AVANCE

SN: 30001-UP

2шт.

|12

09690-50280

PLATE¤ MARK,KOMATSU

SN: 10001-29999

2шт.

13

418-93-11140

PLATE¤ MARK

SN: 10001-UP

1шт.

14

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

1шт.

15

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

16

418-93-11151

CHART¤ OIL

SN: 30001-UP

1шт.

|16

0

CHART¤ OIL

SN: 10001-29999

1шт.

17

419-93-11210

PLATE¤ CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-UP

1шт.

18

418-93-11160

STRIPE

SN: 10001-UP

1шт.

19

09690-50400

PLATE¤ MARK,KOMATSU

SN: 10001-UP

1шт.

20

421-93-11132

PLATE¤ OPERATING,LOADER CONTROL

SN: 10001-UP

1шт.

21

09685-00004

PLATE¤ OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

22

424-93-11360

PLATE¤ OPERATING,WORKING LAMP

SN: 10001-UP

1шт.

23

421-93-11181

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

24

418-93-11440

PLATE,MACHINE SPEC.

SN: 30029-UP

1шт.

|24

418-93-11170

PLATE,MACHINE SPEC.

SN: 10001-30028

1шт.

25

09683-01050

PLATE¤ OPERATING,MAIN SWITCH

SN: 10001-UP

1шт.

26

419-93-11252

PLATE,FUSE BOX

SN: 30001-UP

1шт.

26

419-93-11251

PLATE,FUSE BOX

SN: 10001-29999

1шт.

27

419-93-11262

PLATE,FUSE BOX

SN: 30001-UP

1шт.

|27

419-93-11261

PLATE,FUSE BOX

SN: 10001-29999

1шт.

28

419-93-11890

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10652-UP

1шт.

|28

0

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-10651

1шт.

29

362-54-17150

PLATE¤ CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

30

362-54-17230

PLATE¤ CAUTION,OIL HOSE

SN: 10001-UP

1шт.

31

418-93-11270

PLATE

SN: .-UP

1шт.

32

418-93-11360

PLATE¤ CAUTION,ENGINE OIL

SN: 11087-UP

1шт.

33

421-93-12290

PLATE¤ OPERATING,INDICATOR LAMP¤ DIMMER SWITCH

SN: 20426-UP

1шт.
