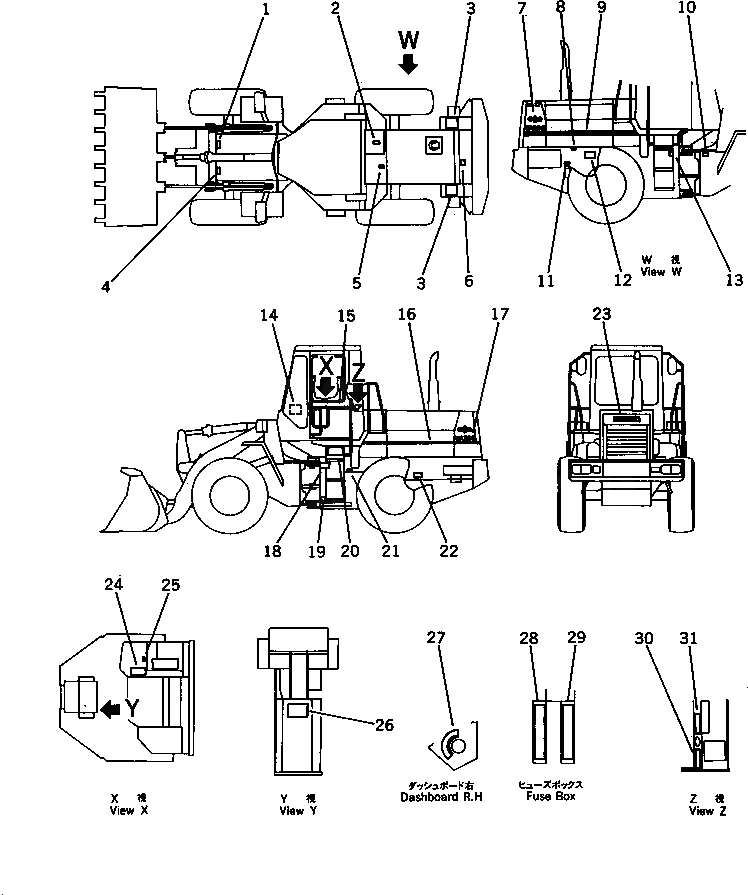

Запчасти Komatsu WA200-1 МАРКИРОВКА (ПОРТУГАЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
419-V03-1250
PLATE, CAUTION,LIFT HERE
SN: 10001-UP
1шт.
2
419-V03-1180
PLATE, CAUTION,BRAKE OIL
SN: 10001-UP
1шт.
3
418-V03-1120
PLATE, CAUTION,BATTERY
SN: 10001-UP
2шт.
4
419-V03-1250
PLATE, CAUTION,LIFT HERE
SN: 10001-UP
1шт.
5
09653-07000
PLATE, SAFETY,HYDRAULIC TANK
SN: 10001-UP
1шт.
6
09668-07000
PLATE, SAFETY,RADIATOR CAP
SN: 10001-UP
1шт.
7
418-93-11140
PLATE, MARK
SN: 10001-UP
1шт.
8
419-V03-1140
PLATE, CAUTION,COOLING FAN
SN: 10001-UP
1шт.
9
418-93-11160
STRIPE
SN: 10001-UP
1шт.
10
09602-71635
PLATE, NAME,(LIMITED SUPPLY)
SN: 10001-UP
1шт.
11
09101-07000
PLATE, CAUTION,FUEL
SN: 10001-UP
1шт.
12
419-V03-1250
PLATE, CAUTION,LIFT HERE
SN: 10001-UP
1шт.
13
419-V03-1160
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
1шт.
14
419-V03-1240
PLATE, OPERATING,MONITOR
SN: 10001-UP
1шт.
15
09690-50280
PLATE, MARK,KOMATSU
SN: 10001-UP
2шт.
16
418-93-11160
STRIPE
SN: 10001-UP
1шт.
17
418-93-11140
PLATE, MARK
SN: 10001-UP
1шт.
18
419-V03-1160
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
1шт.
19
419-V03-1130
PLATE, CAUTION,FRAME LOCK
SN: 10001-UP
1шт.
20
418-V03-1110
CHART, OIL
SN: 10001-UP
1шт.
21
419-V03-1170
PLATE, CAUTION,TRANSMISSION OIL LEVEL
SN: 10001-UP
1шт.
22
419-V03-1250
PLATE, CAUTION,LIFT HERE
SN: 10001-UP
1шт.
23
09690-50400
PLATE, MARK,KOMATSU
SN: 10001-UP
1шт.
24
421-93-11132
PLATE, OPERATING,LOADER CONTROL
SN: 10001-UP
1шт.
25
09685-00004
PLATE, OPERATING,LOCK LEVER
SN: 10001-UP
1шт.
26
419-V03-1150
PLATE, SAFETY,STARTING AND AFTER OPERATING
SN: 10001-UP
1шт.
27
09683-71050
PLATE, OPERATING,MAIN SWITCH
SN: 10001-UP
1шт.
28
419-V03-1210
PLATE, CAUTION,FUSE BOX
SN: 10001-UP
1шт.
29
419-V03-1190
PLATE,FUSE BOX
SN: 10001-UP
1шт.
30
419-V03-1260
PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE
SN: .-UP
1шт.
30
0
PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE
SN: 10001-.
1шт.
31
419-V03-1120
PLATE, CAUTION,STARTING AND INSPECTION
SN: 10001-UP
1шт.
Выбрано товаров: 33
