G1
0

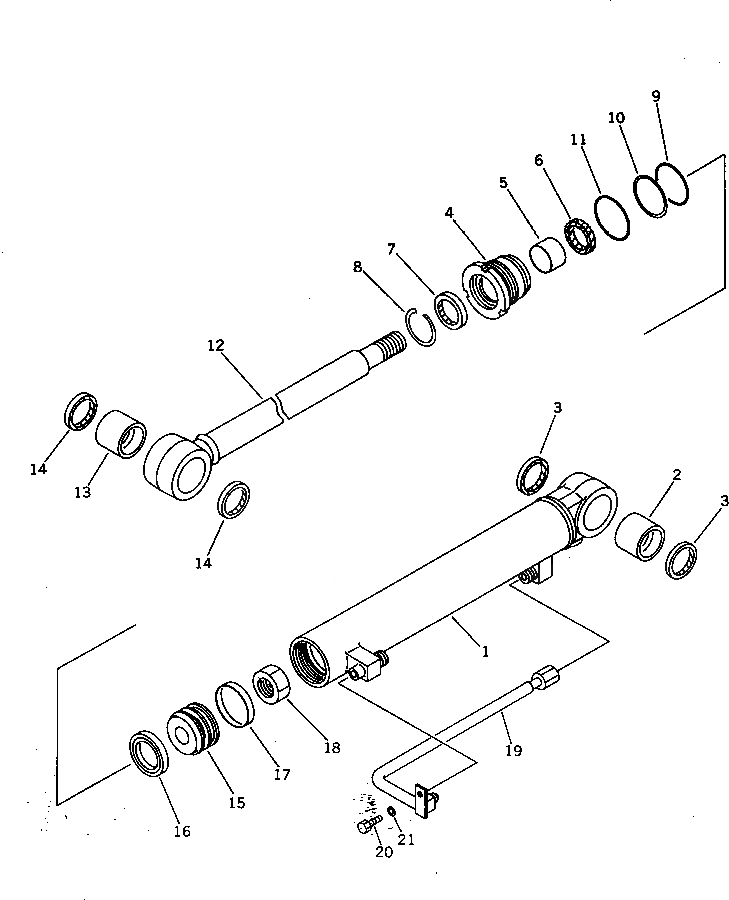

CYLINDER GROUP,DUMP
SN: 10001-UP
1шт.
|$$2
====================
-1шт.
|$2
361-63-02021
CYLINDER ASS'Y
SN: 10001-UP
1шт.
1
361-63-22241
CYLINDER
SN: 10001-UP
1шт.
2
07143-10304
BUSHING
SN: 10001-UP
1шт.
3
07145-00035
SEAL,DUST (KIT)
SN: 10001-UP
2шт.
4
707-29-60760
HEAD,CYLINDER
SN: 10001-UP
1шт.
5
07177-03525
BUSHING
SN: 10001-UP
1шт.
6
707-51-35210
PACKING,ROD (KIT)
SN: 10001-UP
1шт.
7
175-63-75190
SEAL,DUST (KIT)
SN: 10001-UP
1шт.
8
07179-12047
RING,SNAP
SN: 10001-UP
1шт.
9
07000-12055
O-RING (KIT)
SN: 10001-UP
1шт.
10
07146-02056
RING,BACK-UP (KIT)
SN: 10001-UP
1шт.
11
07000-02060
O-RING (KIT)
SN: 10001-UP
1шт.
12
361-63-22221
ROD,PISTON
SN: 10001-UP
1шт.
13
07143-10304
BUSHING
SN: 10001-UP
1шт.
14
07145-00035
SEAL,DUST (KIT)
SN: 10001-UP
2шт.
15
707-36-60140
PISTON
SN: 10001-UP
1шт.
16
707-44-60180
RING,PISTON (KIT)
SN: 10001-UP
1шт.
17
707-39-60190
RING,WEAR (KIT)
SN: 10001-UP
1шт.
18
01580-02419
NUT
SN: 10001-UP
1шт.
19
361-63-22270
TUBE
SN: 10001-UP
1шт.
20
01010-50820
BOLT
SN: 10001-UP
1шт.
21
01643-30823
WASHER
SN: 10001-UP
1шт.
|$$25
====================
-1шт.
|$$26
SERVICE KIT
-1шт.
K
707-98-12310
SERVICE KIT,DUMP CYLINDER
SN: 10001-UP
1шт.
