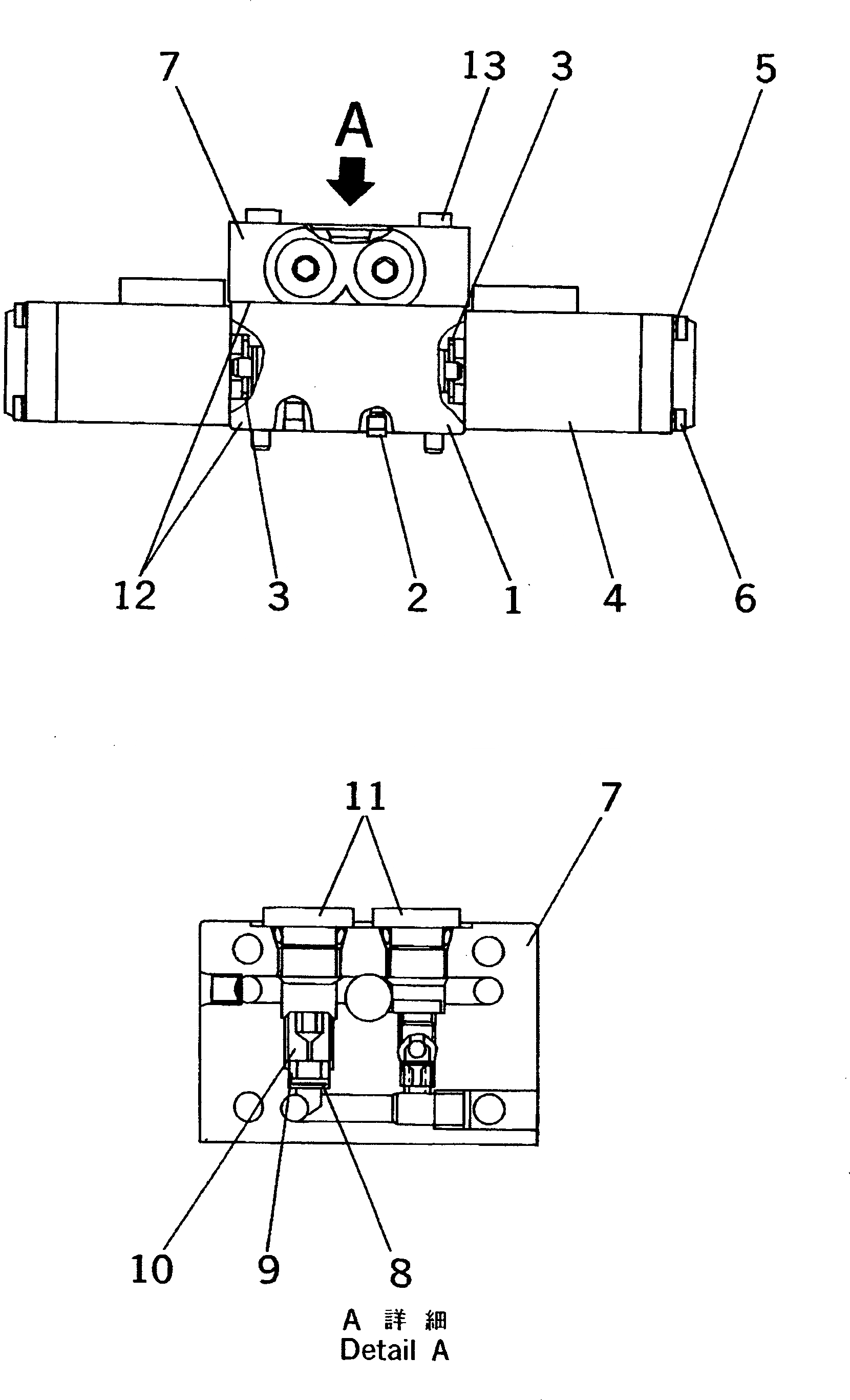

Запчасти Komatsu WA20-2 ОСНОВН. НАСОС (ПОРШЕНЬ НАСОС ВНУТР. ЧАСТИ) (УПРАВЛЯЮЩ. КЛАПАН) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$3

361-17-21302

PUMP ASS'Y,(A4VG28DA-930-0)

SN: 11896-UP

1шт.

|$4

361-17-21301

PUMP ASS'Y,(A4VG28DA-987-2)

SN: 11270-11895

1шт.

|$5

361-17-21200

PUMP ASS'Y,(A4VG28DA-987-1)

SN: 10842-11269

1шт.

|$6

361-17-21200

PUMP ASS'Y,(A4VG28DA-987-0)

SN: 10222-10841

1шт.

|$7

361-17-21200

PUMP ASS'Y,(A4VG28DA-999-1)

SN: 10001-10221

1шт.

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-01A0 TO Y1610-07A0B.

-1шт.

|$$7

THE UCHIDA YUATSU KIKI PART NUMBER IS THAT UC IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

|$10

UCBA041S9137-0

PUMP ASS'Y,PISTON

SN: 11896-UP

1шт.

|$11

UCB1043R9639-0

PUMP ASS'Y,PISTON

SN: 10842-11895

1шт.

|$12

UCB1043R9914-0

PUMP ASS'Y,PISTON

SN: 10222-10841

1шт.

|$13

UCC9845A0376-0

PUMP ASS'Y,PISTON

SN: 10001-10221

1шт.

|$$12

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-02A0 TO Y1610-06A0.

-1шт.

|$15

UC4100356627

CONTROL VALVE ASS'Y

SN: 10001-UP

1шт.

|$16

UC4100357859

VALVE ASS'Y

SN: 10001-UP

1шт.

1

0

BODY ASS'Y

SN: 10001-11895

1шт.

2

UC1701564934

ORIFICE

SN: 10001-UP

1шт.

3

02890-01015

O-RING

SN: 10001-UP

2шт.

|$20

UC4704282659

VALVE ASS'Y

SN: 10001-UP

2шт.

4

UC1701577398

SOLENOID

SN: 10001-UP

1шт.

5

UC1701577159

BOLT

SN: 11896-UP

4шт.

5

UC1301767007

BOLT

SN: 10001-11895

4шт.

6

UC1302057008

WASHER,SPRING

SN: 10001-UP

4шт.

|$25

UC4100349977

COVER ASS'Y

SN: 10001-UP

1шт.

7

UC4100372766

COVER ASS'Y

SN: 10001-UP

1шт.

8

UC1100355508

FILTER

SN: 10001-UP

1шт.

9

UC1100350008

SPACER

SN: 10001-UP

1шт.

10

UC1100349952

ORIFICE

SN: 10001-UP

1шт.

11

UC4100104426

PLUG

SN: 10001-UP

2шт.

12

UC1100356271

GASKET

SN: 10001-UP

2шт.

13

UC1301765001

BOLT

SN: 10001-UP

4шт.
