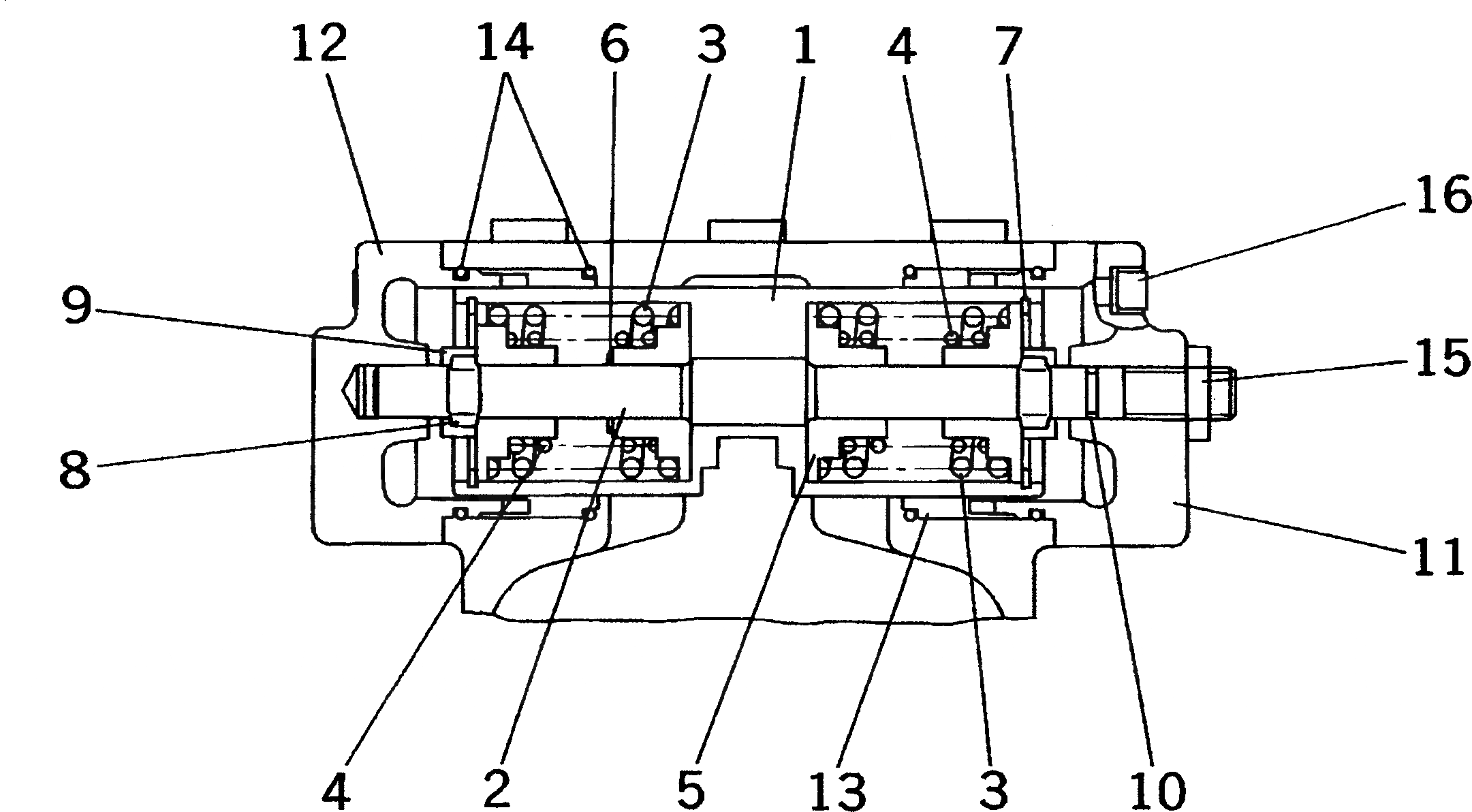

Запчасти Komatsu WA20-2 ОСНОВН. НАСОС (ПОРШЕНЬ НАСОС ВНУТР. ЧАСТИ) (ЦИЛИНДР НАКЛОНА) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$3

361-17-21302

PUMP ASS'Y,(A4VG28DA-930-0)

SN: 11896-UP

1шт.

|$4

361-17-21301

PUMP ASS'Y,(A4VG28DA-987-2)

SN: 11270-11895

1шт.

|$5

361-17-21200

PUMP ASS'Y,(A4VG28DA-987-1)

SN: 10842-11269

1шт.

|$6

361-17-21200

PUMP ASS'Y,(A4VG28DA-987-0)

SN: 10222-10841

1шт.

|$7

361-17-21200

PUMP ASS'Y,(A4VG28DA-999-1)

SN: 10001-10221

1шт.

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-01A0 TO Y1610-07A0B.

-1шт.

|$$7

THE UCHIDA YUATSU KIKI PART NUMBER IS THAT UC IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.

-1шт.

|$10

UCBA041S9137-0

PUMP ASS'Y,PISTON

SN: 11896-UP

1шт.

|$11

UCB1043R9639-0

PUMP ASS'Y,PISTON

SN: 10842-11895

1шт.

|$12

UCB1043R9914-0

PUMP ASS'Y,PISTON

SN: 10222-10841

1шт.

|$13

UCC9845A0376-0

PUMP ASS'Y,PISTON

SN: 10001-10221

1шт.

|$$12

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1610-02A0 TO Y1610-06A0.

-1шт.

|$15

UC4704340893

CYLINDER ASS'Y,LEANING

SN: 10001-UP

1шт.

1

UC1704351281

PISTON

SN: 10001-UP

1шт.

2

UC1704142014

ROD

SN: 10001-UP

1шт.

3

UC1704322467

SPRING,LARGE

SN: 10001-UP

2шт.

4

UC1704322476

SPRING,SMALL

SN: 10001-UP

2шт.

5

UC1704352642

RETAINER

SN: 10001-UP

4шт.

6

UC1701544765

SHIM, 0.3MM

SN: 10001-UP

1шт.

6

UC1701544774

SHIM, 0.5MM

SN: 10001-UP

1шт.

6

UC1701547259

SHIM, 0.4MM

SN: 10001-UP

1шт.

7

04065-04018

RING,SNAP

SN: 10001-UP

2шт.

8

UC1704004646

RING, 5.77MM

SN: 10001-UP

2шт.

8

UC1704004655

RING, 5.82MM

SN: 10001-UP

2шт.

8

UC1704004664

RING, 5.87MM

SN: 10001-UP

2шт.

8

UC1704004673

RING, 5.92MM

SN: 10001-UP

2шт.

8

UC1704004682

RING, 5.97MM

SN: 10001-UP

2шт.

8

UC1704004691

RING, 6.02MM

SN: 10001-UP

2шт.

9

UC1704004701

GUIDE

SN: 10001-UP

2шт.

10

02890-01009

O-RING

SN: 10001-UP

1шт.

11

UC1704152075

COVER

SN: 10001-UP

1шт.

12

UC1704154199

COVER

SN: 10001-UP

1шт.

13

UC1100357614

BUSHING

SN: 11896-UP

2шт.

13

0

BUSHING

SN: 10001-11895

2шт.

14

02891-02051

O-RING

SN: 10001-UP

4шт.

15

UC1193100207

NUT

SN: 10001-UP

1шт.

16

01252-30620

BOLT

SN: 10001-UP

8шт.
