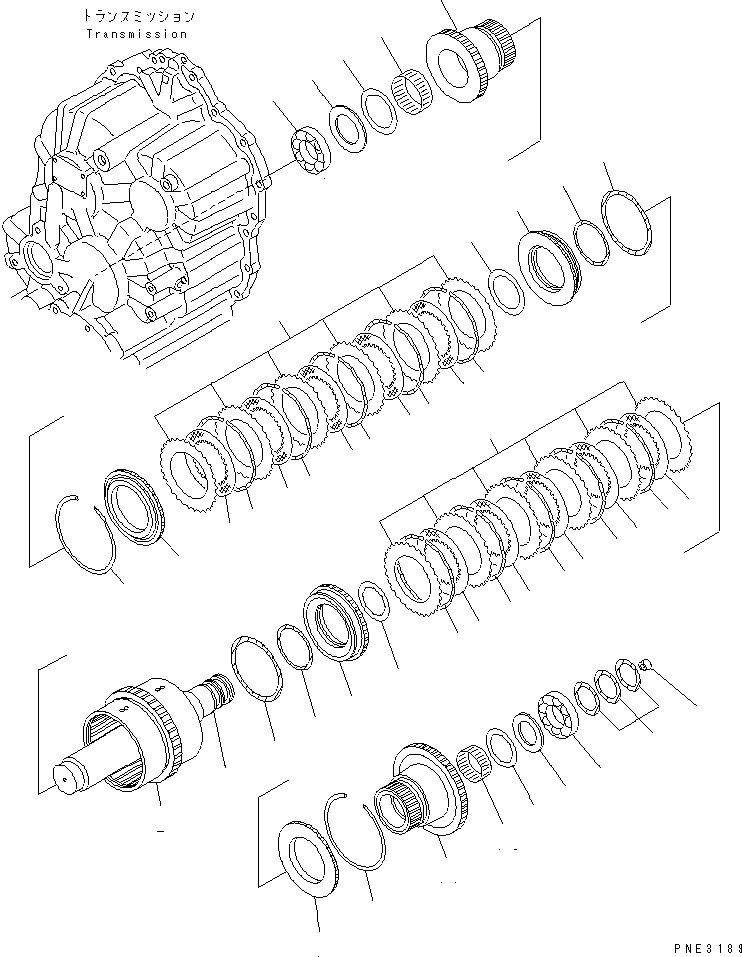

Запчасти Komatsu WA180PT-3MC ТРАНСМИССИЯ (3-Я И 4-Я МУФТА) ТРАНСМИССИЯ

|$0

TRANSMISSION ASS'Y,(SEE FIG. F4350-51A0)

SN: A88001-UP

-1шт.

|$1

TRANSMISSION ASS'Y,(SEE FIG. F4350-51A0)

SN: A88001-UP

-1шт.

|$2

714-11-12030

CLUTCH ASS'Y,3RD AND 4TH

SN: A88001-UP

1шт.

|$3

714-11-12170

SHAFT ASS'Y

SN: A88001-UP

1шт.

1

0

SHAFT

SN: A88001-UP

1шт.

2

0

HOUSING ASS'Y

SN: A88001-UP

1шт.

3

714-11-12660

PISTON,3RD AND 4TH

SN: A88001-UP

2шт.

4

714-08-19710

DISC,FRICTION

SN: A88001-UP

10шт.

5

714-08-19730

PLATE,SEPARATOR

SN: A88001-UP

12шт.

6

714-08-12910

SPRING,WAVE

SN: A88001-UP

10шт.

7

714-08-12610

PLATE,END

SN: A88001-UP

2шт.

8

714-08-19510

RING,SNAP

SN: A88001-UP

2шт.

9

714-08-19210

RING,SEAL

SN: A88001-UP

2шт.

10

714-11-19230

RING,SEAL

SN: A88001-UP

2шт.

11

714-11-19510

WASHER,THRUST

SN: A88001-UP

2шт.

12

714-08-19570

WASHER,THRUST

SN: A88001-UP

2шт.

13

714-11-12710

SPACER

SN: A88001-UP

1шт.

14

714-11-12720

SPACER

SN: A88001-UP

1шт.

15

419-15-12270

BEARING,NEEDLE

SN: A88001-UP

1шт.

16

419-15-13150

BEARING,NEEDLE

SN: A88001-UP

2шт.

17

714-11-12460

GEAR, 51 TEETH,4TH

SN: A88001-UP

1шт.

18

714-11-12470

GEAR, 40-52 TEETH,3RD

SN: A88001-UP

1шт.

19

06040-06210

BEARING

SN: A88001-UP

1шт.

20

06040-06312

BEARING

SN: A88001-UP

1шт.

21

714-11-12850

SCREW

SN: A88001-UP

1шт.

22

419-15-12122

RING

SN: A88001-UP

3шт.
