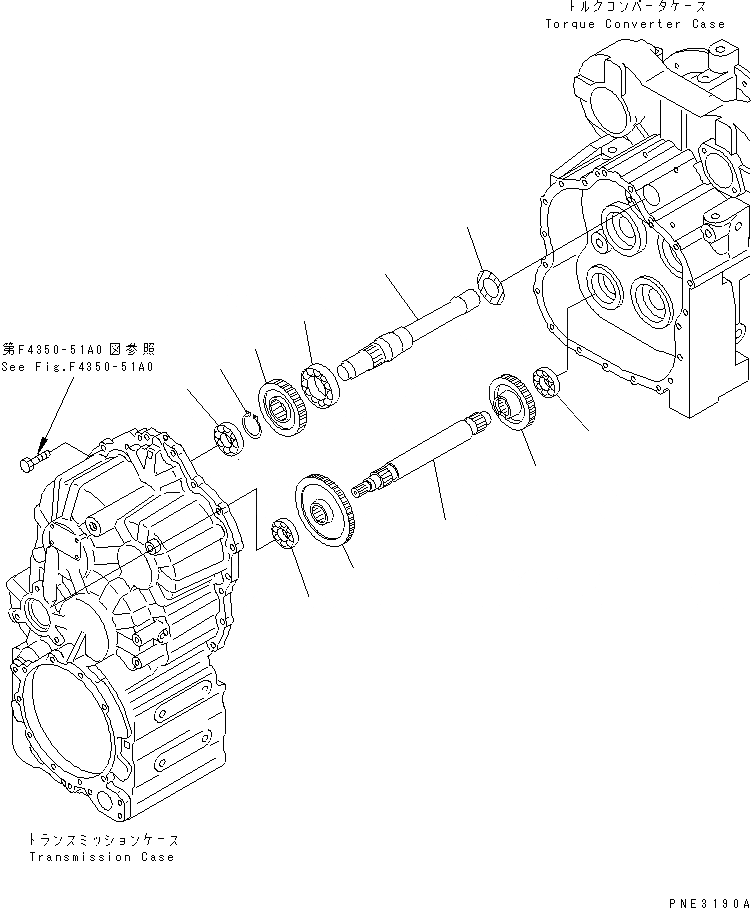

Запчасти Komatsu WA180PT-3 ТРАНСМИССИЯ (ВХОДН. ВАЛ И 3 И 4 ПРИВОД) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$5

714-11-10003

TRANSMISSION ASS'Y

SN: (68569)-UP

1шт.

|$6

714-11-10002

TRANSMISSION ASS'Y

SN: 50001-(68568)

1шт.

|$7

714-11-10043

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: (68573)-UP

1шт.

|$8

714-11-10042

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 50001-(68572)

1шт.

|$$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0.

-1шт.

1

714-11-14510

SHAFT,INPUT

SN: 50001-UP

1шт.

2

714-11-14610

GEAR,INPUT

SN: 50001-UP

1шт.

3

06040-06210

BEARING

SN: 50001-UP

1шт.

4

06040-06207

BEARING,BALL

SN: 50001-UP

1шт.

5

04064-04818

RING,SNAP

SN: 50001-UP

1шт.

6

419-15-12122

RING,SEAL

SN: 50001-UP

1шт.

7

714-11-12250

SHAFT,4TH

SN: 50001-UP

1шт.

8

714-11-12510

GEAR, 33 TEETH,4TH

SN: 50001-UP

1шт.

9

714-11-12520

GEAR, 45 TEETH,3RD

SN: 50001-UP

1шт.

10

06040-06306

BEARING

SN: 50001-UP

2шт.
