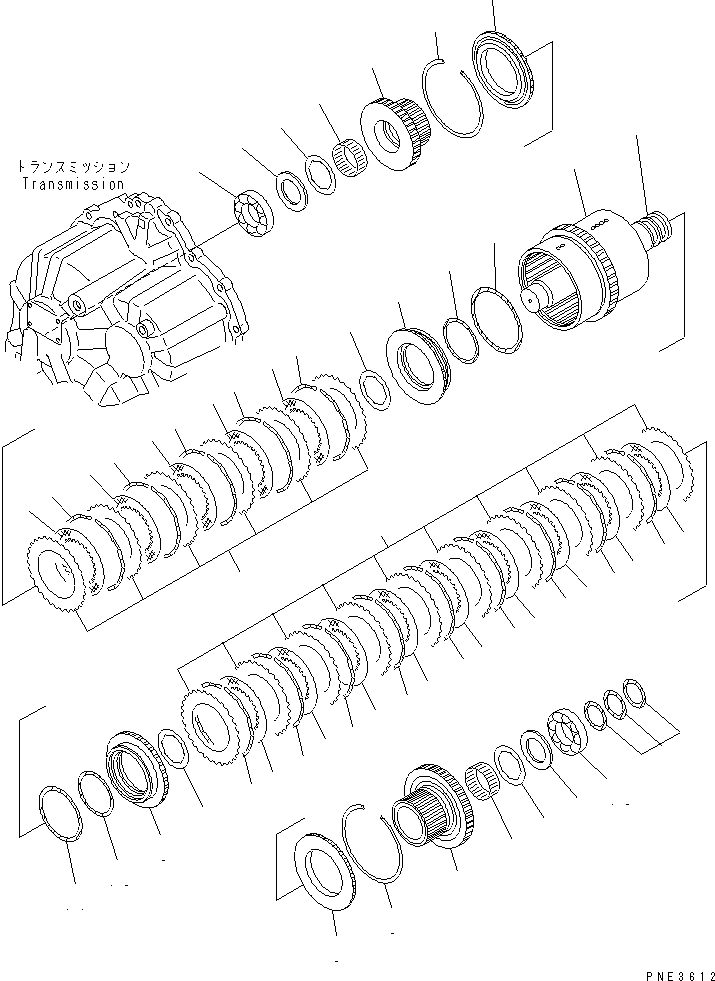

Запчасти Komatsu WA180PT-3 ТРАНСМИССИЯ (РЕВЕРС И 1 МУФТА) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$5

714-11-10003

TRANSMISSION ASS'Y

SN: (68569)-UP

1шт.

|$6

714-11-10002

TRANSMISSION ASS'Y

SN: 50001-(68568)

1шт.

|$7

714-11-10043

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: (68573)-UP

1шт.

|$8

714-11-10042

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 50001-(68572)

1шт.

|$$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0.

-1шт.

|$12

714-11-12010

CLUTCH ASS'Y,REVERSE AND 1ST

SN: 50001-UP

1шт.

|$13

714-11-12110

SHAFT ASS'Y

SN: 50001-UP

1шт.

1

0

SHAFT

SN: 50001-UP

1шт.

2

0

HOUSING ASS'Y

SN: 50001-UP

1шт.

3

714-11-12650

PISTON,REVERSE

SN: 50001-UP

1шт.

4

714-11-12660

PISTON,1ST

SN: 50001-UP

1шт.

5

714-08-19710

DISC

SN: 50001-UP

14шт.

6

714-08-19730

PLATE,SEPARATE

SN: 50001-UP

16шт.

7

714-08-12911

SPRING,WAVE

SN: 50001-UP

14шт.

7

0

SPRING,WAVE

SN: (50001-(170423))

14шт.

8

714-08-12610

PLATE,END

SN: 50001-UP

2шт.

9

714-08-19510

RING,SNAP

SN: 50001-UP

2шт.

10

714-08-19210

RING,SEAL

SN: 50001-UP

2шт.

11

714-11-19240

RING,SEAL

SN: 50001-UP

1шт.

12

714-11-19230

RING,SEAL

SN: 50001-UP

1шт.

13

714-11-19510

WASHER,THRUST

SN: 50001-UP

4шт.

14

714-11-12710

SPACER

SN: 50001-UP

2шт.

15

419-15-12271

BEARING

SN: (68893)-UP

2шт.

15

0

BEARING,NEEDLE

SN: 50001-(68892)

2шт.

16

714-11-12410

GEAR, 45 TEETH,REVERSE

SN: 50001-UP

1шт.

17

714-11-12420

GEAR, 29 TEETH,1ST

SN: 50001-UP

1шт.

18

06040-06210

BEARING

SN: 50001-UP

2шт.

19

419-15-12122

RING,SEAL

SN: 50001-UP

3шт.
