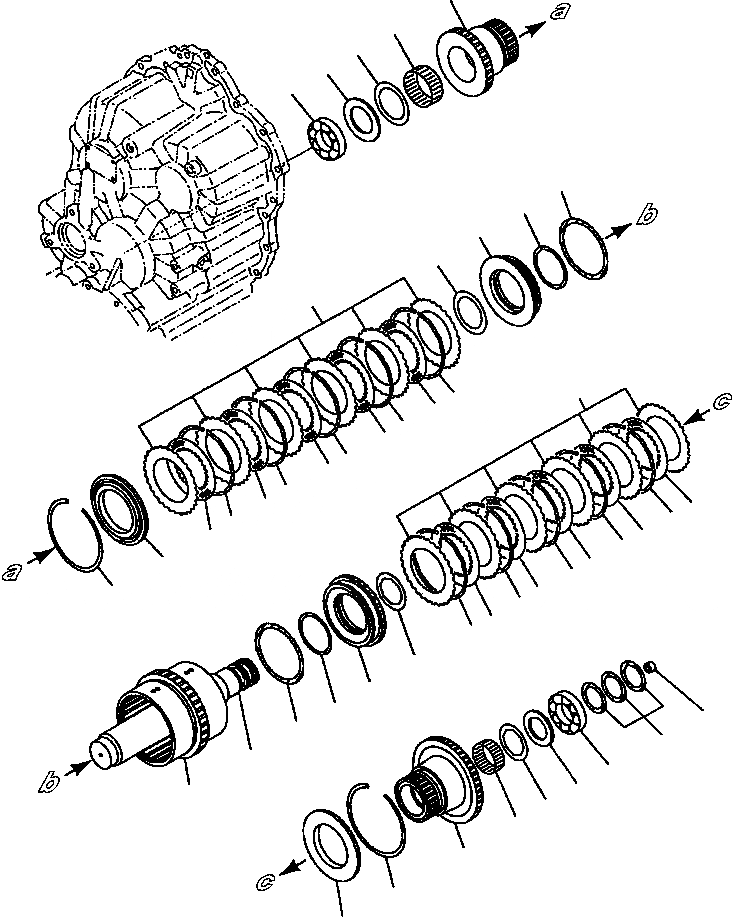

Запчасти Komatsu WA180-3MC FIG. F-A ТРАНСМИССИЯ - THIRD И FOURTH МУФТА СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

TRANSMISSION ASSEMBLY(SEE FIG. F4350-51A0)

SN: A81001-UP-UP

-1шт.

|$1

714-11-12030

CLUTCH ASSEMBLY, 3RD AND 4TH

SN: A81001-UP-UP

1шт.

|$2

714-11-12170

SHAFT ASSEMBLY

SN: A81001-UP-UP

1шт.

1

NSS

SHAFT

SN: A81001-UP-UP

1шт.

2

NSS

HOUSING

SN: A81001-UP-UP

1шт.

3

714-11-12660

PISTON, 3RD AND 4TH

SN: A81001-UP-UP

2шт.

4

714-08-19710

DISC, FRICTION

SN: A81001-UP-UP

10шт.

5

714-08-19730

PLATE, SEPARATOR

SN: A81001-UP-UP

12шт.

6

714-08-12910

SPRING, WAVE

SN: A81001-UP-UP

10шт.

7

714-08-12610

PLATE, END

SN: A81001-UP-UP

2шт.

8

714-08-19510

RING, SNAP

SN: A81001-UP-UP

2шт.

9

714-08-19210

RING, SEAL

SN: A81001-UP-UP

2шт.

10

714-11-19230

RING, SEAL

SN: A81001-UP-UP

2шт.

11

714-11-19510

WASHER, THRUST

SN: A81001-UP-UP

2шт.

12

714-08-19570

WASHER, THRUST

SN: A81001-UP-UP

2шт.

13

714-11-12710

SPACER

SN: A81001-UP-UP

1шт.

14

714-11-12720

SPACER

SN: A81001-UP-UP

1шт.

15

419-15-12270

BEARING, NEEDLE

SN: A81001-UP-UP

1шт.

16

714-23-19431

BEARING, NEEDLE

SN: A81001-UP-UP

2шт.

17

714-11-12460

GEAR, 4TH

SN: A81001-UP-UP

1шт.

18

714-11-12470

GEAR, 3RD

SN: A81001-UP-UP

1шт.

19

06040-06210

BEARING

SN: A81001-UP-UP

1шт.

20

06040-06312

BEARING

SN: A81001-UP-UP

1шт.

21

714-11-12850

SCREW

SN: A81001-UP-UP

1шт.

22

419-15-12122

RING, SEAL

SN: A81001-UP-UP

3шт.
