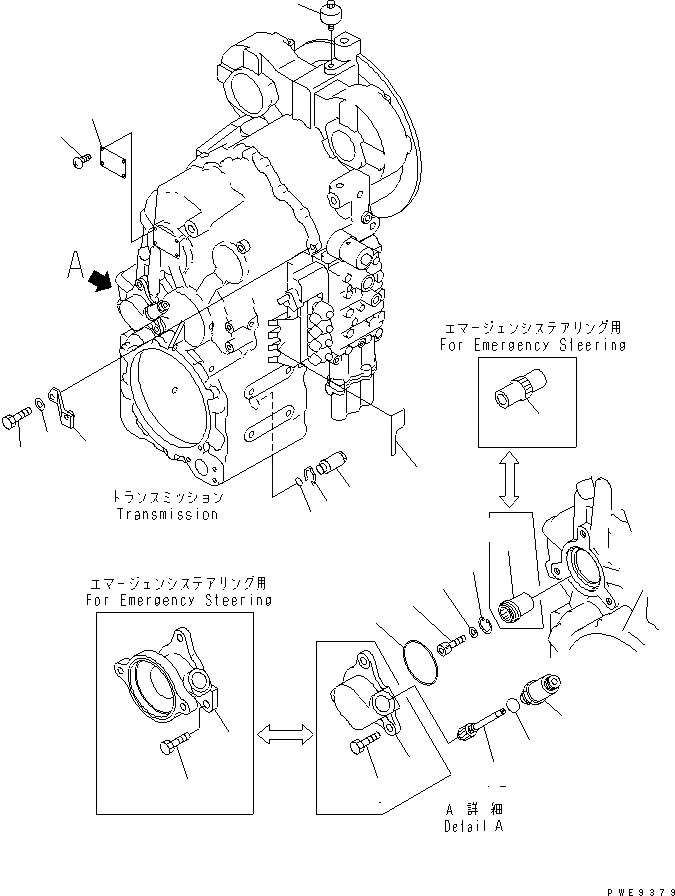

Запчасти Komatsu WA180-3 ТРАНСМИССИЯ (АКСЕССУАРЫ) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$5

714-11-10003

TRANSMISSION ASS'Y

SN: (68569)-UP

1шт.

|$6

714-11-10002

TRANSMISSION ASS'Y

SN: 53001-(68568)

1шт.

|$7

714-11-10043

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: (68573)-UP

1шт.

|$8

714-11-10042

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 53001-(68572)

1шт.

|$$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0.

-1шт.

1

07030-00252

BREATHER

SN: 53001-UP

1шт.

2

419-15-18241

PLUG

SN: 53001-UP

1шт.

3

07002-02434

O-RING (K1)

SN: 53001-UP

1шт.

4

419-15-18251

RING,SNAP

SN: 53001-UP

1шт.

5

09608-05080

PLATE, NAME,(LIMITED SUPPLY)

SN: 53001-UP

1шт.

6

04418-13060

SCREW

SN: 53001-UP

4шт.

7

714-11-11350

RETAINER

SN: 53001-UP

1шт.

7

714-11-11340

COVER,(FOR EMERGENCY STEERING)

SN: 53001-UP

1шт.

8

07000-02085

O-RING (K1)

SN: 53001-UP

1шт.

9

01010-81230

BOLT

SN: 53001-UP

3шт.

10

714-11-14690

WORM

SN: 53001-UP

1шт.

10

714-11-14680

WORM,(FOR EMERGENCY STEERING)

SN: 53001-UP

1шт.

11

04065-01910

RING,SNAP

SN: 53001-UP

1шт.

12

714-11-14670

GEAR

SN: 53001-UP

1шт.

13

714-07-18660

SLEEVE

SN: 53001-UP

1шт.

14

07002-02434

O-RING (K1)

SN: 53001-UP

1шт.

15

01252-30816

BOLT

SN: 53001-UP

1шт.

16

01643-30823

WASHER

SN: 53001-UP

1шт.

17

714-11-18990

PLATE

SN: 53001-UP

1шт.

18

01010-81245

BOLT

SN: 53001-UP

1шт.

19

01643-31232

WASHER

SN: 53001-UP

1шт.

20

714-11-16880

PLATE

SN: (67991)-UP

1шт.
