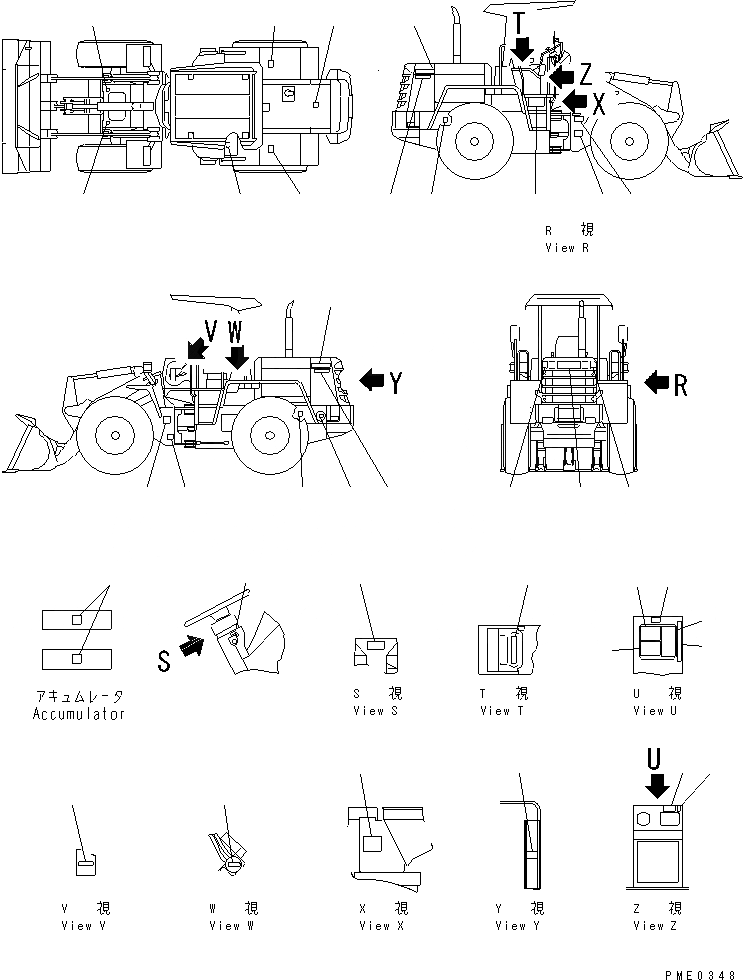

Запчасти Komatsu WA180-3 МАРКИРОВКА (С НАВЕСОМ) (АНГЛ.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

417-93-21310

PLATE KIT

SN: 50001-UP

1шт.

1

0

PLATE, SAFETY,KEEP OUT

SN: 50001-UP

2шт.

2

0

PLATE, SAFETY,SAFETY BAR

SN: 50001-UP

1шт.

3

0

PLATE, INSTRUCTION,FUEL

SN: 50001-UP

1шт.

4

0

PLATE, SAFETY,RADIATOR CAP

SN: 50001-UP

1шт.

5

0

PLATE, INSTRUCTION,ENGINE OIL

SN: 50001-UP

1шт.

6

0

PLATE, SAFETY,BRAKE OIL

SN: 50001-UP

1шт.

7

0

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 50001-UP

1шт.

8

0

PLATE, SAFETY,BATTERY CABLE

SN: 50001-UP

1шт.

|$9

417-93-21320

PLATE KIT

SN: 50001-UP

1шт.

9

0

PLATE, OPERATING,STARTING SWITCH

SN: 50001-UP

1шт.

10

0

PLATE, NAME,FUSE

SN: 50001-UP

1шт.

11

0

PLATE, SAFETY,BEFORE OPERATING

SN: 50001-UP

1шт.

12

0

PLATE, SAFETY,BRAKE PEDAL

SN: 50001-UP

1шт.

13

0

PLATE, SAFETY,WORK EQUIPMENT LEVER LOCK

SN: 50001-UP

1шт.

14

0

PLATE, SAFETY,INSPECTION

SN: 50001-UP

1шт.

15

0

PLATE, OPERATING,WORK EQUIPMENT LEVER

SN: 50001-UP

1шт.

16

0

PLATE, OPERATING,LOCK LEVER

SN: 50001-UP

1шт.

17

0

PLATE, CAUTION,PARKING BRAKE

SN: 50001-UP

1шт.

18

417-93-21330

PLATE, MARK,WA180

SN: 50001-UP

2шт.

19

417-93-21220

PLATE, MARK,AVANCE LOADER

SN: 50001-UP

2шт.

20

417-93-21140

PLATE, MARK,KOMATSU

SN: 50001-UP

1шт.

21

417-93-21150

PLATE, STRIPE,L.H.

SN: 50001-UP

1шт.

22

417-93-21160

PLATE, STRIPE,R.H.

SN: 50001-UP

1шт.

23

417-93-21350

CHART, OIL

SN: 50001-UP

1шт.

24

09602-10010

PLATE, NAME,(LIMITED SUPPLY)

SN: 50001-UP

1шт.

24

04418-13060

SCREW

SN: 50001-UP

4шт.

25

417-93-21340

PLATE, NAME,INSTRUMENT PANEL

SN: 50001-UP

1шт.

26

09960-01001

PLATE, MARK,LIFT HERE

SN: 50001-UP

4шт.

27

09659-53000

PLATE, SAFETY

SN: 50001-UP

2шт.

28

416-S99-2110

PLATE,(WITH BOOM SHOCK ABSORBING)

SN: 50001-UP

1шт.

29

417-54-24550

PLATE, CAUTION,(WITH REAR FENDER) (OP)

SN: 50001-UP

2шт.
