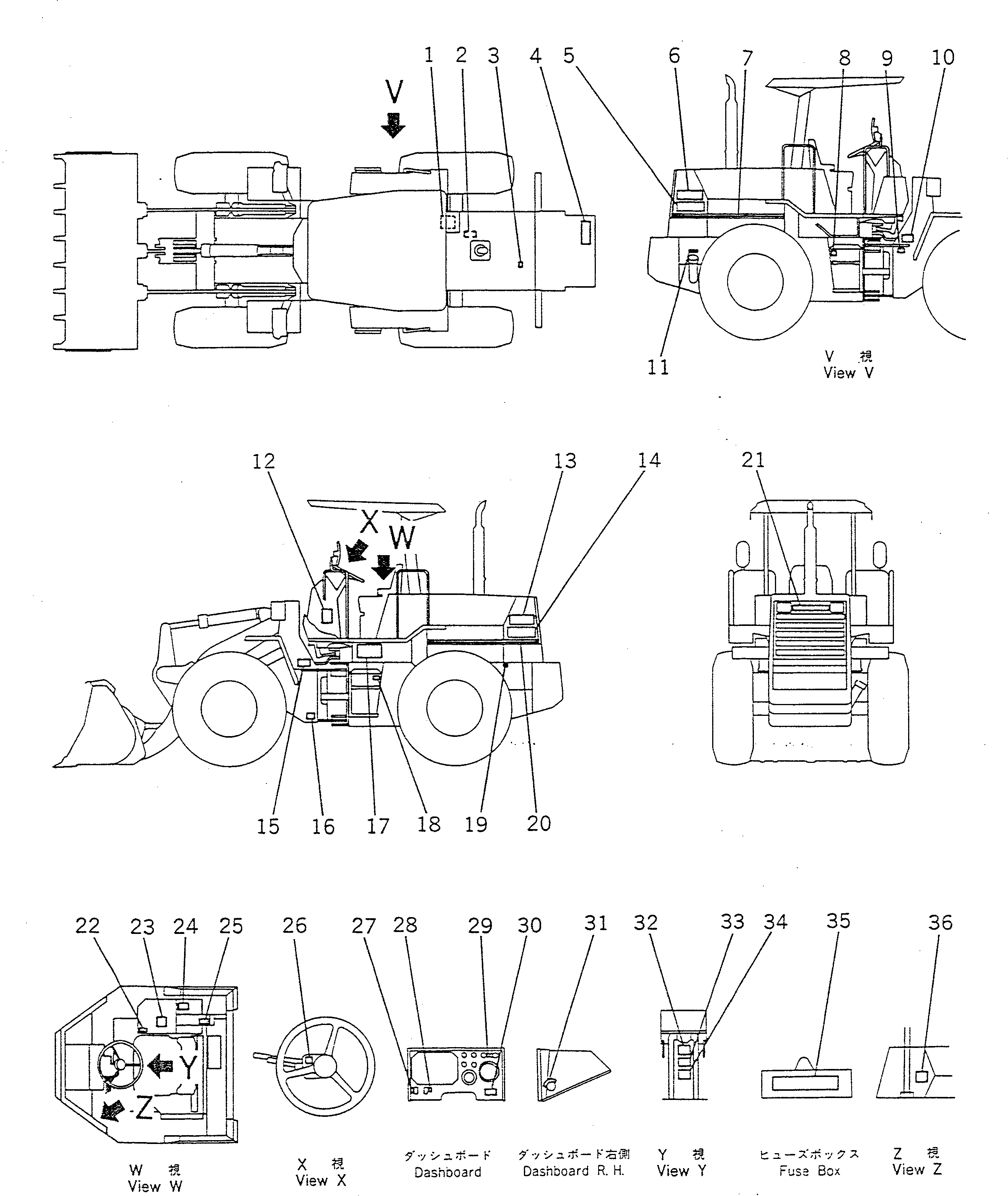

Запчасти Komatsu WA150-1 МАРКИРОВКА (ЯПОН.) (С НАВЕСОМ)(№7-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09637-00161

PLATE¤ INSTRUCTION,AIR CLEANER

SN: 10001-UP

1шт.

2

418-93-11360

PLATE¤ CAUTION

SN: 20001-UP

1шт.

3

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

4

417-93-11150

PLATE¤ CAUTION,BATTERY

SN: 10001-UP

1шт.

5

417-93-11361

PLATE¤ MARK,WA150

SN: 30723-UP

1шт.

6

416-93-11460

PLATE¤ NAME,AVANCE

SN: 30723-UP

1шт.

7

416-93-11430

STRIPE

SN: 10001-UP

1шт.

8

09653-00100

PLATE¤ SAFETY,HYDRAULIC

SN: 10001-UP

1шт.

9

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|9

04418-13060

SCREW

SN: 10001-UP

4шт.

10

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

1шт.

11

09101-00100

PLATE¤ INSTRUCTION,FUEL

SN: 10001-UP

1шт.

12

417-93-11251

PLATE,DATA

SN: 30035-UP

1шт.

13

416-93-11460

PLATE¤ NAME,AVANCE

SN: 30723-UP

1шт.

14

417-93-11361

PLATE¤ MARK,WA150

SN: 30723-UP

1шт.

15

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

1шт.

16

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

17

417-93-11114

CHART¤ OIL

SN: 20094-UP

1шт.

18

419-93-11210

PLATE¤ CAUTION,OIL INSPECTION

SN: 10001-UP

1шт.

19

362-54-17180

PLATE¤ CAUTION,FAN

SN: 10001-UP

1шт.

20

416-93-11430

STRIPE

SN: 10001-UP

1шт.

21

09690-C0355

PLATE¤ MARK,KOMATSU

SN: 30723-UP

1шт.

22

09685-00004

PLATE¤ OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

23

417-93-11121

PLATE¤ OPERATING,LOADER CONTROL

SN: 10001-UP

1шт.

24

419-93-11190

PLATE¤ CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

25

362-54-17230

PLATE¤ CAUTION,HOSE CHANGE

SN: 10001-UP

1шт.

26

417-93-11131

PLATE¤ OPERATING,TRANSMISSION CONTROL

SN: 10001-UP

1шт.

27

416-93-11280

PLATE¤ OPERATING,PARKING LAMP SWITCH

SN: 20001-UP

1шт.

28

416-93-11260

PLATE¤ OPERATING,WORK LAMP SWITCH

SN: 10001-UP

1шт.

29

416-93-11240

PLATE¤ OPERATING,LAMP SWITCH

SN: 10001-UP

1шт.

30

424-93-11360

PLATE¤ OPERATING,ENGINE STOP

SN: 20001-UP

1шт.

31

09683-01050

PLATE¤ OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

32

421-93-11181

PLATE¤ SAFETY,OPERATING

SN: 10001-UP

1шт.

33

419-93-11220

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

34

362-54-17150

PLATE¤ CAUTION,STARTING AND OPERATING

SN: 10001-UP

1шт.

35

417-93-11313

PLATE¤ INSTRUCTION,FUSE BOX

SN: 20001-UP

1шт.

36

417-93-11140

PLATE¤ OPERATING,MONITOR PANEL

SN: 10001-UP

1шт.
