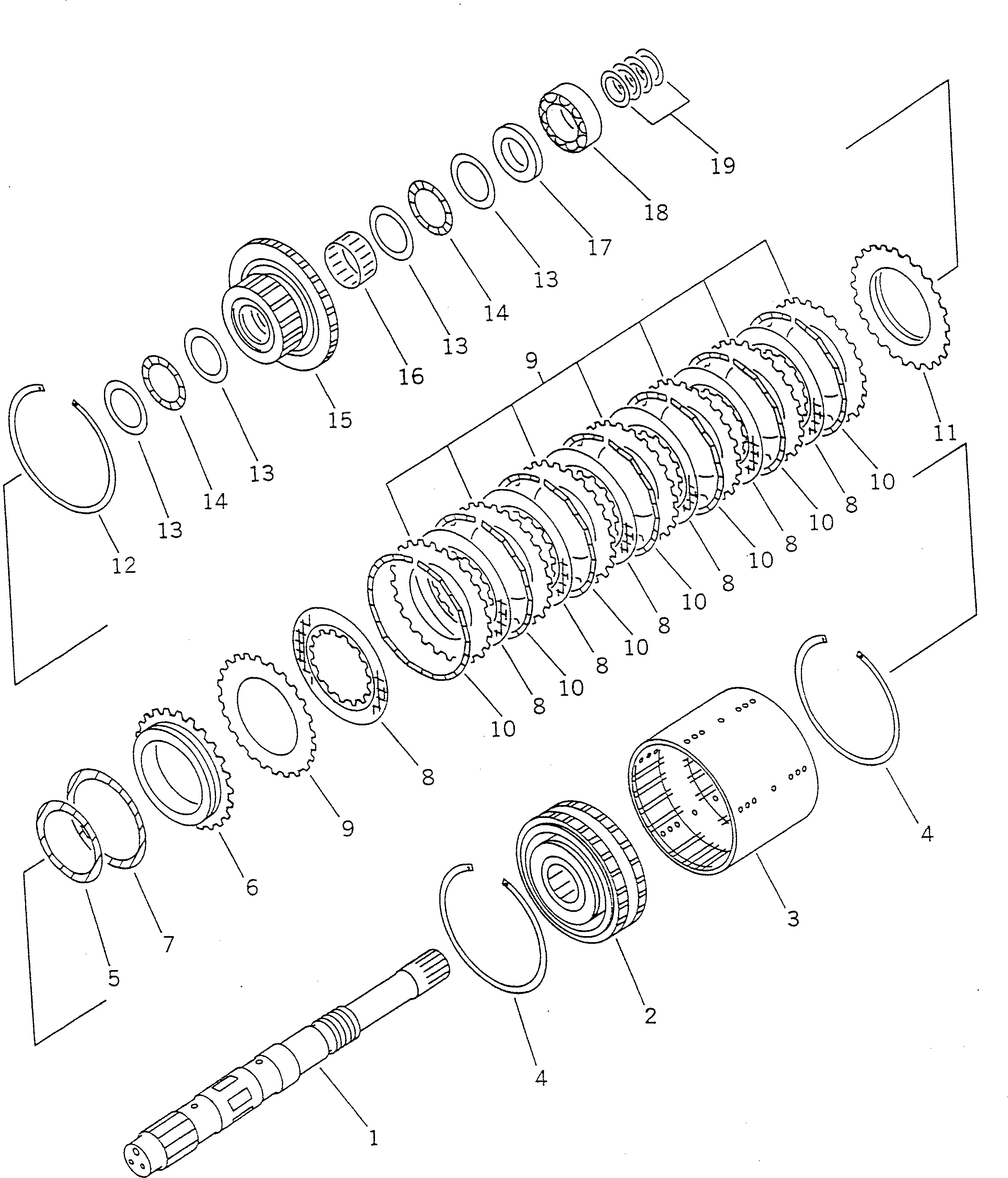

Запчасти Komatsu WA150-1 ТРАНСМИССИЯ (ПЕРЕД. МУФТА)(№-) ТРАНСМИССИЯ

|1

417-15-11003

TRANSMISSION ASS'Y

SN: 30001-UP

1шт.

|1

417-15-11002

TRANSMISSION ASS'Y

SN: 20001-29999

1шт.

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2111 TO 2171.

-1шт.

|1

417-15-12102

CLUTCH ASS'Y

SN: 20001-UP

1шт.

|$$5

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2131A AND 2132A.

-1шт.

|1

417-15-12310

SHAFT ASS'Y

SN: 20001-UP

1шт.

1

0

SHAFT,FORWARD AND REVERSE

SN: 20001-UP

1шт.

2

0

CYLINDER

SN: 20001-UP

1шт.

3

417-15-12221

HOUSING

SN: 20001-UP

1шт.

4

419-15-12140

RING,SNAP

SN: 20001-UP

2шт.

5

419-15-12210

RING,SEAL (K1)

SN: 10001-UP

1шт.

6

419-15-12221

PISTON

SN: 10001-UP

1шт.

7

419-15-12190

RING,SEAL (K1)

SN: 10001-UP

1шт.

8

419-15-12290

DISC

SN: 10001-UP

7шт.

9

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

8шт.

10

419-15-12133

SPRING,WAVE

SN: 20001-UP

7шт.

11

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

12

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

13

419-15-12240

WASHER,THRUST

SN: 10001-UP

4шт.

14

419-15-12250

BEARING,THRUST

SN: 10001-UP

2шт.

15

417-15-12231

GEAR¤ 38 TEETH,FORWARD

SN: 20001-UP

1шт.

16

419-15-12270

BEARING

SN: 10001-UP

1шт.

17

419-15-12330

SPACER

SN: 10001-UP

1шт.

18

06030-06210

BEARING

SN: 10001-UP

1шт.

19

419-15-12121

RING,SEAL (K1)

SN: 20001-UP

4шт.
