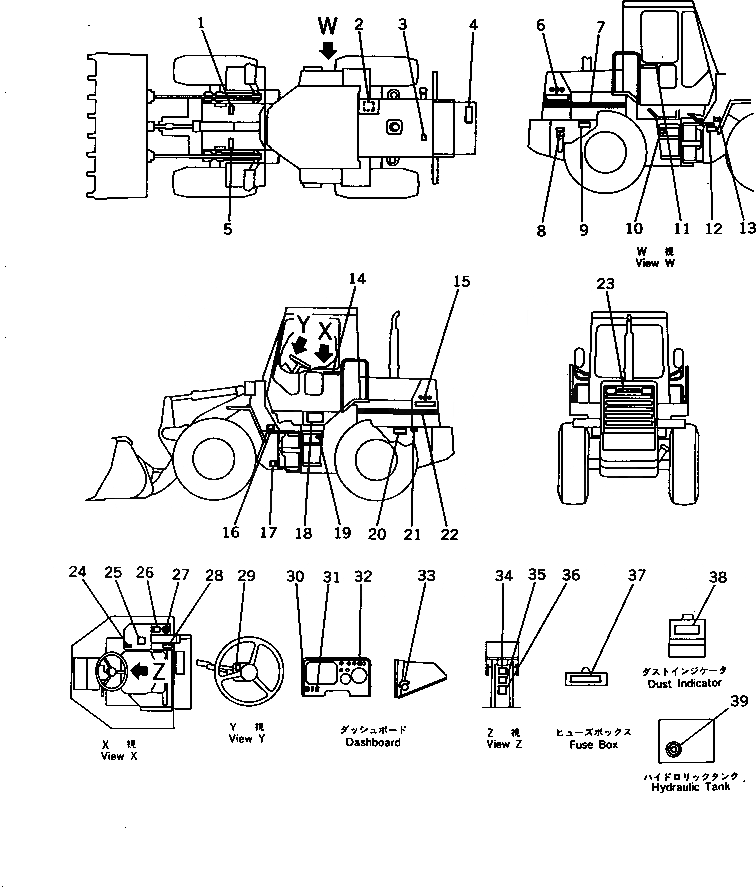

Запчасти Komatsu WA150-1 МАРКИРОВКА (ТУРЦИЯ) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

417-V08-1260

PLATE, OPERATING,LIFT HERE

SN: 10001-UP

1шт.

2

09637-00161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10001-UP

1шт.

3

417-V08-1360

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

4

417-V08-1120

PLATE, CAUTION,BATTERY

SN: 10001-UP

1шт.

5

417-V08-1260

PLATE, OPERATING,LIFT HERE

SN: 10001-UP

1шт.

6

417-93-11350

PLATE, MARK,R.H.

SN: 10001-UP

1шт.

7

416-93-11430

STRIPE

SN: 10001-UP

1шт.

8

417-V08-1350

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

9

417-V08-1260

PLATE, OPERATING,LIFT HERE

SN: 10001-UP

1шт.

10

417-V08-1370

PLATE, CAUTION,HYDRAULIC

SN: 10001-UP

1шт.

11

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

12

417-V08-1320

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

12

04418-13060

SCREW

SN: 10001-UP

4шт.

13

417-V08-1210

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

14

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

15

417-93-11360

PLATE, MARK,L.H.

SN: 10001-UP

1шт.

16

417-V08-1210

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

17

417-V08-1170

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

18

417-V08-1110

CHART, OIL

SN: 10001-UP

1шт.

19

417-V08-1230

PLATE, CAUTION,OIL INSPECTION

SN: 10001-UP

1шт.

20

417-V08-1260

PLATE, OPERATING,LIFT HERE

SN: 10001-UP

1шт.

21

417-V08-1180

PLATE, CAUTION,FAN

SN: 10001-UP

1шт.

22

416-93-11430

STRIPE

SN: 10001-UP

1шт.

23

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

24

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

25

417-93-11121

PLATE, OPERATING,LOADER CONTROL

SN: 10001-UP

1шт.

26

417-V08-1220

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

27

417-V08-1150

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

28

417-V08-1140

PLATE,FUSE BOX

SN: 10001-UP

1шт.

29

417-V08-1310

PLATE, OPERATING,TRANSMISSION CONTROL

SN: 10001-UP

1шт.

30

417-V08-1280

PLATE, OPERATING,PARKING LAMP AND T/M CUT OFF

SN: 10001-19999

1шт.

31

417-V08-1290

PLATE, OPERATING,WORK LAMP SWITCH

SN: 10001-UP

1шт.

32

417-V08-1270

PLATE, OPERATING,LAMP SWITCH

SN: 10001-UP

1шт.

33

417-V08-1380

PLATE,STARTING SWITCH

SN: 10001-UP

1шт.

34

417-V08-1190

PLATE, SAFETY

SN: 10001-UP

1шт.

35

417-V08-1240

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

36

417-V08-1160

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

37

417-V08-1250

PLATE,FUSE BOX

SN: 10001-UP

1шт.

38

417-V08-1330

PLATE, INSTRUCTION,DUST INDICATOR

SN: 10001-UP

1шт.

39

417-V08-1340

PLATE, CAUTION,HYDRAULIC TANK CAP

SN: 10001-UP

1шт.
