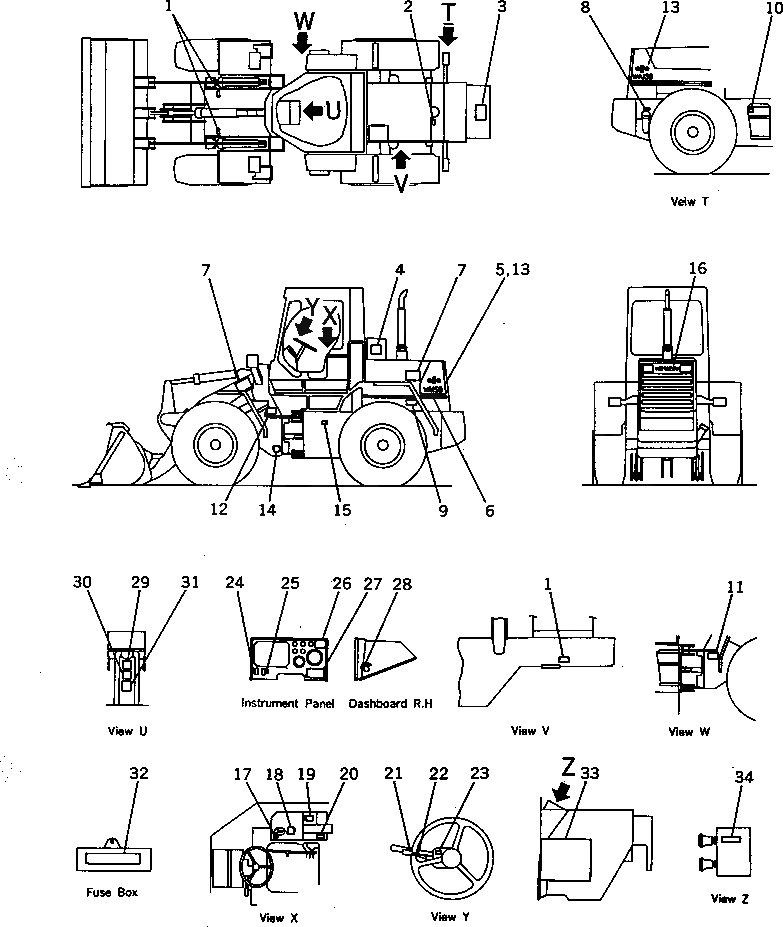

Запчасти Komatsu WA150-1 МАРКИРОВКА (TBG/ABE СПЕЦ-Я.)(№-9999) СПЕЦ. APPLICATION ЧАСТИ

1

419-93-11930

PLATE, CAUTION,LIFT HERE

SN: 10001-19999

2шт.

2

09668-02000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-19999

1шт.

3

416-93-11450

PLATE, CAUTION,BATTERY

SN: 10001-19999

1шт.

4

09637-81161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10001-19999

1шт.

5

417-93-11360

PLATE, MARK,L.H.

SN: 10001-19999

2шт.

6

416-93-11430

STRIPE

SN: 10001-19999

2шт.

7

20T-98-22240

PLATE, SAFETY,KEEP OUT

SN: 10001-19999

4шт.

8

09101-02000

PLATE, CAUTION,FUEL

SN: 10001-19999

1шт.

9

20T-98-22330

PLATE, SAFETY,FAN BELT

SN: 10001-19999

2шт.

10

09653-02000

PLATE, SAFETY,HYDRAULIC

SN: 10001-19999

1шт.

11

09602-23635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-19999

1шт.

11

04418-13060

SCREW

SN: 10001-19999

4шт.

12

362-98-11620

PLATE, CAUTION,KEEP OUT

SN: 10001-19999

2шт.

13

417-93-11350

PLATE, MARK,R.H.

SN: 10001-19999

1шт.

14

362-98-11160

PLATE, CAUTION,FRAME LOCK

SN: 10001-19999

1шт.

15

419-93-11541

PLATE, CAUTION,OIL INSPECTION

SN: 10001-19999

1шт.

16

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-19999

1шт.

17

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 10001-19999

1шт.

18

417-93-11121

PLATE, OPERATING,LOADER CONTROL

SN: 10001-19999

1шт.

19

419-93-11571

PLATE, CAUTION,BRAKE OIL

SN: 10001-19999

1шт.

20

416-93-11350

PLATE,FUSE BOX

SN: 10001-19999

1шт.

21

417-93-11170

PLATE

SN: 10001-19999

1шт.

22

417-93-11160

PLATE

SN: 10001-19999

1шт.

23

417-93-11131

PLATE, OPERATING,TRANSMISSION CONTROL

SN: 10001-19999

1шт.

24

417-93-11540

PLATE, OPERATING,PARKING LAMP SWITCH

SN: 10001-19999

1шт.

25

417-93-11550

PLATE, OPERATING,WORK LAMP SWITCH

SN: 10001-19999

1шт.

26

417-93-11531

PLATE, OPERATING,LAMP SWITCH

SN: 10001-19999

1шт.

27

09649-02001

PLATE, INSTRUCTION,ENGINE STOP

SN: 10001-19999

1шт.

28

09683-21050

PLATE, OPERATING,STARTING SWITCH

SN: 10001-19999

1шт.

29

419-93-11520

PLATE, SAFETY

SN: 10001-19999

1шт.

30

419-93-11531

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-19999

1шт.

31

362-98-11150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-19999

1шт.

32

417-93-11520

PLATE,FUSE BOX

SN: 10001-19999

1шт.

33

417-93-11421

CHART, OIL

SN: 10001-19999

1шт.

34

416-93-11520

PLATE,FUSE BOX

SN: 10001-19999

1шт.
