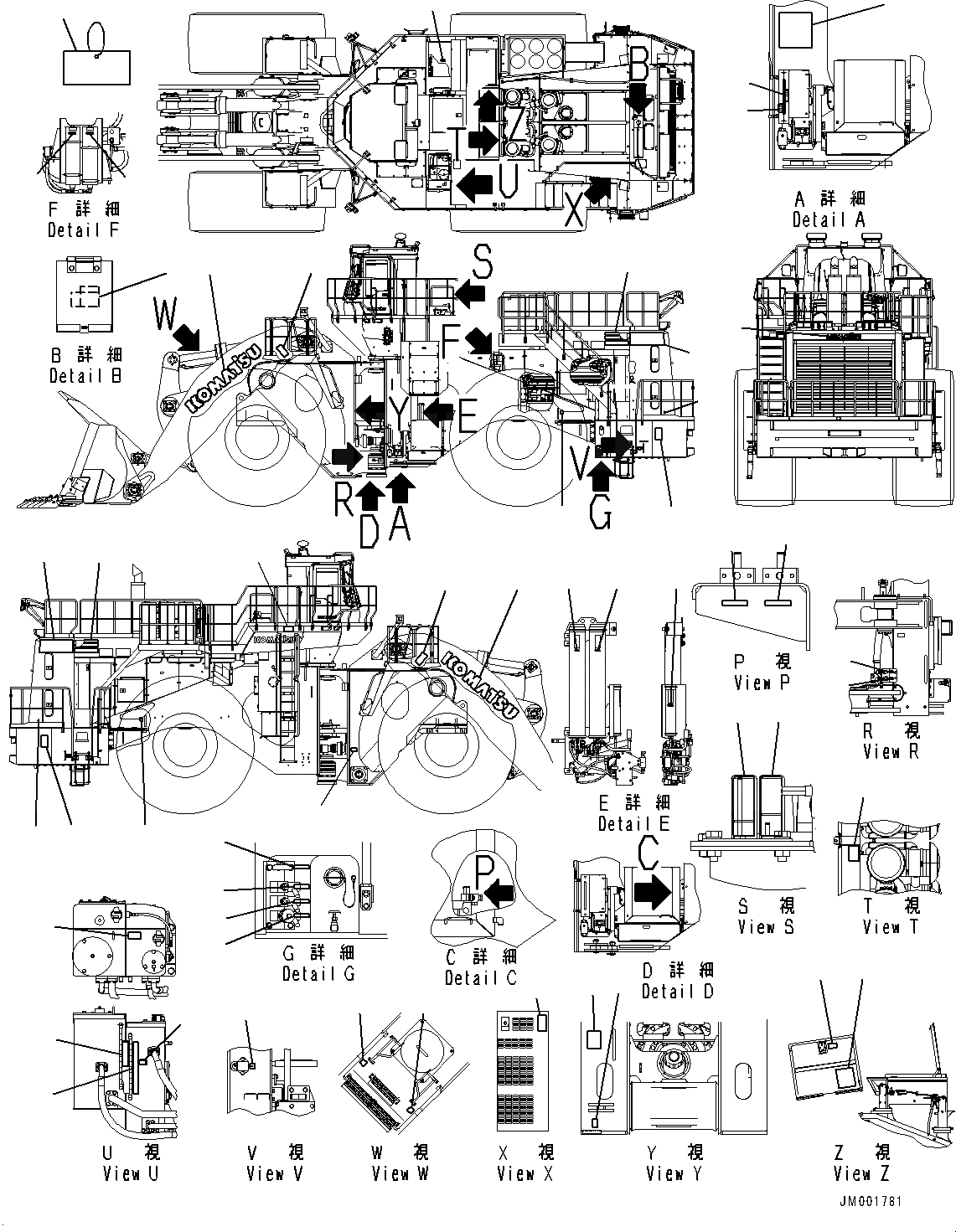

Запчасти Komatsu WA1200-6 МАРКИРОВКА, (/) (№-) МАРКИРОВКА, АНГЛ., TEXT ТИП

|$0

421-93-21311

Decal Assembly

SN: 60001-UP

1шт.

1

Decal, Senter Pin Lock

SN: 60001-UP

1шт.

2

Decal, Caution, High Temp

SN: 60001-UP

1шт.

3

Decal, Caution, Hige Temp

SN: 60001-UP

1шт.

4

Decal, Caution, High Temp

SN: 60001-UP

1шт.

5

09667-03001

Plate, Caution, Rotating Object

SN: 60001-UP

2шт.

6

42C-93-11750

Plate, Caution Articurate

SN: 60001-UP

2шт.

7

42C-93-11510

Oil Chart

SN: 60001-UP

1шт.

8

09812-03000

Plate, Danger, Keep a Safe Distance

SN: 60001-UP

2шт.

9

09807-C1683

Plate, Danger, Keep Out under Work Equipment

SN: 60001-UP

2шт.

10

09960-00802

Mark, Tie Down Point

SN: 60001-UP

4шт.

11

09602-10002

Plate, Name (Limited Supply)

SN: 60001-UP

1шт.

11

09602-99990

Plate, Name (Limited Supply)

SN: 60001-UP

1шт.

11

04418-13060

Screw

SN: 60001-UP

4шт.

12

42C-93-11730

Mark, Komatsu Logo, Rear

SN: 60001-UP

1шт.

13

09690-P2500

Plate, Komatsu Logo

SN: 60001-UP

2шт.

14

42C-93-11710

Plate, WA1200, L.H.

SN: 60001-UP

1шт.

15

42C-93-11720

Plate, WA1200, R.H.

SN: 60001-UP

1шт.

16

09659-53000

Plate, Warning, Explosion Hazard

SN: 60001-UP

5шт.

17

427-93-21230

Plate, Air Cleaner Instruction

SN: 60001-UP

1шт.

17

42C-93-11651

Decal Assembly

SN: 60001-UP

1шт.

18

Plate, Transmission Oil Level (STOP)

SN: 60001-UP

1шт.

19

Plate, Transmission Oil Level (LOW)

SN: 60001-UP

1шт.

20

42C-93-11970

Plate, Disconnect Switch

SN: 60001-UP

2шт.

21

09811-03000

Plate, Warning, Brake Oil

SN: 60001-UP

1шт.

21

42C-93-11431

Decal Assembly

SN: 60001-UP

1шт.

22

Plate, Brake Oil Level

SN: 60001-UP

1шт.

23

Plate, Brake Cooling Oil Level

SN: 60001-UP

1шт.

24

09963-03001

Tag, Danger, Do Not Operate

SN: 60001-UP

1шт.

25

209-00-71940

Plate, Stairway Lamp

SN: 60001-UP

1шт.

25

42C-93-11321

Decal Assembly

SN: 60001-UP

1шт.

26

Plate, Brake Oil Drain

SN: 60001-UP

1шт.

27

Plate, Brake Cooling Oil Drain

SN: 60001-UP

1шт.

28

Plate, Hydraulin Oil Fill

SN: 60001-UP

1шт.

29

Plate, Transmission Oil Fill

SN: 60001-UP

1шт.

30

Plate, Radiator Drain

SN: 60001-UP

1шт.

31

Plate, Engine Oil Drain

SN: 60001-UP

1шт.

32

Plate, Emergency Fuel Shut Off

SN: 60001-UP

1шт.

33

Plate, Check Brake Oil.

SN: 60001-UP

1шт.

33

42C-93-11330

Decal Assembly

SN: 60001-UP

1шт.

34

Plate, Grease Empty

SN: 60001-UP

1шт.

35

Plate, Grease Full

SN: 60001-UP

1шт.

36

09669-0000E

Plate, Symbol, Fuel Filler

SN: 60001-UP

2шт.

37

42C-93-11670

Plate, Three Line, L.H.

SN: 60001-UP

1шт.

38

42C-93-11680

Plate, Three Line, R.H.

SN: 60001-UP

1шт.

39

427-93-21420

Plate, Emergency Ladder

SN: 60001-UP

1шт.
