Запчасти Komatsu WA1200-6 МАРКИРОВКА, (/) (№-) МАРКИРОВКА, АНГЛ.

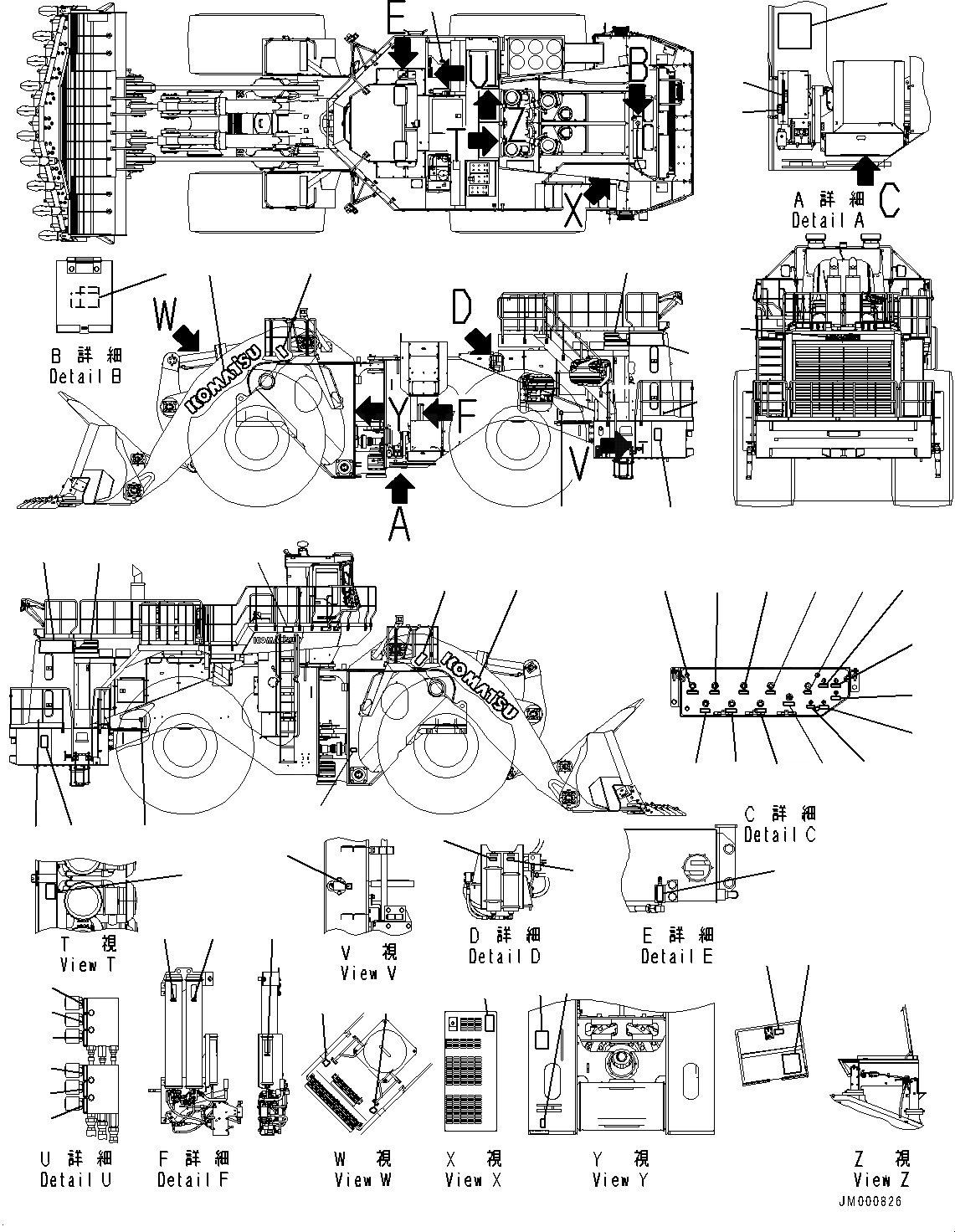

Схема запчастей Komatsu WA1200-6 - МАРКИРОВКА, (/) (№-) МАРКИРОВКА, АНГЛ.
2
41
40
1
14
7
9
11
15
36
13
10
2
29
28
27
26
25
24
23
22
21
20
19
18
17
29
13
10
42
12
9
11
8
16
36
38
38
39
37
30
35
34
33
32
31
31
38
38
38
43
3
5
6
4
11
11

Артикул

Название

Примечание

Количество

1

09162-C1201

Plate, Danger, Keep Off

SN: 60001-UP

2шт.

1

426-93-21570

Plate Assembly

SN: 60001-UP

1шт.

2

09653-A0641

Plate, Warning, High Temperature

SN: 60001-UP

2шт.

3

09808-A1201

Plate, Warning, Battery Cables

SN: 60001-UP

2шт.

4

09161-C0641

Plate, Warning, Articulation Lock

SN: 60001-UP

1шт.

5

09667-A0880

Plate, Caution, Rotating Object

SN: 60001-UP

2шт.

6

42C-93-11511

Oil Chart

SN: 60016-UP

1шт.

6

42C-93-11510

Oil Chart

SN: 60001-60015

1шт.

7

42C-93-11670

Plate, Three Line, L.H.

SN: 60001-UP

1шт.

8

42C-93-11680

Plate, Three Line, R.H.

SN: 60001-UP

1шт.

9

09806-C1683

Plate, Danger, Keep Away from Machine

SN: 60001-UP

2шт.

10

09807-C1683

Plate, Danger, Keep Out under Work Equipment

SN: 60001-UP

2шт.

11

09960-00802

Mark, Tie Down Point

SN: 60001-UP

4шт.

12

09602-10002

Plate, Name (Limited Supply)

SN: 60001-UP

1шт.

12

09602-99990

Plate, Name (Limited Supply)

SN: 60001-UP

1шт.

12

04418-13060

Screw

SN: 60001-UP

4шт.

13

09690-P2500

Plate, Komatsu Logo

SN: 60001-UP

2шт.

14

42C-93-11730

Mark, Komatsu Logo, Rear

SN: 60001-UP

1шт.

15

42C-93-11710

Plate, WA1200, L.H.

SN: 60001-UP

1шт.

16

42C-93-11720

Plate, WA1200, R.H.

SN: 60001-UP

1шт.

16

42C-93-11740

Decal Assembly

SN: 60001-UP

1шт.

17

Plate, Brake Cooling Oil Evac

SN: 60001-UP

1шт.

18

Plate, T/C Coolant Evac

SN: 60001-UP

1шт.

19

Plate, Radiator Coolant Evac

SN: 60001-UP

1шт.

20

Plate, Auto Grease Filling

SN: 60001-UP

1шт.

21

Plate, Brake Tank Oil Evac

SN: 60001-UP

1шт.

22

Plate, T/M Oil Evac

SN: 60001-UP

1шт.

23

Plate, Hyd. Oil Evac

SN: 60001-UP

1шт.

24

Plate, Engine Oil Evac

SN: 60001-UP

1шт.

25

Plate, T/M Oil Sample

SN: 60001-UP

1шт.

26

Plate, Hyd. Pressure Release

SN: 60001-UP

1шт.

27

Plate, Brake Oil Sample

SN: 60001-UP

1шт.

28

Plate, Hyd. Oil Sample

SN: 60001-UP

1шт.

29

Plate, Aux

SN: 60001-UP

1шт.

30

Plate, Greasing (AJSS Lever)

SN: 60001-UP

1шт.

31

Plate, Breather (Transmission)

SN: 60001-UP

1шт.

32

Plate, Breather (Torque Convertor)

SN: 60001-UP

1шт.

33

Plate, Breather (Front Axle)

SN: 60001-UP

1шт.

34

Plate, Breather (Rear Axle)

SN: 60001-UP

1шт.

35

Plate, Breather (Damper)

SN: 60001-UP

1шт.

36

09669-0000E

Plate, Symbol, Fuel Filler

SN: 60001-UP

2шт.

37

09637-A0640

Plate, Service Instruction, Air Cleaner

SN: 60001-UP

1шт.

38

09659-A057B

Plate, Warning, Explosion Hazard

SN: 60001-UP

5шт.

39

209-00-71940

Plate, Stairway Lamp

SN: 60001-UP

1шт.

39

42C-93-11651

Decal Assembly

SN: 60001-UP

1шт.

40

Plate, Transmission Oil Level (STOP)

SN: 60001-UP

1шт.

41

Plate, Transmission Oil Level (LOW)

SN: 60001-UP

1шт.

42

427-93-21420

Plate, Emergency Ladder

SN: 60001-UP

1шт.

43

42C-93-11970

Plate, Disconnect Switch

SN: 60001-UP

2шт.

Выбрано товаров: 49
