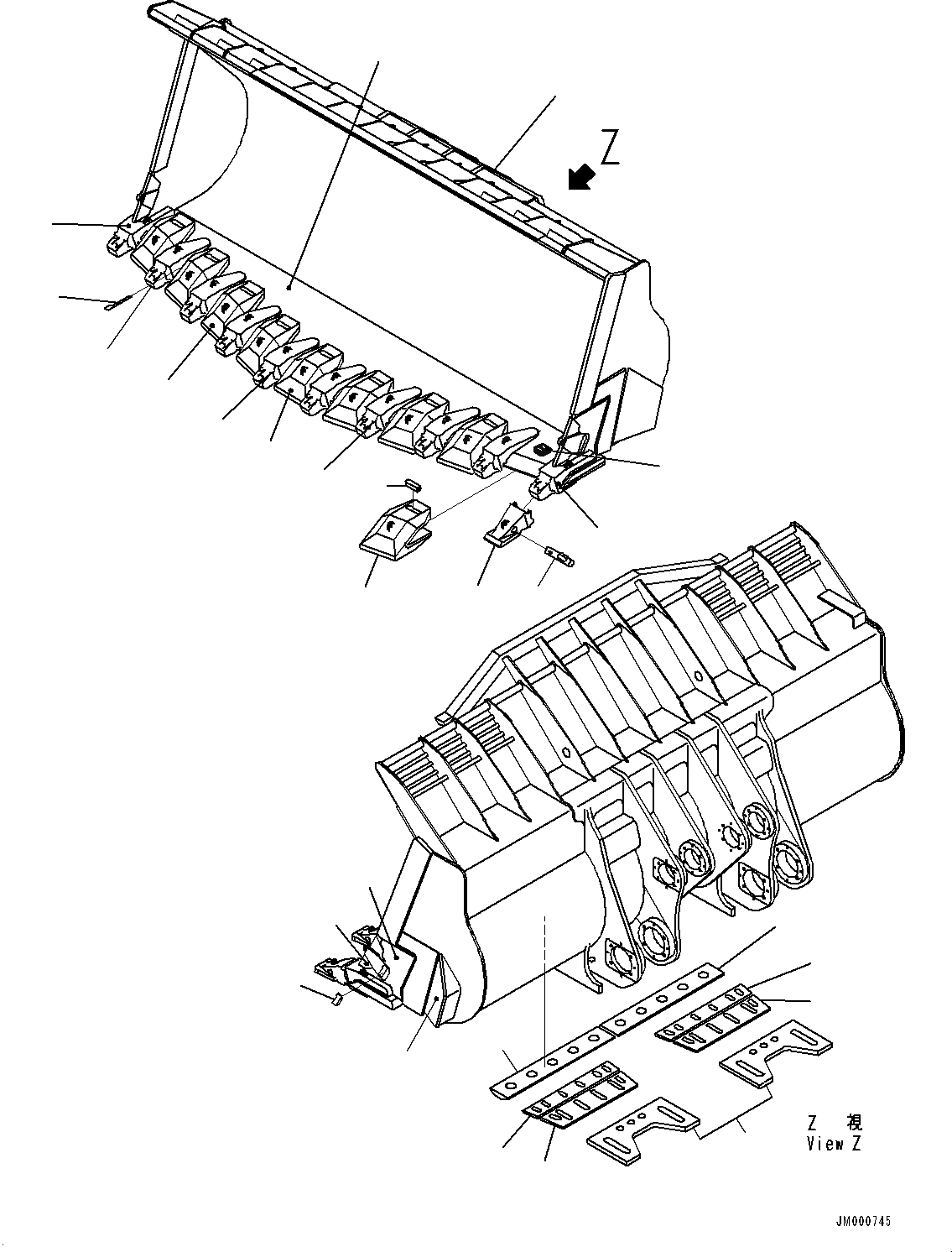

Запчасти Komatsu WA1200-6 КОВШ (№-) КОВШ, 8.M, TIP TOOTH, ДЛЯ LIME

1

42C-831-1114

Bucket, 18m3

SN: 60001-UP

1шт.

1

42C-70-12163

Edge Assembly, Welded

SN: 60001-UP

1шт.

2

42C-70-13151

Edge, Welded

SN: 60001-UP

1шт.

3

42C-70-13220

Plate, Welded

SN: 60001-UP

2шт.

4

42C-70-13160

Adapter, Center, Welded

SN: 60001-UP

2шт.

5

42C-70-13250

Adapter, L.H., Welded

SN: 60001-UP

3шт.

6

42C-70-13260

Adapter, R.H., Welded

SN: 60001-UP

3шт.

7

42C-70-13240

Plate, Welded

SN: 60001-UP

6шт.

8

42C-70-13210

Adapter, Welded

SN: 60001-UP

2шт.

9

42C-70-13130

Boss, Welded

SN: 60001-UP

11шт.

10

42C-70-13320

Plate, Welded

SN: 60001-UP

2шт.

11

42C-70-12190

Guard, Welded

SN: 60001-UP

2шт.

12

42C-70-12211

Plate, Welded

SN: 60001-UP

2шт.

13

42C-831-1251

Plate, Welded

SN: 60001-UP

2шт.

14

42C-70-12260

Plate, Welded

SN: 60001-UP

2шт.

15

42C-842-1130

Tooth

SN: 60001-UP

10шт.

16

42C-70-13120

Pin

SN: 60001-UP

10шт.

17

42C-842-1210

Protector, Welded

SN: 60001-UP

1шт.

18

42C-842-1220

Protector, Welded

SN: 60001-UP

4шт.

19

42C-842-1230

Protector, Welded

SN: 60001-UP

4шт.

20

42C-70-13230

Protector, Welded

SN: 60001-UP

2шт.

21

42C-70-13140

Pin

SN: 60001-UP

11шт.
