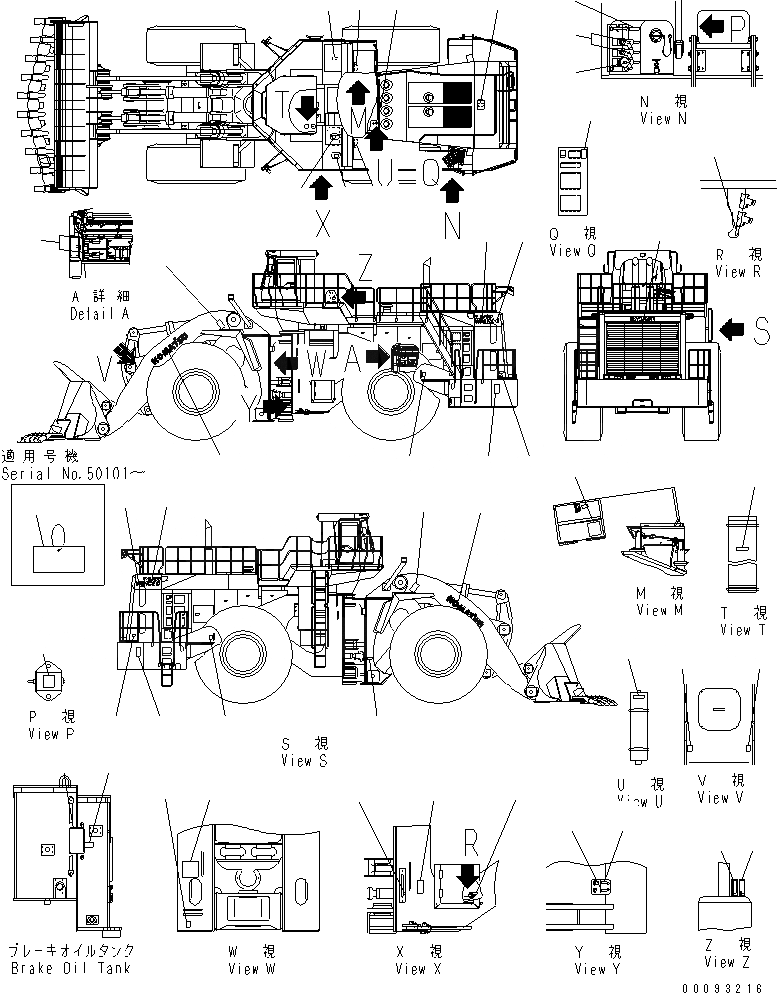

Запчасти Komatsu WA1200-3 МАРКИРОВКА (ИСПАНИЯ) (АККУМУЛЯТОР DISCONNECT ПЕРЕКЛЮЧАТЕЛЬ)(№9-) МАРКИРОВКА

|$1

421-V00-2111

PLATE KIT

SN: 50093-UP

1шт.

1

0

PLATE, CAUTION,SAFETY BAR

SN: 50093-UP

1шт.

2

0

PLATE, SAFETY,RADIATOR CAP

SN: 50093-UP

1шт.

3

0

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 50093-UP

1шт.

4

0

PLATE, CAUTION,BATTERY CABLE

SN: 50093-UP

2шт.

5

09667-01001

PLATE, SAFETY,FAN

SN: 50093-UP

2шт.

6

42C-V00-1110

PLATE, CAUTION,KEEP OUT

SN: 50093-UP

2шт.

7

42C-V00-1130

CHART, OIL

SN: 50105-UP

1шт.

7

0

CHART, OIL

SN: 50093-50104

1шт.

8

09690-C0630

PLATE, MARK,KOMATSU

SN: 50093-UP

2шт.

9

09812-01000

PLATE, SAFETY,APPROACH CAUTION

SN: 50093-UP

2шт.

10

09807-C1683

PLATE, SAFETY,FALL OF LIFT ARM

SN: 50093-UP

2шт.

11

09960-00802

MARK,HANDLING

SN: 50093-UP

4шт.

12

09602-10001

PLATE, NAME

SN: 50093-UP

1шт.

12

04418-13060

SCREW

SN: 50093-UP

4шт.

13

09690-C0900

PLATE, MARK,KOMATSU

SN: 50093-UP

1шт.

14

09690-B1600

PLATE, MARK,KOMATSU

SN: 50093-UP

2шт.

15

42C-93-11121

PLATE, MARK,WA1200

SN: 50093-UP

2шт.

16

09659-51000

PLATE, SAFETY,EXPLOSION HAZARD

SN: 50093-UP

4шт.

17

42C-V00-1140

PLATE, CAUTION,AIR CLEANER

SN: 50093-UP

1шт.

18

42C-V00-1151

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 50093-UP

1шт.

19

09811-01000

PLATE, CAUTION,BRAKE OIL

SN: 50093-UP

1шт.

20

42C-93-11812

PLATE, INSTRUCTION

SN: 50093-UP

1шт.

21

209-00-71940

PLATE,STEP LIGHT

SN: 50093-UP

1шт.

|$25

42C-V00-1120

PLATE KIT

SN: 50093-UP

1шт.

22

0

PLATE,BRAKE OIL DRAIN

SN: 50093-UP

1шт.

23

0

PLATE,BRAKE COOLING OIL DRAIN

SN: 50093-UP

1шт.

24

0

PLATE,HYDRAULIC OIL FILL

SN: 50093-UP

1шт.

25

0

PLATE,TRANSMISSION OIL FILL

SN: 50093-UP

1шт.

26

0

PLATE, INSTRUCTION,RADIATOR DRAIN

SN: 50093-UP

1шт.

27

0

PLATE, INSTRUCTION,ENGINE OIL DRAIN

SN: 50093-UP

1шт.

28

0

PLATE,EMERGENCY FUEL SHUT-OFF

SN: 50093-UP

1шт.

29

0

PLATE,CHECK BRAKE OIL

SN: 50093-UP

1шт.

|$34

42C-93-11330

PLATE KIT

SN: 50093-UP

1шт.

30

0

PLATE, NAME,GREASE FULL

SN: 50093-UP

1шт.

31

0

PLATE, NAME,GREASE EMPTY

SN: 50093-UP

1шт.

32

09842-A0481

PLATE, CAUTION,ENGINE START WITH JUMPER

SN: 50093-UP

2шт.

33

42C-V00-1220

PLATE

SN: 50093-UP

2шт.

34

09963-A1640

TAG,DO NOT OPERATE

SN: 50101-UP

1шт.

35

09667-41000

PLATE, SAFETY

SN: 50103-UP

1шт.

36

09669-0000E

PLATE, CAUTION,FUEL TANK

SN: 50093-UP

2шт.
