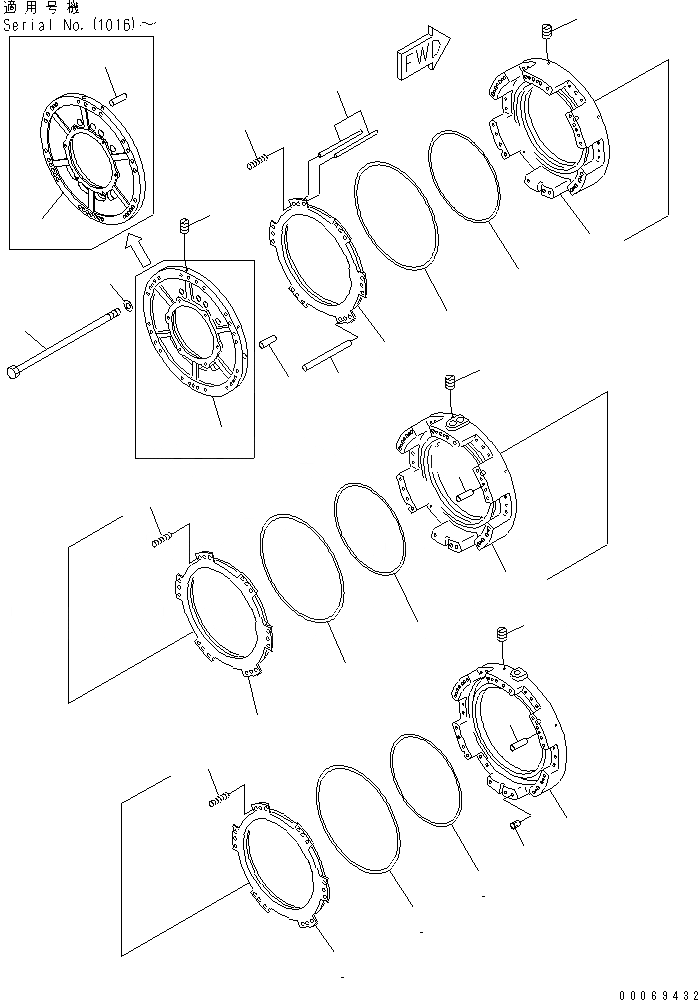

Запчасти Komatsu WA1200-3 ТРАНСМИССИЯ КОЖУХ ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$14

42C-13-10014

TORQUE FLOW A.

SN: 50089-UP

1шт.

|$15

0

TORQUE FLOW A.

SN: 50081-50088

1шт.

|$16

0

TORQUE FLOW A.

SN: (50081-50087)

1шт.

|$17

0

TORQUE FLOW A.

SN: 50073-50080

1шт.

|$18

0

TORQUE FLOW A.

SN: (50073-50074)

1шт.

|$19

0

TORQUE FLOW A.

SN: 50064-50072

1шт.

|$20

42C-13-10008

TORQUE FLOW A.

SN: 50060-50063

1шт.

|$21

0

TORQUE FLOW A.

SN: (50060-50061)

1шт.

|$22

0

TORQUE FLOW A.

SN: 50036-50059

1шт.

|$23

0

TORQUE FLOW A.

SN: (50036-50051)

1шт.

|$24

0

TORQUE FLOW A.

SN: (1021)-050035

1шт.

|$25

0

TORQUE FLOW A.

SN: (1014)-(1020)

1шт.

|$26

0

TORQUE FLOW A.

SN: 50001-(1013)

1шт.

|$$15

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4310-51A0 TO F4320-72A0.

-1шт.

|$39

42C-15-11012

TRANSMISSION ASS'Y

SN: 50089-UP

1шт.

|$40

0

TRANSMISSION ASS'Y

SN: 50081-50088

1шт.

|$41

0

TRANSMISSION ASS'Y

SN: (50081-50087)

1шт.

|$42

0

TRANSMISSION ASS'Y

SN: 50073-50080

1шт.

|$43

0

TRANSMISSION ASS'Y

SN: (50073-50074)

1шт.

|$44

0

TRANSMISSION ASS'Y

SN: 50064-50072

1шт.

|$45

42C-15-11006

TRANSMISSION ASS'Y

SN: 50036-50063

1шт.

|$46

0

TRANSMISSION ASS'Y

SN: (50036-50061)

1шт.

|$47

0

TRANSMISSION ASS'Y

SN: (50036-50051)

1шт.

|$48

0

TRANSMISSION ASS'Y

SN: (1014)-050035

1шт.

|$49

0

TRANSMISSION ASS'Y

SN: 50001-(1013)

1шт.

|$$27

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-72A0.

-1шт.

|$54

19M-15-00050

HOUSING ASS'Y

SN: 50001-UP

1шт.

1

0

HOUSING

SN: 50001-UP

1шт.

2

145-14-11320

PLUG

SN: 50001-UP

3шт.

3

19M-15-19220

RING (K3)

SN: 50001-UP

1шт.

4

562-15-11380

SLEEVE

SN: 50001-UP

24шт.

5

19M-15-12751

PISTON

SN: (101142)-UP

1шт.

5

19M-15-12750

PISTON

SN: 50001-(101141)

1шт.

6

19M-15-19250

RING (K3)

SN: 50001-UP

1шт.

7

04020-01842

PIN,DOWEL

SN: 50001-UP

2шт.

8

195-15-15850

SPRING

SN: 50001-UP

6шт.

|$65

19M-15-00040

HOUSING ASS'Y

SN: 50001-UP

1шт.

9

0

HOUSING

SN: 50001-UP

1шт.

10

145-14-11320

PLUG

SN: 50001-UP

3шт.

11

19M-15-19230

RING (K3)

SN: 50001-UP

1шт.

12

19M-15-12760

PISTON

SN: 50001-UP

1шт.

13

19M-15-19240

RING (K3)

SN: 50001-UP

1шт.

14

04020-01842

PIN,DOWEL

SN: 50001-UP

2шт.

15

19M-15-11270

PIN

SN: 50001-UP

6шт.

16

19M-15-11291

PIN

SN: 50077-UP

12шт.

16

0

PIN

SN: 50001-50076

12шт.

17

198-43-17680

SPRING

SN: 50001-UP

6шт.

|$78

19M-15-00032

HOUSING ASS'Y

SN: 50081-UP

1шт.

|$79

19M-15-00031

HOUSING ASS'Y

SN: (1016)-050080

1шт.

|$80

19M-15-00030

HOUSING ASS'Y

SN: 50001-(1015)

1шт.

18

0

HOUSING

SN: 50081-UP

1шт.

18

0

HOUSING

SN: (1016)-050080

1шт.

18

0

HOUSING

SN: 50001-(1015)

1шт.

19

568-15-11380

PLUG

SN: 50001-UP

3шт.

20

19M-15-19220

RING (K3)

SN: 50001-UP

1шт.

21

19M-15-12751

PISTON

SN: (101142)-UP

1шт.

21

19M-15-12750

PISTON

SN: 50001-(101141)

1шт.

22

19M-15-19250

RING (K3)

SN: 50001-UP

1шт.

23

04020-01842

PIN,DOWEL

SN: (1016)-UP

1шт.

24

04020-01842

PIN,DOWEL

SN: 50001-UP

2шт.

25

195-22-11151

SPRING

SN: 50001-UP

6шт.

|$92

42C-15-00011

HOUSING ASS'Y

SN: (1016)-UP

1шт.

|$93

42C-15-00010

HOUSING ASS'Y

SN: 50001-(1015)

1шт.

26

0

HOUSING

SN: (1016)-UP

1шт.

26

0

HOUSING

SN: 50001-(1015)

1шт.

27

19M-15-11320

PLUG

SN: 50001-UP

3шт.

28

19M-15-11251

BOLT

SN: 50001-UP

24шт.

29

566-15-11250

WASHER

SN: 50001-UP

24шт.
