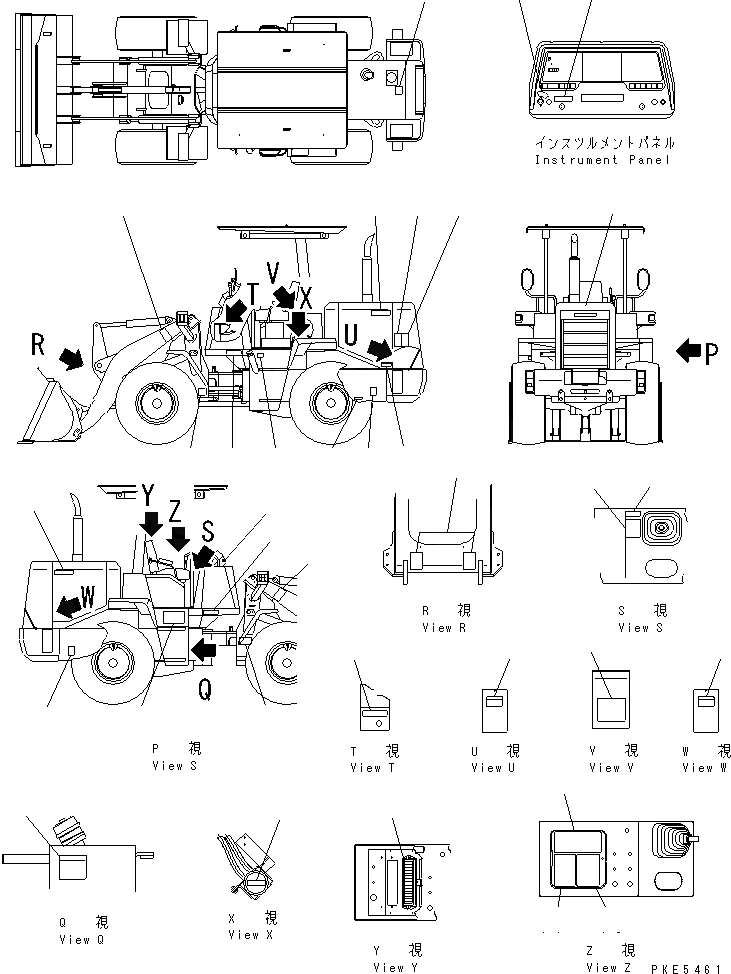

Запчасти Komatsu WA120-3CS МАРКИРОВКА МАРКИРОВКА

|$2

417-V02-2110

PLATE KIT

SN: 10004-UP

1шт.

1

0

PLATE, SAFETY,KEEP OUT

SN: 10004-UP

2шт.

2

0

PLATE, SAFETY,SAFETY BAR

SN: 10004-UP

1шт.

3

0

PLATE, SAFETY,RADIATOR CAP

SN: 10004-UP

1шт.

4

0

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 10004-UP

1шт.

5

0

PLATE, SAFETY,BRAKE OIL

SN: 10004-UP

1шт.

6

0

PLATE, SAFETY,BATTERY CABLE

SN: 10004-UP

1шт.

7

0

PLATE, INSTRUCTION,FUEL

SN: 10004-UP

1шт.

8

0

PLATE, INSTRUCTION,ENGINE OIL

SN: 10004-UP

1шт.

|$11

417-V02-2120

PLATE KIT

SN: 10004-UP

1шт.

9

0

PLATE, SAFETY,BEFORE OPERATING

SN: 10004-UP

1шт.

10

0

PLATE, SAFETY,INSPECTION

SN: 10004-UP

1шт.

11

0

PLATE, SAFETY,WORK EQUIPMENT LEVER LOCK

SN: 10004-UP

1шт.

12

0

PLATE, OPERATING,WORK EQUIPMENT LEVER

SN: 10004-UP

1шт.

13

0

PLATE, OPERATING,LOCK LEVER

SN: 10004-UP

1шт.

14

0

PLATE, NAME,PARKING BRAKE RELIESE

SN: 10004-UP

1шт.

15

0

PLATE, OPERATING,STARTING SWITCH

SN: 10004-UP

1шт.

16

416-93-21310

PLATE, MARK,WA120

SN: 10004-UP

2шт.

17

09690-B0315

PLATE, MARK,KOMATSU

SN: 10004-UP

1шт.

18

416-93-21510

CHART, OIL

SN: 10004-UP

1шт.

19

416-93-21520

PLATE, NAME,FUSE

SN: 10004-UP

1шт.

20

416-93-21530

PLATE, OPERATING

SN: 10004-UP

1шт.

21

09806-C0880

PLATE, SAFETY,KEEP A SAFE DISTANCE

SN: 10004-UP

2шт.

22

09667-A0880

PLATE, SAFETY,FAN

SN: 10004-UP

2шт.

23

09807-C0880

PLATE, SAFETY,KEEP OUT

SN: 10004-UP

2шт.

24

09960-01001

PLATE, MARK

SN: 10004-UP

4шт.

25

09808-00500

PLATE, SAFETY

SN: 10004-UP

1шт.

26

421-V02-1180

PLATE

SN: 10004-UP

1шт.

27

421-V02-1190

PLATE

SN: 10004-UP

1шт.

28

09602-10010

PLATE, NAME,(LIMITED SUPPLY)

SN: 10004-UP

1шт.

28

04418-13060

SCREW

SN: 10004-UP

4шт.

29

416-93-21540

PLATE

SN: 10004-UP

1шт.
