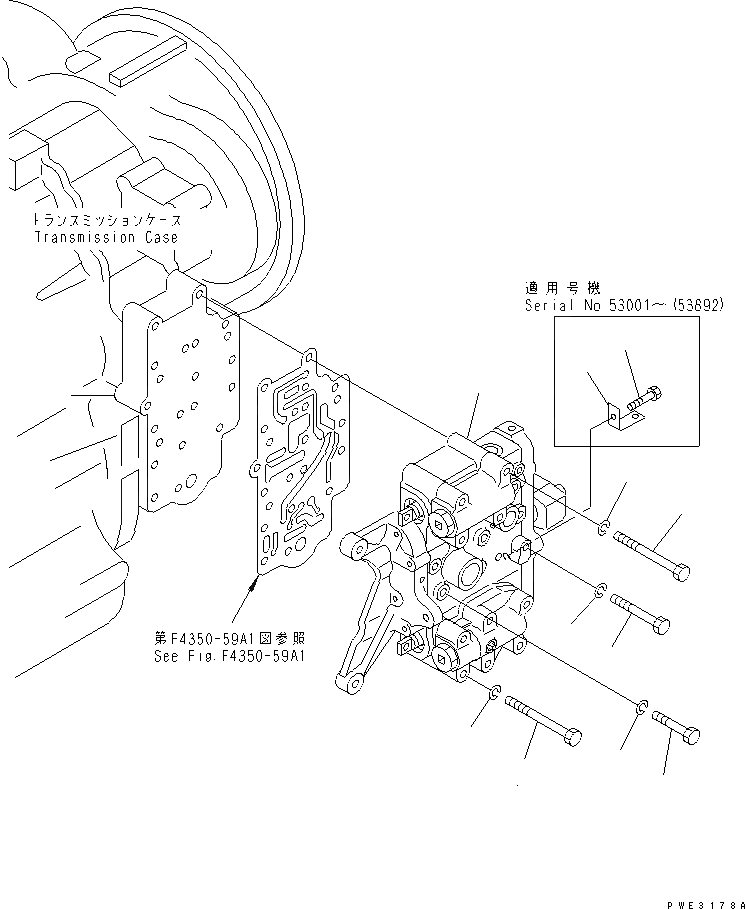

Запчасти Komatsu WA120-3 КЛАПАН УПРАВЛЕНИЯ ТРАНСМИССИЕЙ (/) (КРЕПЛЕНИЕ) (ДЛЯ -SPEED) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$7

416-15-21113

TRANSMISSION ASS'Y

SN: (154486)-UP

1шт.

|$8

0

TRANSMISSION ASS'Y

SN: ((154486)-00054253)

1шт.

|$9

416-15-21111

TRANSMISSION ASS'Y

SN: 53001-(154485)

1шт.

|$$5

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0.

-1шт.

|$11

416-15-21152

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: (154486)-UP

1шт.

|$12

0

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: ((154486)-00054253)

1шт.

|$13

416-15-21150

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 53001-(154485)

1шт.

|$$9

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-58A0, 59A2, AND F4350-60A0 TO F4350-68A0.

-1шт.

1

416-15-15003

CONTROL VALVE ASS'Y

SN: 53001-UP

1шт.

2

01010-81075

BOLT

SN: 53001-UP

6шт.

3

01010-81085

BOLT

SN: 53001-UP

1шт.

4

01011-81015

BOLT

SN: 53001-UP

10шт.

5

01602-21030

WASHER,SPRING

SN: 53001-UP

17шт.

6

417-15-14561

PLATE

SN: 53001-(53892)

1шт.

7

01010-81045

BOLT

SN: 53001-(53892)

1шт.
