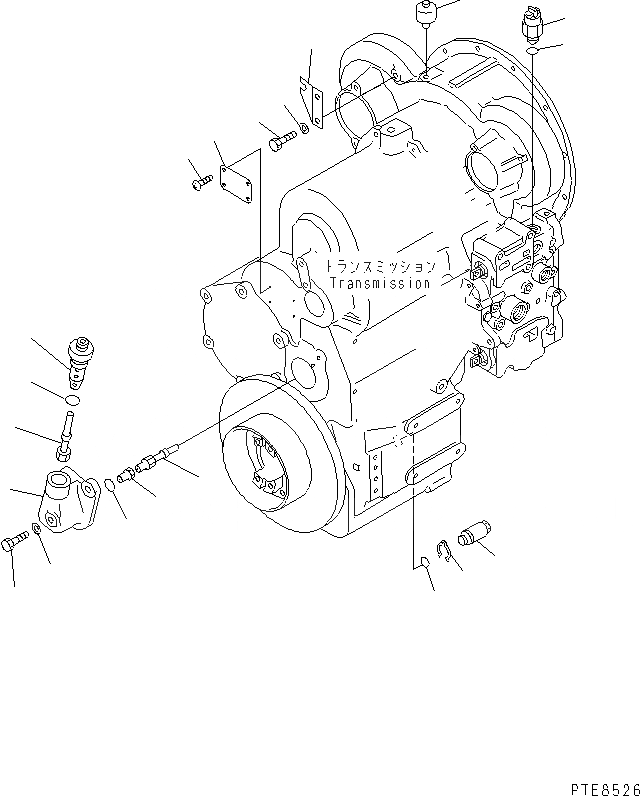

Запчасти Komatsu WA120-3 ТРАНСМИССИЯ (ОНОСЯЩИЕСЯ К НЕЙ ЧАСТИ)(ДЛЯ -SPEED) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$7

416-15-21113

TRANSMISSION ASS'Y

SN: (52935)-UP

1шт.

|$8

0

TRANSMISSION ASS'Y

SN: ((52935)-00054253)

1шт.

|$9

416-15-21111

TRANSMISSION ASS'Y

SN: 53001-(52934)

1шт.

|$$5

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0.

-1шт.

|$11

416-15-21152

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: (52935)-UP

1шт.

|$12

0

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: ((52935)-00054253)

1шт.

|$13

416-15-21150

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 53001-(52934)

1шт.

|$$9

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-58A0, 59A2, AND F4350-60A0 TO F4350-68A0.

-1шт.

1

07030-00252

BREATHER

SN: 53001-UP

1шт.

2

419-15-18241

PLUG

SN: 53001-UP

1шт.

3

419-15-18251

RING,SNAP

SN: 53001-UP

1шт.

4

07002-02434

O-RING (K1)

SN: 53001-UP

1шт.

5

09608-05080

PLATE, NAME,(LIMITED SUPPLY)

SN: 53001-UP

1шт.

6

04418-13060

SCREW

SN: 53001-UP

4шт.

7

417-15-13511

GEAR

SN: 53001-UP

1шт.

8

417-15-13530

GEAR

SN: 53001-UP

1шт.

9

417-15-13432

SLEEVE

SN: 53001-UP

1шт.

10

417-15-13452

COVER

SN: 53001-UP

1шт.

11

417-15-13460

BUSHING

SN: 53001-UP

1шт.

12

07002-02434

O-RING (K1)

SN: 53001-UP

1шт.

13

07000-02075

O-RING (K1)

SN: 53001-UP

1шт.

14

01010-81235

BOLT

SN: 53001-UP

2шт.

15

01643-31232

WASHER

SN: 53001-UP

2шт.

16

417-15-15610

SWITCH,BACK

SN: 53001-UP

1шт.

17

07002-02034

O-RING (K2)

SN: 53001-UP

1шт.

18

417-43-11420

PLATE

SN: 53001-UP

1шт.

19

01010-81025

BOLT

SN: 53001-UP

1шт.

20

01643-31032

WASHER

SN: 53001-UP

1шт.
