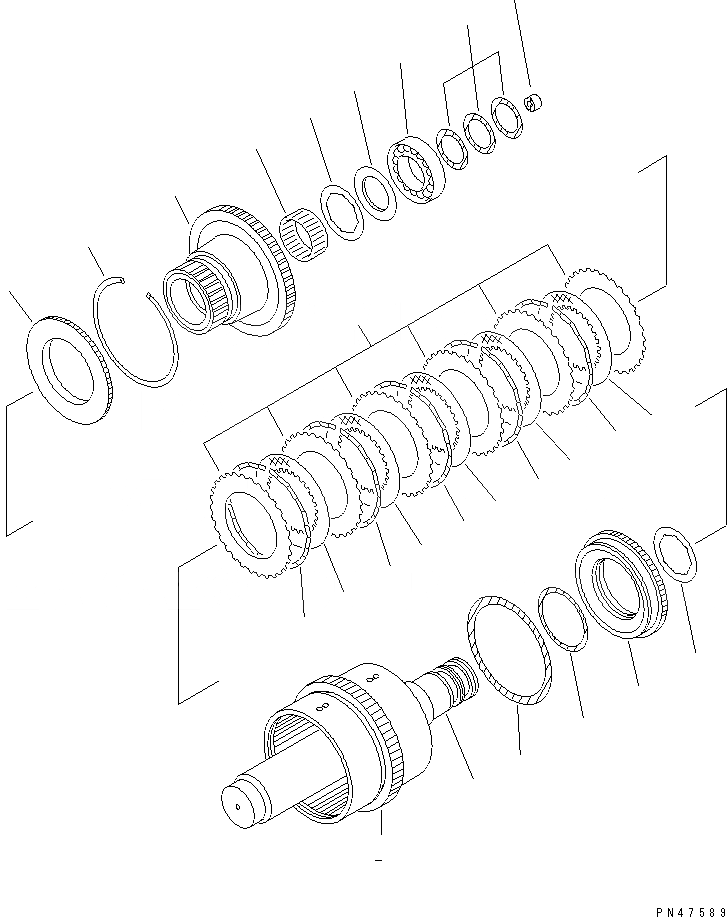

Запчасти Komatsu WA120-3 ТРАНСМИССИЯ (4 МУФТА)(№-) ТРАНСМИССИЯ

|$0

714-11-10000

TRANSMISSION ASS'Y

SN: 50001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2301 TO 2371.

-1шт.

|$2

714-11-12030

CLUTCH ASS'Y,3RD AND 4TH

SN: 50001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2325 AND 2326.

-1шт.

|$4

714-11-12170

SHAFT ASS'Y

SN: 50001-UP

1шт.

1

0

SHAFT

SN: 50001-UP

1шт.

2

0

HOUSING ASS'Y

SN: 50001-UP

1шт.

3

714-11-12660

PISTON,4TH

SN: 50001-UP

1шт.

4

714-08-19210

RING,SEAL

SN: 50001-UP

1шт.

5

714-11-19230

RING,SEAL

SN: 50001-UP

1шт.

6

714-08-19710

DISC

SN: 50001-UP

5шт.

7

714-08-19730

PLATE,SEPARATE

SN: 50001-UP

6шт.

8

714-08-12910

SPRING,WAVE

SN: 50001-UP

5шт.

9

714-08-12610

PLATE,END

SN: 50001-UP

1шт.

10

714-08-19510

RING,SNAP

SN: 50001-UP

1шт.

11

714-11-12460

GEAR, 51 TEETH,4TH

SN: 50001-UP

1шт.

12

419-15-12270

BEARING,NEEDLE

SN: 50001-UP

1шт.

13

714-11-19510

WASHER,THRUST

SN: 50001-UP

2шт.

14

714-11-12710

SPACER

SN: 50001-UP

1шт.

15

06040-06210

BEARING

SN: 50001-UP

1шт.

16

714-11-12850

SCREW

SN: 50001-UP

1шт.

17

419-15-12122

RING,SEAL

SN: 50001-UP

3шт.
