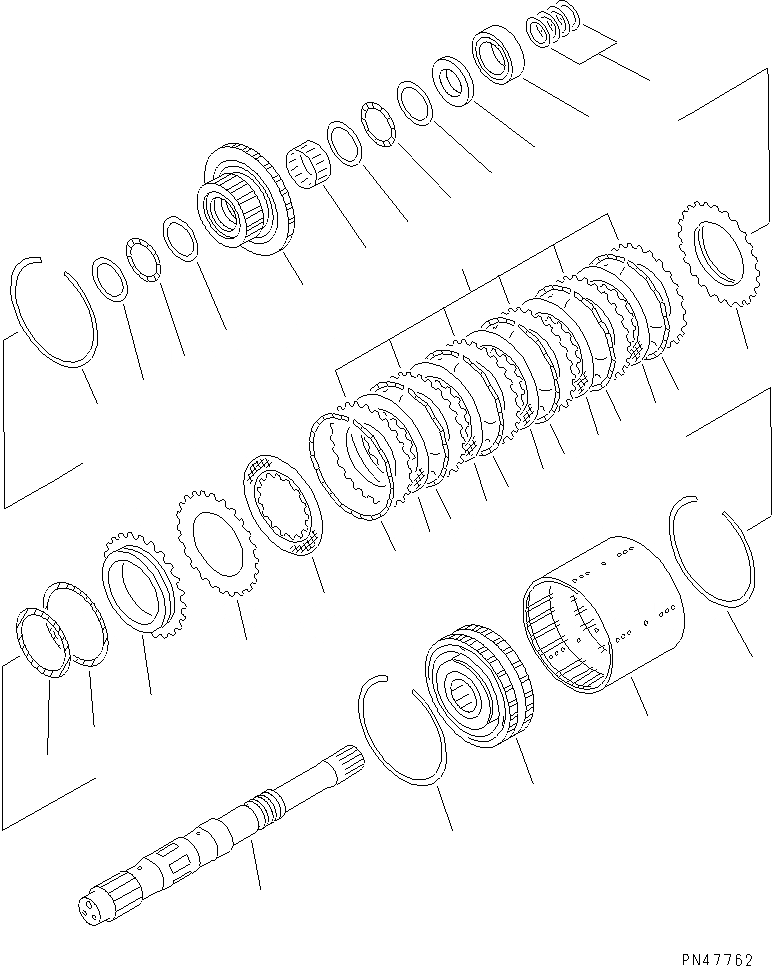

Запчасти Komatsu WA120-3 ТРАНСМИССИЯ (ПЕРЕД. МУФТА)(№-) ТРАНСМИССИЯ

|$0

416-15-21110

TRANSMISSION ASS'Y

SN: 50001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271.

-1шт.

|$2

416-15-12101

CLUTCH ASS'Y,FORWARD AND REVERSE

SN: 50001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2221 AND 2222.

-1шт.

|$4

417-15-12310

SHAFT ASS'Y

SN: 50001-UP

1шт.

1

0

SHAFT,FORWARD AND REVERSE

SN: 50001-UP

1шт.

2

0

CYLINDER

SN: 50001-UP

1шт.

3

0

HOUSING

SN: 50001-UP

1шт.

4

419-15-12140

RING,SNAP

SN: 50001-UP

2шт.

5

419-15-12210

RING,SEAL (K1)

SN: 50001-UP

1шт.

6

419-15-12221

PISTON,FORWARD

SN: 50001-UP

1шт.

7

419-15-12190

RING,SEAL (K1)

SN: 50001-UP

1шт.

8

7720-50-2590

DISC

SN: 50001-UP

6шт.

9

419-15-12310

PLATE,SEPARATE

SN: 50001-UP

7шт.

10

56D-15-12710

SPRING,WAVE

SN: .-UP

6шт.

10

0

SPRING,WAVE

SN: 50001-.

6шт.

11

419-15-12281

PLATE,END

SN: 50001-UP

1шт.

12

419-15-12140

RING,SNAP

SN: 50001-UP

1шт.

13

419-15-12240

WASHER,THRUST

SN: 50001-UP

4шт.

14

419-15-12250

BEARING,THRUST

SN: 50001-UP

2шт.

15

417-15-12231

GEAR, 38 TEETH,FORWARD

SN: 50001-UP

1шт.

16

419-15-12270

BEARING

SN: 50001-UP

1шт.

17

419-15-12330

SPACER

SN: 50001-UP

1шт.

18

06030-06210

BEARING

SN: 50001-UP

1шт.

19

419-15-12121

RING,SEAL (K1)

SN: 50001-UP

4шт.
