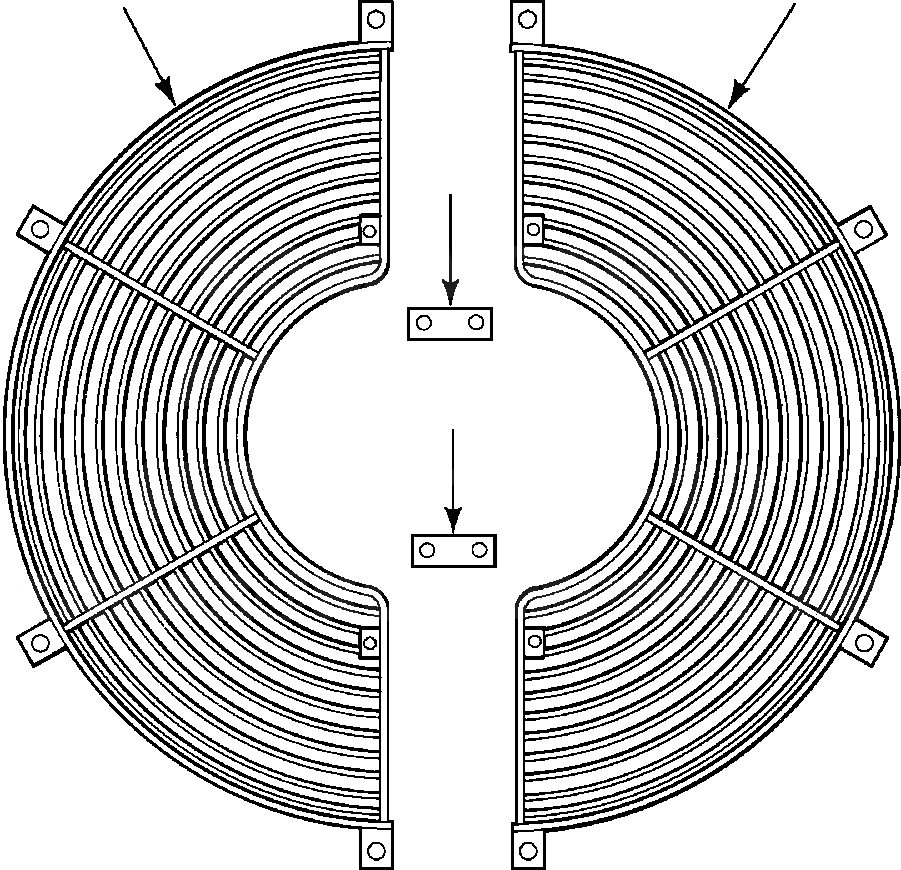

Запчасти Komatsu WA120-1LC ЗАЩИТА ВЕНТИЛЯТОРА КОМПОНЕНТЫ ДВИГАТЕЛЯ & ЭЛЕКТРИКА

1

416-03-11620

GUARD-RH, FINGER

1шт.

|$1

416-03-11410

GUARD-LH, FINGER

1шт.

|$2

01435-01016

BOLT, GUARD MOUNTING

a

8шт.

|$3

416-03-A1110

GUARD-RH, FINGER (OPTIONAL CONSTRUCTION)

b

1шт.

|$4

416-03-A1100

GUARD-LH, FINGER (OPTIONAL CONSTRUCTION)

1шт.

|$5

01010-51020

BOLT, GUARD MOUNTING

8шт.

|$6

255 53 R1

WASHER

8шт.

2

416-03-11420

BAR, GUARD MOUNTING

2шт.

|$8

01435-00812

BOLT, BAR MOUNTING

4шт.

|$15

-1шт.

|$10

F1 - FINGER GUARDS MUST BE USED IN SETS WITH BOLTS FOR MOUNTING,

-1шт.

|$11

DO NOT INTERMIX FINGER GUARDS.

-1шт.

|$16

-1шт.

|$13

F2 - FINGER GUARDS MUST BE USED IN SETS WITH BOLTS AND WASHERS

-1шт.

|$14

FOR MOUNTING, DO NOT INTERMIX FINGER GUARDS.

-1шт.
