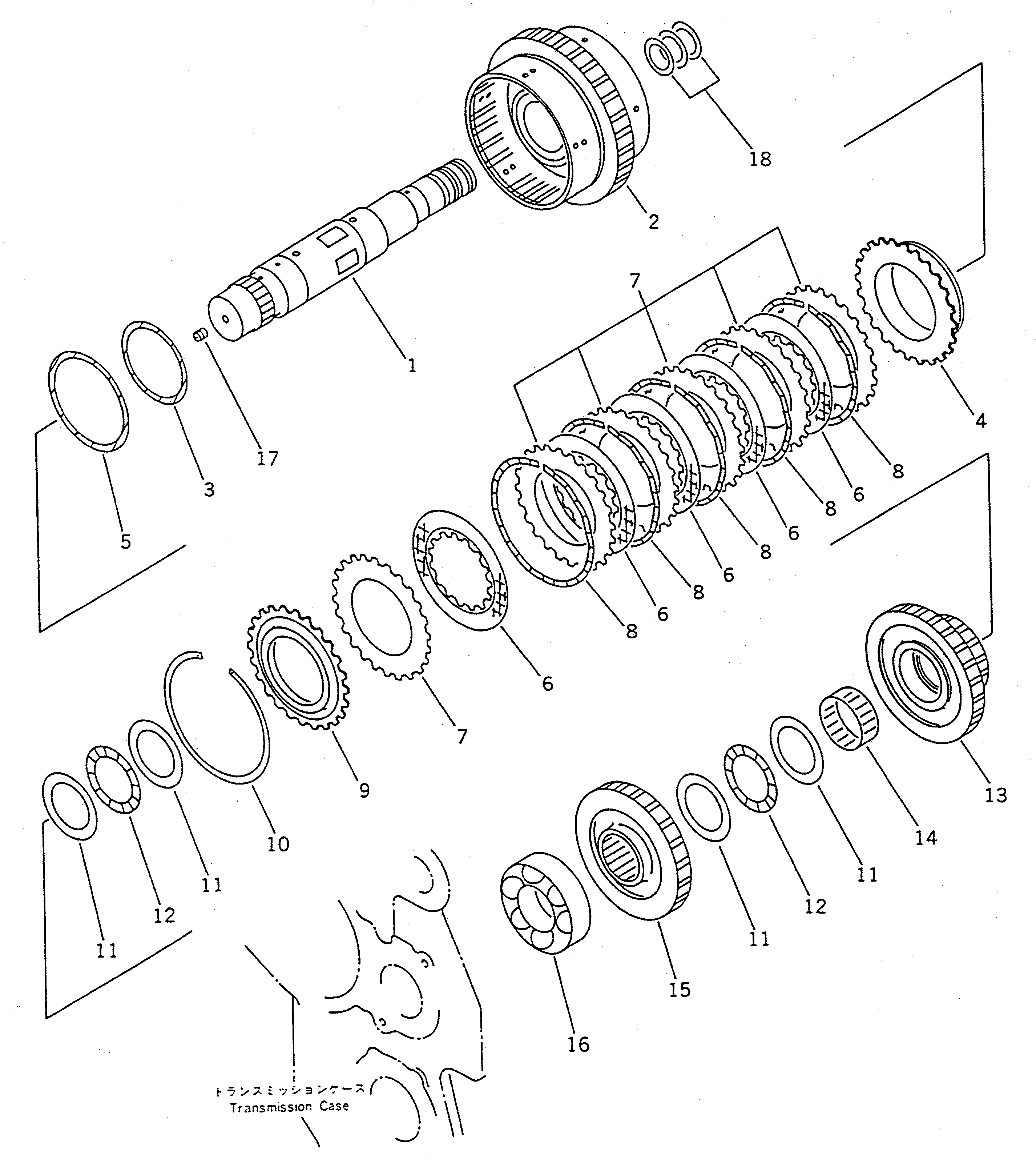

Запчасти Komatsu WA100SS-1 ТРАНСМИССИЯ (2 МУФТА)(№-) ТРАНСМИССИЯ

|1

416-15-11003

TRANSMISSION ASS'Y

SN: 30001-UP

1шт.

|1

416-15-11002

TRANSMISSION ASS'Y

SN: 20001-29999

1шт.

|1

416-15-13102

CLUTCH ASS'Y,2ND AND 3RD

SN: .-UP

1шт.

|1

0

CLUTCH ASS'Y,2ND AND 3RD

SN: 20001-.

1шт.

|1

416-15-13112

SHAFT ASS'Y

SN: .-UP

1шт.

|1

416-15-13111

SHAFT ASS'Y

SN: 20001-.

1шт.

1

0

SHAFT,2ND AND 3RD

SN: 20001-UP

1шт.

2

0

HOUSING

SN: .-UP

1шт.

|2

0

HOUSING

SN: 20001-.

1шт.

3

419-15-12210

RING,SEAL (KIT)

SN: 10001-UP

1шт.

4

419-15-13191

PISTON,2ND

SN: 10001-UP

1шт.

5

419-15-12580

RING,SEAL (KIT)

SN: 10001-UP

1шт.

6

419-15-12290

DISC

SN: 20001-UP

5шт.

7

419-15-12310

PLATE,SEPARATE

SN: 20001-UP

6шт.

8

419-15-12133

SPRING,WAVE

SN: 20001-UP

5шт.

9

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

10

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

11

419-15-12680

WASHER,THRUST

SN: 10001-UP

4шт.

12

419-15-12670

BEARING,THRUST

SN: 10001-UP

2шт.

13

417-15-13221

GEAR,2ND

SN: 10001-UP

1шт.

14

419-15-13150

BEARING

SN: 10001-UP

1шт.

15

417-15-13241

GEAR

SN: 10841-UP

1шт.

16

06030-06312

BEARING

SN: 10001-UP

1шт.

17

419-15-12750

ORIFICE

SN: 10001-UP

1шт.

18

419-15-12121

RING,SEAL (KIT)

SN: 20001-UP

3шт.
