Артикул
Название
Примечание
Количество
|$$1
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
|1
416-15-21010
TRANSMISSION ASS'Y
SN: 50001-UP
1шт.
|$$3
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271.
-1шт.
|1
416-15-12101

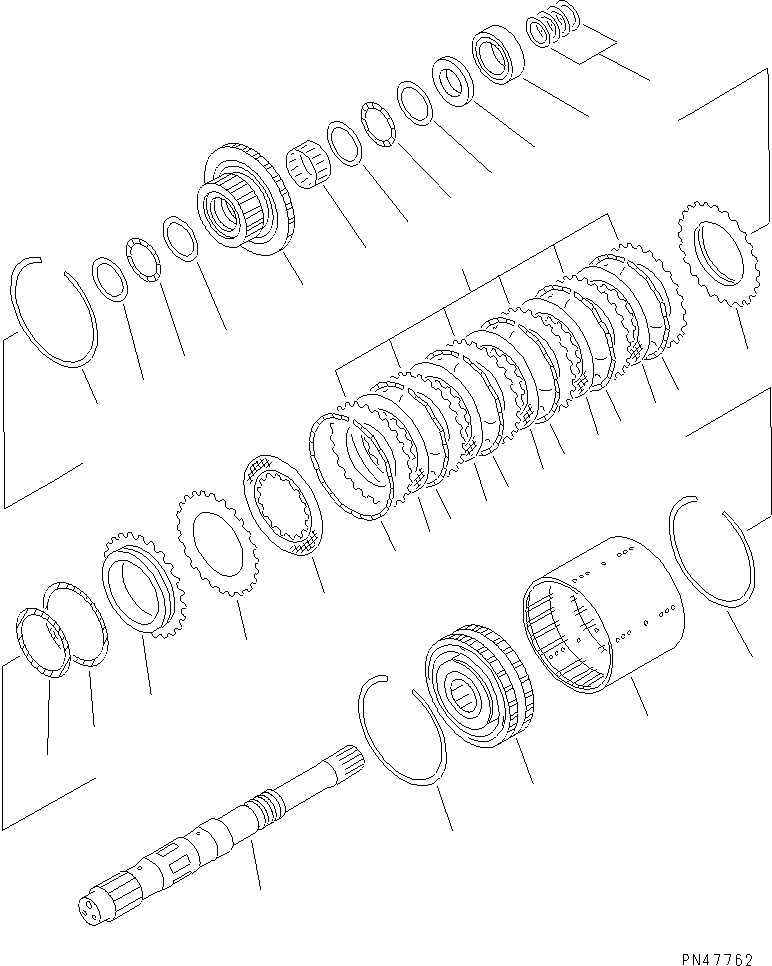

CLUTCH ASS'Y,FORWARD AND REVERSE
SN: 50001-UP
1шт.
|$$5
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2221 AND 2222.
-1шт.
|1
417-15-12310
SHAFT ASS'Y
SN: 50001-UP
1шт.
1
0
SHAFT,FORWARD AND REVERSE
SN: 50001-UP
1шт.
2
0
CYLINDER
SN: 50001-UP
1шт.
3
0
HOUSING
SN: 50001-UP
1шт.
6
419-15-12221
PISTON,FORWARD
SN: 50001-UP
1шт.
11
419-15-12281
PLATE,END
SN: .-UP
1шт.
|11
0
PLATE,END
SN: 50001-.
1шт.
13
419-15-12240
WASHER,THRUST
SN: 50001-UP
4шт.
14
419-15-12250
BEARING,THRUST
SN: 50001-UP
2шт.
15
417-15-12231
GEAR¤ 38 TEETH,FORWARD
SN: 50001-UP
1шт.
Выбрано товаров: 28
