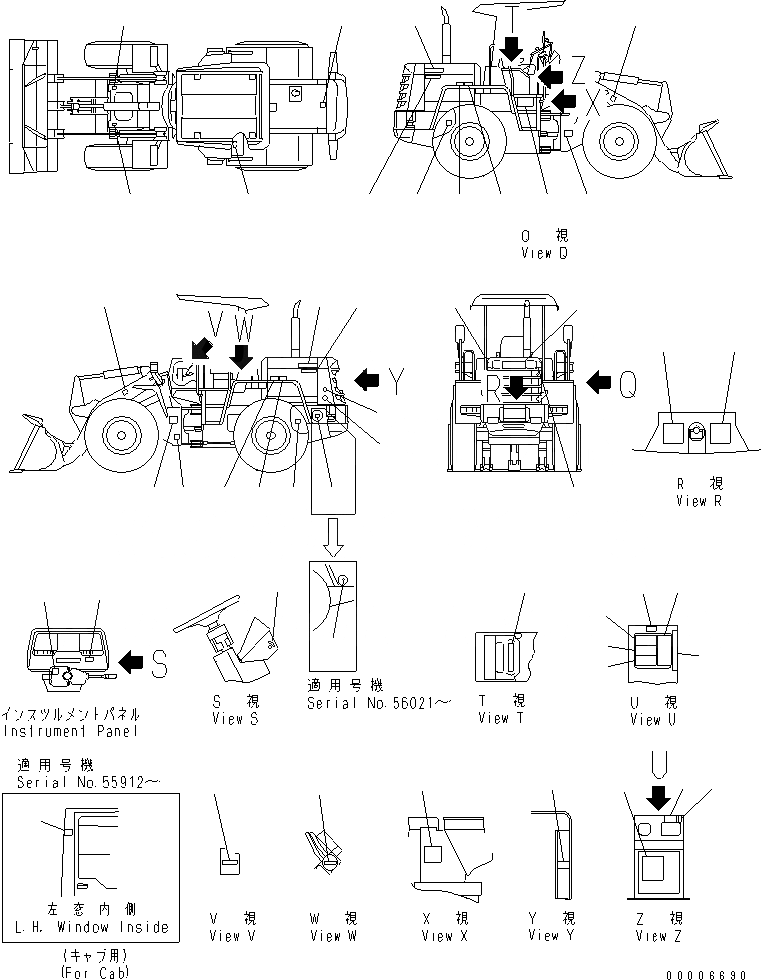

Запчасти Komatsu WA100-3A МАРКИРОВКА(№-) МАРКИРОВКА

|1

417-93-21510

PLATE KIT

SN: 54432-UP

1шт.

1

0

PLATE¤ SAFETY,KEEP OUT

SN: 54432-UP

2шт.

2

0

PLATE¤ SAFETY,SAFETY BAR

SN: 54432-UP

1шт.

3

0

PLATE¤ SAFETY,KEEP OUT

SN: 54432-UP

2шт.

4

0

PLATE¤ SAFETY,RADIATOR CAP

SN: 54432-UP

1шт.

5

0

PLATE¤ SAFETY,FAN

SN: 54432-UP

2шт.

6

0

PLATE¤ SAFETY,KEEP A SAFE DISTANCE

SN: 54432-UP

2шт.

7

0

PLATE¤ SAFETY,HYDRAULIC TANK CAP

SN: 54432-UP

1шт.

8

0

PLATE¤ SAFETY,BATTERY CABLE

SN: 54432-UP

1шт.

|9

417-93-21413

PLATE KIT

SN: 54432-UP

1шт.

9

0

PLATE¤ SAFETY,BEFORE OPERATING

SN: 54432-UP

1шт.

10

0

PLATE¤ OPERATING,WORK EQUIPMENT LEVER

SN: 54432-UP

1шт.

11

0

PLATE¤ OPERATING,LOCK LEVER

SN: 54432-UP

1шт.

12

0

PLATE¤ SAFETY,BRAKE PEDAL

SN: 54432-UP

1шт.

13

0

PLATE¤ NAME,FUSE

SN: 54432-UP

1шт.

|13

0

PLATE¤ NAME,FUSE

SN: 54432-UP

1шт.

15

0

PLATE¤ OPERATING,STARTING SWITCH

SN: 54432-UP

1шт.

|15

0

PLATE¤ OPERATING,STARTING SWITCH

SN: 54432-UP

1шт.

16

0

PLATE¤ CAUTION,PARKING BRAKE

SN: 54432-UP

1шт.

17

0

PLATE¤ INSTRUCTION,BRAKE OIL

SN: 54432-UP

1шт.

18

0

PLATE¤ SAFETY,ENGINE OIL

SN: 54432-UP

1шт.

19

0

PLATE¤ SAFETY,INSPECTION

SN: 54432-UP

1шт.

20

0

PLATE¤ SAFETY,WORK EQUIPMENT LEVER LOCK

SN: 54432-UP

1шт.

21

0

PLATE¤ SAFETY,KEEP A SAFE DISTANCE

SN: 54432-UP

1шт.

22

416-93-21130

PLATE¤ MARK,WA100

SN: 53001-UP

2шт.

23

417-93-21220

PLATE¤ MARK,AVANCE LOADER

SN: 53001-UP

2шт.

24

416-93-21153

CHART¤ OIL

SN: 55001-UP

1шт.

|24

416-93-21152

CHART¤ OIL

SN: 53001-55000

1шт.

25

417-93-21141

PLATE¤ MARK,KOMATSU

SN: 53001-UP

1шт.

26

417-93-21150

PLATE¤ STRIPE,L.H.

SN: 53001-UP

1шт.

27

417-93-21160

PLATE¤ STRIPE,R.H.

SN: 53001-UP

1шт.

28

417-46-25120

PLATE

SN: 53001-UP

2шт.

29

09960-01001

PLATE¤ MARK,LIFT HERE

SN: 53001-UP

4шт.

|30

426-93-21540

PLATE KIT

SN: 54432-UP

1шт.

30

0

PLATE¤ INSTRUCTION,FUEL

SN: 54432-56020

1шт.

31

0

PLATE¤ INSTRUCTION,STEERING HOSE

SN: 54432-UP

1шт.

32

416-93-21141

PLATE¤ DATA

SN: 55119-UP

1шт.

|32

416-93-21140

PLATE¤ DATA

SN: 53001-55118

1шт.

33

417-93-11131

PLATE¤ OPERATING,TRANSMISSION CONTROL LEVER

SN: 53001-UP

1шт.

34

416-93-21170

PLATE

SN: 53183-UP

1шт.

35

416-93-21260

PLATE

SN: 55001-UP

1шт.

|35

416-93-21180

PLATE

SN: 53183-55000

1шт.

36

09971-00110

PLATE,FREON COLLECT/DESTRUCTION LAW

SN: 55912-UP

1шт.

37

09669-0000E

PLATE¤ CAUTION,DIESEL FUEL

SN: 56021-UP

1шт.
