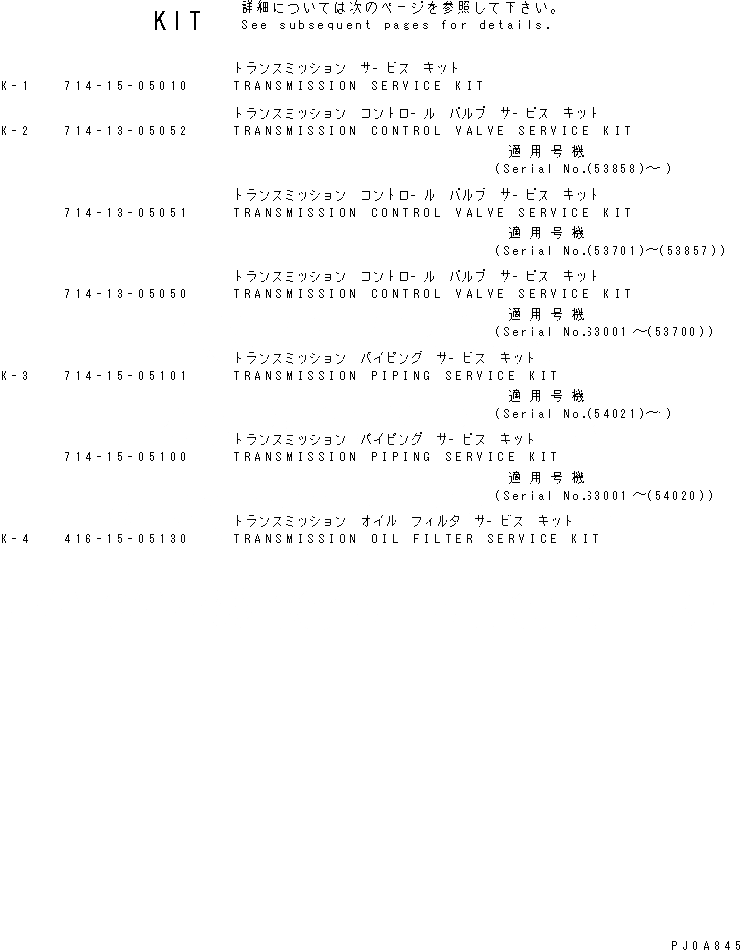

Запчасти Komatsu WA100-3-HW КОМПЛЕКТ ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

1

714-15-05010

SERVICE KIT

SN: 63001-UP

1шт.

|1

07000-02085

O-RING,(F4350-66A1A-8 )

SN: 63001-UP

1шт.

|1

07000-05260

O-RING,(F4350-51A1 -16 )

SN: 63001-UP

1шт.

|1

07002-02434

O-RING,(F4350-66A1A-3 )

SN: 63001-UP

1шт.

|1

07002-02434

O-RING,(F4350-66A1A-14 )

SN: 63001-UP

1шт.

|1

07002-02434

O-RING,(F4350-68A1 -5 )

SN: 63001-UP

1шт.

|1

07002-03334

O-RING,(F4350-68A1 -14 )

SN: 63001-UP

1шт.

|1

417-15-13690

SEAL,(F4350-56A1 -13 )

SN: 63001-UP

1шт.

|1

417-15-13690

SEAL,(F4350-56A1 -14 )

SN: 63001-UP

1шт.

|1

417-15-13790

O-RING,(F4350-56A1 -12 )

SN: 63001-UP

1шт.

|1

417-15-13810

SEAL,(F4350-56A1 -15 )

SN: 63001-UP

1шт.

|1

417-15-13810

SEAL,(F4350-56A1 -16 )

SN: 63001-UP

1шт.

|1

419-15-18131

LIQUID GASKET,(F4350-51A1 -18 )

SN: 63001-UP

1шт.

|1

714-11-18691

GASKET,(F4350-51A1 -11 )

SN: 63001-UP

1шт.

|1

714-11-19810

SEAL,(F4350-57A1 -13 )

SN: 63001-UP

1шт.

2

714-13-05052

SERVICE KIT

SN: (53858)-UP

1шт.

|2

714-13-05051

SERVICE KIT

SN: (53701)-(53857)

1шт.

|2

714-13-05050

SERVICE KIT

SN: 63001-(53700)

1шт.

|2

07000-E2016

O-RING,(F4350-62A1A-2B )

SN: (53858)-UP

1шт.

|2

07000-E2016

O-RING,(F4350-62A1A-3B )

SN: (53858)-UP

1шт.

|2

07000-01009

O-RING,(F4350-60A1A-33 )

SN: 63001-UP

1шт.

|2

07000-02010

O-RING,(F4350-62A1 -5 )

SN: 63001-(53857)

1шт.

|2

07000-02014

O-RING,(F4350-62A1A-20 )

SN: 63001-UP

2шт.

|2

07000-02014

O-RING,(F4350-63A1 -13 )

SN: 63001-UP

1шт.

|2

07000-03035

O-RING,(F4350-60A1A-32 )

SN: 63001-UP

2шт.

|2

07000-03038

O-RING,(F4350-63A1 -12 )

SN: 63001-UP

3шт.

|2

07000-72014

O-RING,(F4350-59A1 -11 )

SN: 63001-UP

2шт.

|2

07000-73025

O-RING,(F4350-59A1 -10 )

SN: 63001-UP

2шт.

|2

419-15-15741

GASKET,(F4350-60A1A-4 )

SN: 63001-UP

1шт.

|2

419-15-15751

GASKET,(F4350-60A1A-5 )

SN: 63001-UP

1шт.

|2

419-15-16541

GASKET,(F4350-61A1A-3 )

SN: 63001-UP

1шт.

|2

419-15-16551

GASKET,(F4350-61A1A-4 )

SN: 63001-UP

1шт.

|2

419-15-16811

GASKET,(F4350-62A1A-16 )

SN: 63001-UP

1шт.

|2

714-10-16960

O-RING,(F4350-62A1 -7- )

SN: 63001-(53700)

1шт.

|2

714-10-16970

O-RING,(F4350-62A1 -8- )

SN: 63001-(53700)

1шт.

|2

714-11-16850

O-RING,(F4350-62A1A-2A )

SN: (53858)-UP

1шт.

|2

714-11-16850

O-RING,(F4350-62A1A-3A )

SN: (53858)-UP

1шт.

|2

714-11-16920

GASKET,(F4350-59A1 -2 )

SN: 63001-UP

1шт.

3

714-15-05101

SERVICE KIT

SN: (54021)-UP

1шт.

|3

714-15-05100

SERVICE KIT

SN: 63001-(54020)

1шт.

|3

07000-02085

O-RING,(F4350-64A1 -2 )

SN: 63001-UP

1шт.

|3

07000-02085

O-RING,(F4350-64A1 -15 )

SN: 63001-UP

1шт.

|3

07000-73028

O-RING,(F4350-64A1 -25 )

SN: 63001-UP

1шт.

|3

07000-73035

O-RING,(F4350-64A1 -21 )

SN: 63001-UP

1шт.

|3

07002-03334

O-RING,(F4350-64A1 -33 )

SN: 63001-UP

2шт.

|3

07002-11023

O-RING,(F4350-64A1 -32B )

SN: (54021)-UP

1шт.

4

416-15-05130

SERVICE KIT

SN: 63001-(54020)

1шт.

|4

07002-01223

O-RING,(F4350-65A1 -13 )

SN: 63001-(54020)

1шт.

|4

419-15-14860

O-RING,(F4350-65A1 -8 )

SN: 63001-(54020)

1шт.

|4

419-15-14870

GASKET,(F4350-65A1 -10 )

SN: 63001-(54020)

1шт.

|4

424-16-11130

O-RING,(F4350-65A1 -5 )

SN: 63001-(54020)

1шт.
