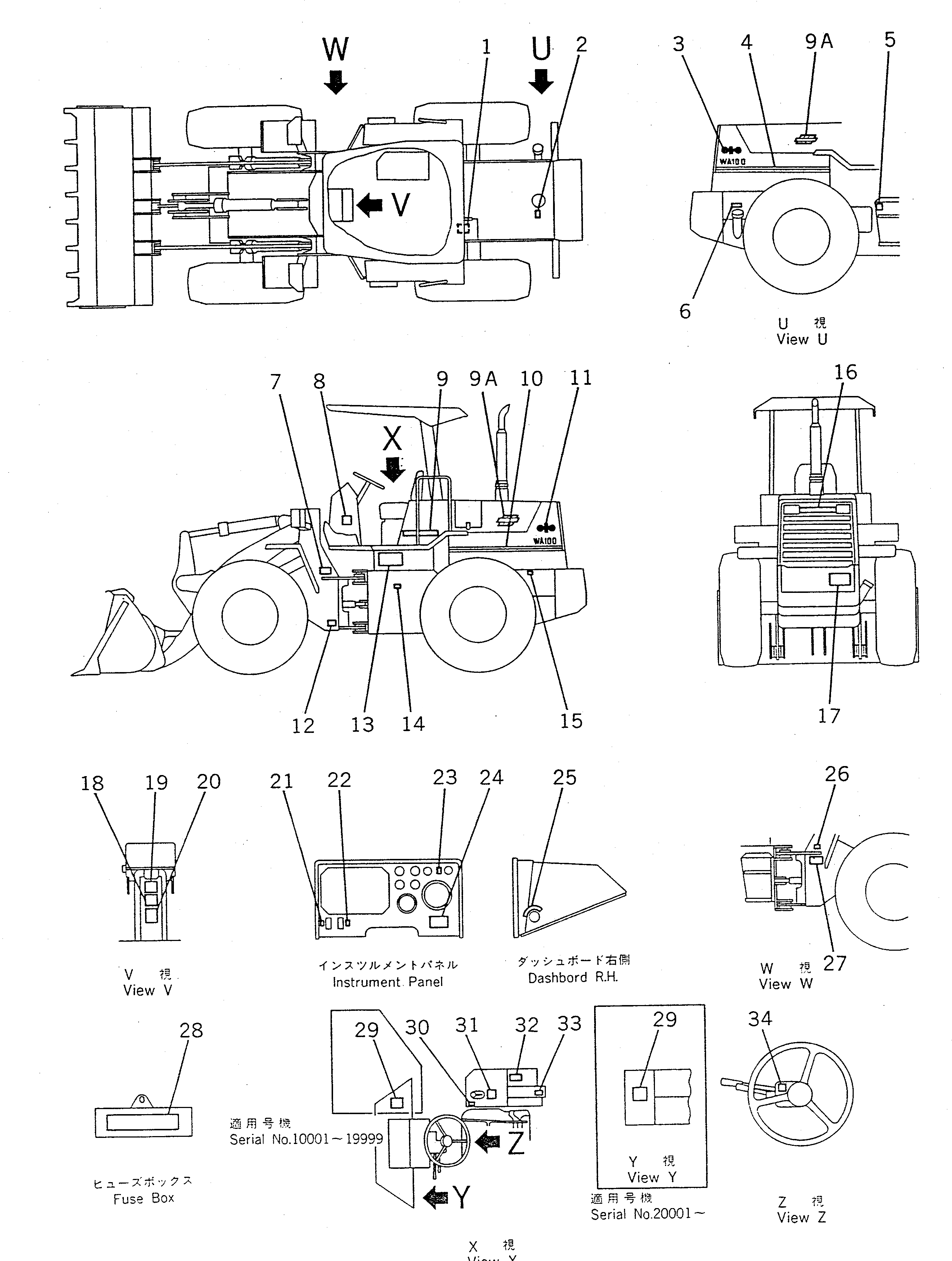

Запчасти Komatsu WA100-1 МАРКИРОВКА МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09637-00161

PLATE¤ INSTRUCTION

SN: 10001-UP

1шт.

2

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

3

416-93-11420

PLATE¤ MARK

SN: 10001-UP

1шт.

4

416-93-11430

STRIPE

SN: 10001-UP

1шт.

5

09653-00100

PLATE¤ SAFETY,HYDRAULIC

SN: 10001-UP

1шт.

6

362-54-17190

PLATE¤ CAUTION,FUEL

SN: 10001-UP

1шт.

7

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

1шт.

8

416-93-11121

PLATE¤ DATA

SN: 30001-UP

1шт.

|8

416-93-11120

PLATE¤ DATA

SN: 10001-29999

1шт.

9

417-93-11270

PLATE¤ MARK,AVANCE

SN: 30001-UP

2шт.

|9

417-93-11210

PLATE¤ MARK,KOMATSU

SN: 10001-29999

2шт.

9A

416-Z90-1621

PLATE¤ MARK

SN: 32001-UP

2шт.

10

416-93-11430

STRIPE

SN: 10001-UP

1шт.

11

416-93-11410

PLATE¤ MARK

SN: 10001-UP

1шт.

12

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-UP

2шт.

13

416-93-11116

CHART¤ OIL

SN: 20466-UP

1шт.

|13

0

CHART¤ OIL

SN: 20001-20465

1шт.

|13

416-93-11114

CHART¤ OIL

SN: .-19999

1шт.

|13

0

CHART¤ OIL

SN: 10001-.

1шт.

14

419-93-11210

PLATE¤ CAUTION,OIL INSPECTION

SN: 10001-UP

1шт.

15

362-54-17180

PLATE¤ CAUTION,FAN

SN: 10001-UP

1шт.

16

09690-50400

PLATE¤ MARK,KOMATSU

SN: 10001-UP

1шт.

17

417-93-11150

PLATE¤ CAUTION,BATTERY

SN: 10001-UP

1шт.

18

419-93-11220

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

19

421-93-11181

PLATE¤ SAFETY

SN: 10001-UP

1шт.

20

362-54-17150

PLATE¤ CAUTION,STARTING AND OPERATING

SN: 10001-UP

1шт.

21

416-93-11280

PLATE¤ OPERATING,PARKING LAMP SWITCH

SN: 20001-UP

1шт.

|21

416-93-11250

PLATE¤ OPERATING,PARKING LAMP SWITCH

SN: 10001-19999

1шт.

22

416-93-11260

PLATE¤ OPERATING,WORKING LAMP SWITCH

SN: 10001-UP

1шт.

23

416-93-11240

PLATE¤ OPERATING,LIGHT SWITCH

SN: 10001-UP

1шт.

24

424-93-11360

PLATE¤ OPERATING,WORK LAMP

SN: 10001-UP

1шт.

25

09683-01050

PLATE¤ OPERATING,STARTER SWITCH

SN: 10001-UP

1шт.

26

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

1шт.

27

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|27

04418-13060

SCREW

SN: 10001-UP

4шт.

28

417-93-11313

PLATE¤ INSTRUCTION,FUSE BOX

SN: 20001-UP

1шт.

|28

417-93-11312

PLATE¤ INSTRUCTION,FUSE BOX

SN: 11763-19999

1шт.

|28

417-93-11311

PLATE¤ INSTRUCTION,FUSE BOX

SN: 11095-11762

1шт.

|28

0

PLATE¤ INSTRUCTION,FUSE BOX

SN: 10001-11094

1шт.

29

417-93-11140

PLATE¤ OPERATING,MONITOR PANEL

SN: 10001-UP

1шт.

30

09685-00004

PLATE¤ OPERATING,LOCK LEVER

SN: 10001-UP

1шт.

31

417-93-11121

PLATE¤ OPERATING,LOADER CONTROL

SN: 10001-UP

1шт.

32

419-93-11190

PLATE¤ CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

33

362-54-17230

PLATE¤ CAUTION,HOSE CHANGE

SN: 10001-UP

1шт.

34

417-93-11131

PLATE¤ OPERATING,TRANSMISSION CONTROL

SN: 10001-UP

1шт.
