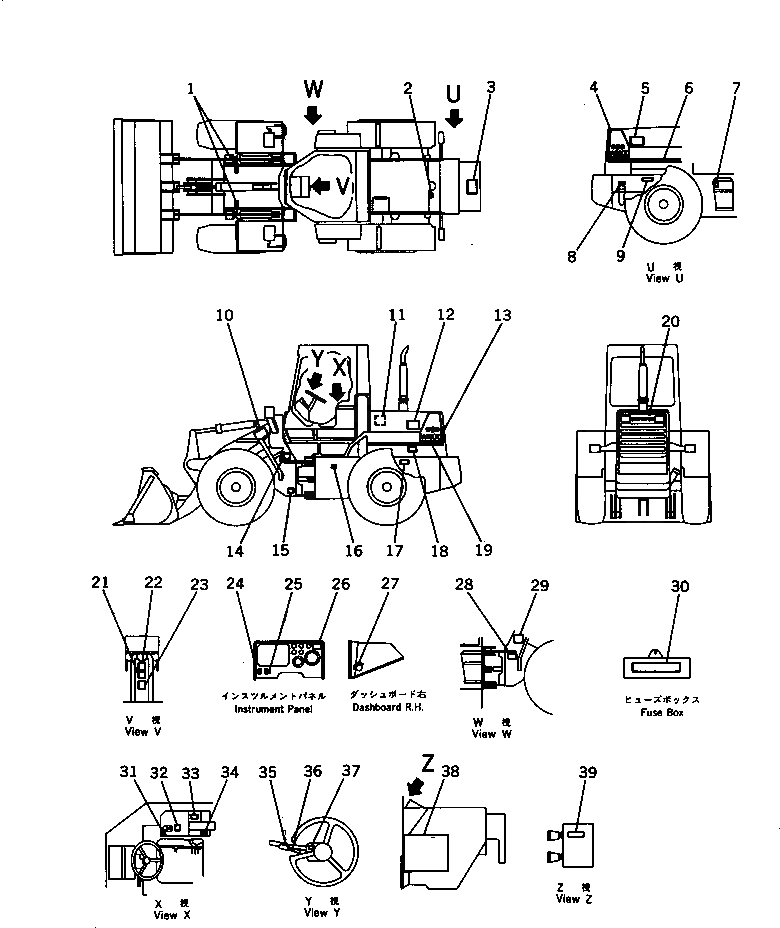

Запчасти Komatsu WA100-1 МАРКИРОВКА (TBG/ABE СПЕЦ-Я.) СПЕЦ. APPLICATION ЧАСТИ
№
Артикул
Название
Примечание
Количество
1
419-93-11930
PLATE, CAUTION
SN: 10001-UP
2шт.
2
09668-02000
PLATE, SAFETY,RADIATOR CAP
SN: 10001-UP
1шт.
3
416-93-11450
PLATE, CAUTION,BATTERY
SN: 10001-UP
1шт.
4
416-93-11420
PLATE, MARK
SN: 10001-UP
1шт.
5
419-93-11950
PLATE, CAUTION,KEEP OUT
SN: 20001-UP
1шт.
5
20T-98-22240
PLATE, SAFETY,KEEP OUT
SN: 10001-19999
1шт.
6
416-93-11430
STRIPE
SN: 10001-UP
1шт.
7
09653-02000
PLATE, SAFETY,HYDRAULIC
SN: 10001-UP
1шт.
8
09101-02000
PLATE, CAUTION,FUEL
SN: 10001-UP
1шт.
9
419-93-11930
PLATE, CAUTION
SN: 10001-UP
1шт.
10
419-93-11950
PLATE, CAUTION,KEEP OUT
SN: 20001-UP
2шт.
10
20T-98-22240
PLATE, SAFETY,KEEP OUT
SN: 10001-19999
2шт.
11
09637-81161
PLATE, INSTRUCTION
SN: 10001-UP
1шт.
12
419-93-11950
PLATE, CAUTION,KEEP OUT
SN: 20001-UP
1шт.
12
20T-98-22240
PLATE, SAFETY,KEEP OUT
SN: 10001-19999
1шт.
13
416-93-11410
PLATE, MARK
SN: 10001-UP
1шт.
14
362-98-11620
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
1шт.
15
362-98-11160
PLATE, CAUTION,FRAME LOCK
SN: 10001-UP
1шт.
16
419-93-11541
PLATE, CAUTION,OIL INSPECTION
SN: 10001-UP
1шт.
17
419-93-11930
PLATE, CAUTION
SN: 10001-UP
1шт.
18
20T-98-22330
PLATE, SAFETY,FAN BELT
SN: 10001-UP
2шт.
19
416-93-11430
STRIPE
SN: 10001-UP
1шт.
20
09690-50400
PLATE, MARK,KOMATSU
SN: 10001-UP
1шт.
21
419-93-11531
PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE
SN: 10001-UP
1шт.
22
419-93-11521
PLATE, SAFETY
SN: 11275-UP
1шт.
22
0
PLATE, SAFETY
SN: 10001-11274
1шт.
23
362-98-11150
PLATE, CAUTION,STARTING AND INSPECTION
SN: 10001-UP
1шт.
24
417-93-11540
PLATE, OPERATING,PARKING LAMP SWITCH
SN: 10001-UP
1шт.
25
417-93-11550
PLATE, OPERATING,WORKING LAMP SWITCH
SN: 10001-UP
1шт.
26
417-93-11531
PLATE, OPERATING,LIGHT SWITCH
SN: 10001-UP
1шт.
27
09683-21050
PLATE, OPERATING,STARTER SWITCH
SN: 10001-UP
1шт.
28
09602-25635
PLATE, NAME,(LIMITED SUPPLY)
SN: 20001-UP
1шт.
28
09602-23635
PLATE, NAME,(LIMITED SUPPLY)
SN: 10001-19999
1шт.
29
362-98-11620
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
1шт.
30
417-93-11523
PLATE,FUSE BOX
SN: 20001-UP
1шт.
30
417-93-11520
PLATE,FUSE BOX
SN: 10001-19999
1шт.
31
09685-00004
PLATE, OPERATING,LOCK LEVER
SN: 10001-UP
1шт.
32
417-93-11121
PLATE, OPERATING,LOADER CONTROL
SN: 10001-UP
1шт.
33
419-93-11571
PLATE, CAUTION,BRAKE OIL
SN: 10001-UP
1шт.
34
416-93-11350
PLATE,FUSE BOX
SN: 10001-UP
1шт.
35
417-93-11170
PLATE
SN: 10001-UP
1шт.
36
417-93-11160
PLATE
SN: 10001-UP
1шт.
37
417-93-11131
PLATE, OPERATING,TRANSMISSION CONTROL
SN: 10001-UP
1шт.
38
416-93-11512
CHART, OIL
SN: 20001-UP
1шт.
38
416-93-11511
CHART, OIL
SN: 10001-19999
1шт.
39
416-93-11520
PLATE,FUSE BOX
SN: 10001-UP
1шт.
Выбрано товаров: 47
