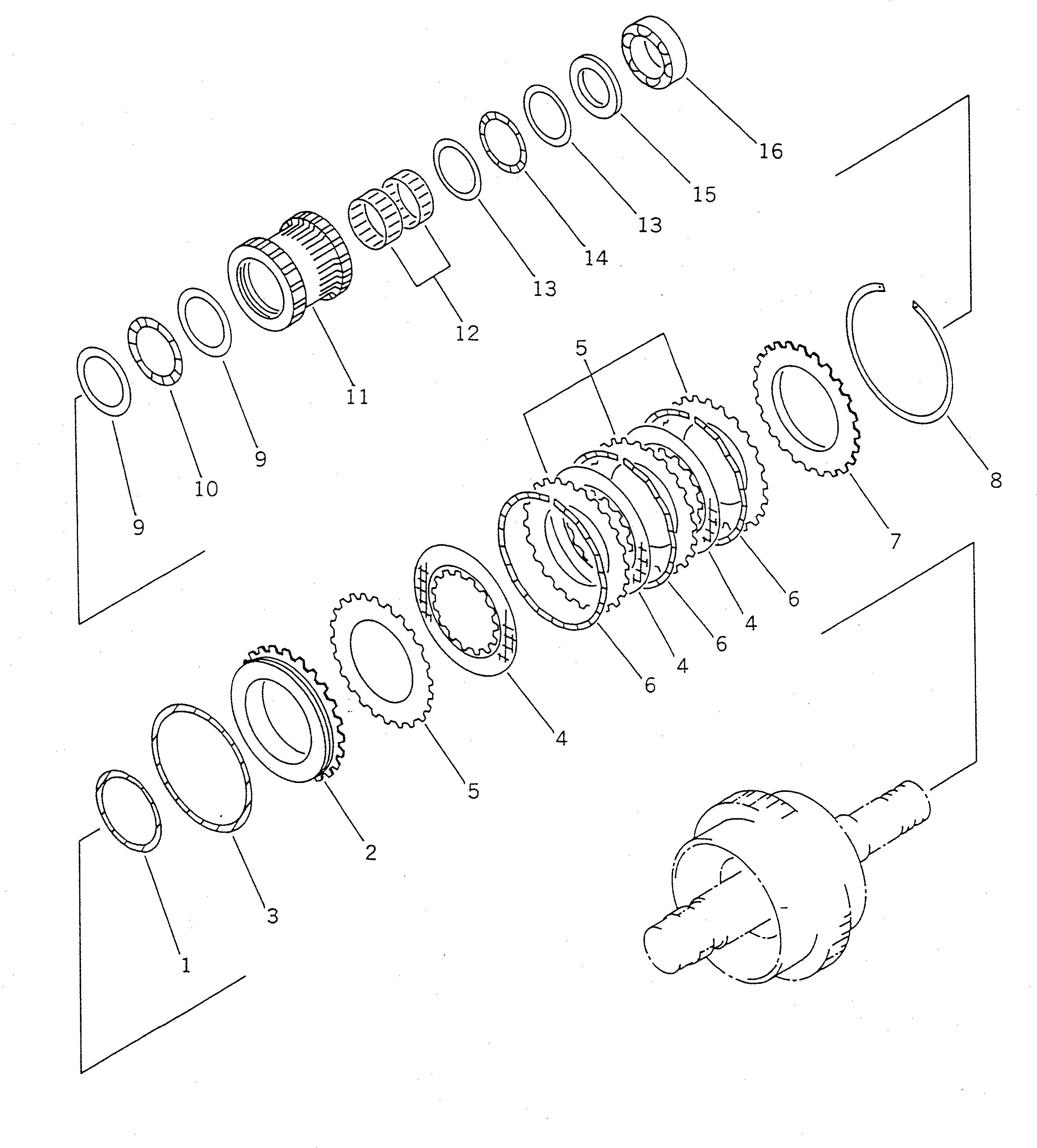

Запчасти Komatsu WA100-1 3 МУФТА (TBG/ABE СПЕЦ-Я.)(№-) СПЕЦ. APPLICATION ЧАСТИ

|$0

416-15-11011

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$1

416-15-13102

CLUTCH ASS'Y,2ND AND 3RD

SN: 20001-UP

1шт.

1

419-15-12210

RING,SEAL (KIT)

SN: 10001-UP

1шт.

2

419-15-13191

PISTON

SN: 10001-UP

1шт.

3

419-15-12580

RING,SEAL (KIT)

SN: 10001-UP

1шт.

4

419-15-12290

DISC

SN: 10001-UP

3шт.

5

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

4шт.

6

56D-15-12710

SPRING,WAVE

SN: 39398-UP

3шт.

6

0

SPRING,WAVE

SN: 20001-39397

3шт.

7

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

9

419-15-12680

WASHER,THRUST

SN: 10001-UP

2шт.

10

419-15-12670

BEARING,THRUST

SN: 10001-UP

1шт.

11

417-15-13231

GEAR, 21 TEETH,3RD

SN: 20001-UP

1шт.

12

419-15-12270

BEARING

SN: 10001-UP

2шт.

13

419-15-12240

WASHER,THRUST

SN: 10001-UP

2шт.

14

419-15-12250

BEARING,THRUST

SN: 10001-UP

1шт.

15

419-15-12330

SPACER

SN: 10001-UP

1шт.

16

06030-06210

BEARING

SN: 10001-UP

1шт.
