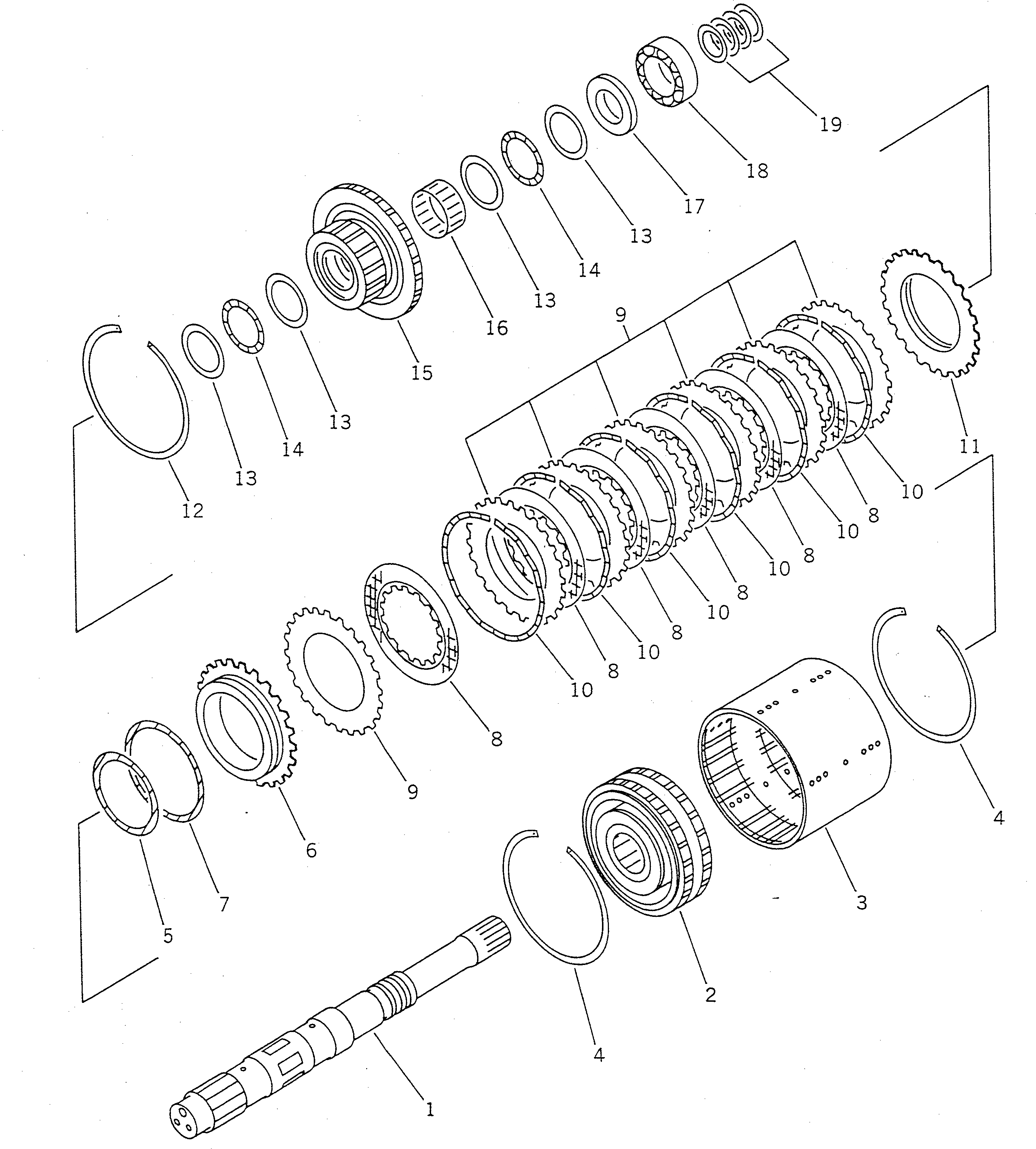

Запчасти Komatsu WA100-1 ПЕРЕД. МУФТА (TBG/ABE СПЕЦ-Я.)(№-) СПЕЦ. APPLICATION ЧАСТИ

|$0

416-15-11011

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$1

416-15-12101

CLUTCH ASS'Y,FORWARD AND REVERSE

SN: 20001-UP

1шт.

|$2

417-15-12310

SHAFT ASS'Y

SN: 20001-UP

1шт.

1

0

SHAFT

SN: 20001-UP

1шт.

2

0

CYLINDER

SN: 20001-UP

1шт.

3

416-15-12131

HOUSING

SN: 20001-UP

1шт.

4

419-15-12140

RING,SNAP

SN: 20001-UP

2шт.

5

419-15-12210

RING,SEAL (KIT)

SN: 20001-UP

1шт.

6

419-15-12221

PISTON

SN: 20001-UP

1шт.

7

419-15-12190

RING,SEAL (KIT)

SN: 20001-UP

1шт.

8

419-15-12290

DISC

SN: 20001-UP

6шт.

9

419-15-12310

PLATE,SEPARATE

SN: 20001-UP

7шт.

10

56D-15-12710

SPRING,WAVE

SN: 39398-UP

6шт.

10

0

SPRING,WAVE

SN: 20001-39397

6шт.

11

419-15-12280

PLATE,END

SN: 20001-UP

1шт.

12

419-15-12140

RING,SNAP

SN: 20001-UP

1шт.

13

419-15-12240

WASHER,THRUST

SN: 20001-UP

4шт.

14

419-15-12250

BEARING,THRUST

SN: 20001-UP

2шт.

15

417-15-12231

GEAR, 38 TEETH

SN: 20001-UP

1шт.

16

419-15-12270

BEARING

SN: 20001-UP

1шт.

17

419-15-12330

SPACER

SN: 20001-UP

1шт.

18

06030-06210

BEARING

SN: 20001-UP

1шт.

19

419-15-12121

RING,SEAL

SN: 20001-UP

4шт.
