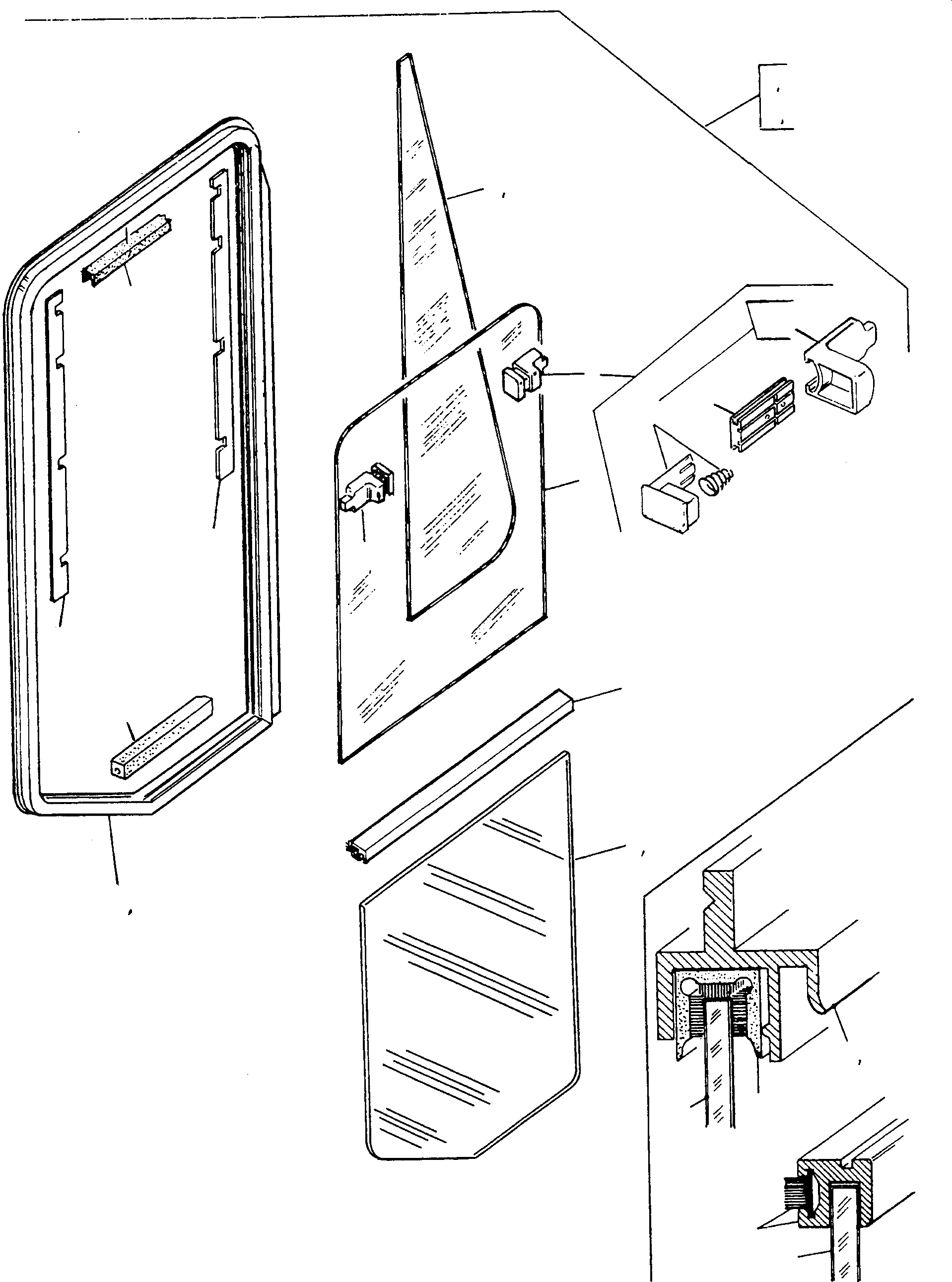

Запчасти Komatsu 60E SLIDING ОКНА, EXECUTION I ШАССИ И SUPERSTRUCTURE

1

4201360M91

SLIDING WINDOW

SN: 376120821

1шт.

1A

4202869M91

SLIDING WINDOW

EnglischBem: LEFT,EXECUTION GREEN GLASS

1шт.

2

4201361M91

SLIDING WINDOW

SN: 376120821

1шт.

2A

4202870M91

SLIDING WINDOW

SN: 376120821

1шт.

3

WINDOW FRAME

EnglischBem: ORDER 4201 360 M91 NOTE: Pos. (3) included in Pos. (1) and (2) K

1шт.

3A

WINDOW FRAME

EnglischBem: ORDER 4202 869 M91 ORDER 4202 870 M91 NOTE: Pos. (3A) included i

1шт.

4

3235610M1

GLASS PANE

EnglischBem: EXECUTION BRONCE GLASS NOTE: Pos. (4) included in Pos. (1) and (

1шт.

4A

4917594M1

GLASS PANE

EnglischBem: EXECUTION GREEN GLASS NOTE: Pos. (4A) included in Pos. (1A) and

1шт.

5

3235611M1

GLASS PANE

EnglischBem: EXECUTION BRONCE GLASS NOTE: Pos. (5) included in Pos. (1) and (

1шт.

5A

4917595M1

GLASS PANE

EnglischBem: EXECUTION GREEN GLASS NOTE: Pos. (5A) included in Pos. (1A) and

1шт.

6

3235612M91

GLASS PANE

EnglischBem: EXECUTION BRONCE GLASS NOTE: Pos. (6) included in Pos. (1) and (

1шт.

6A

4917596M91

GLASS PANE

EnglischBem: EXECUTION GREEN GLASS WITH PLATE NOTE: Pos. (6A) included in Pos

1шт.

7

3252453M91

GRIP

EnglischBem: NOTE: Pos. (7) included in Pos. (1) and (2) Kit

2шт.

7A

4202721M91

GRIP

DeutschDesc: GRIFF

2шт.

7B

3232485M1

EXCLUDER

DeutschDesc: SPERRE

2шт.

7C

4919601M1

PLATE

DeutschDesc: PLATTE

2шт.

8

3235614M1

PROFILE

EnglischBem: NOTE: Pos. (8) included in Pos. (1) and (2) Kit

1шт.

9

3235614M1

PROFILE

EnglischBem: REPAIRS AND REPLACES 3235 615 M1 NOTE: Pos. (9) included in Pos.

1шт.

10

3235613M91

SLAT

EnglischBem: NOTE: Pos. (10) included in Pos. (1) and (2) Kit

1шт.

11

3228176M1

PROFILE

EnglischBem: GOODS SOLD BY THE METER 2200 MM NOTE: Pos. (11) included in Pos.

-26шт.

12

3252458M1

PROFILE

EnglischBem: GOODS SOLD BY THE METER 3252 464 M1 450 MM NOTE: Pos. (12) inclu

1шт.
